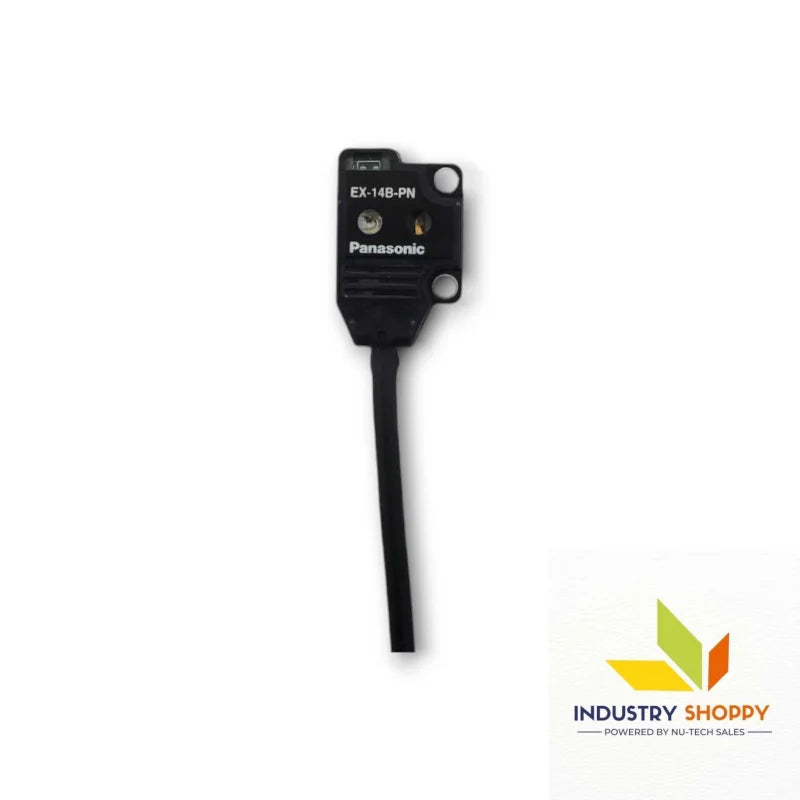

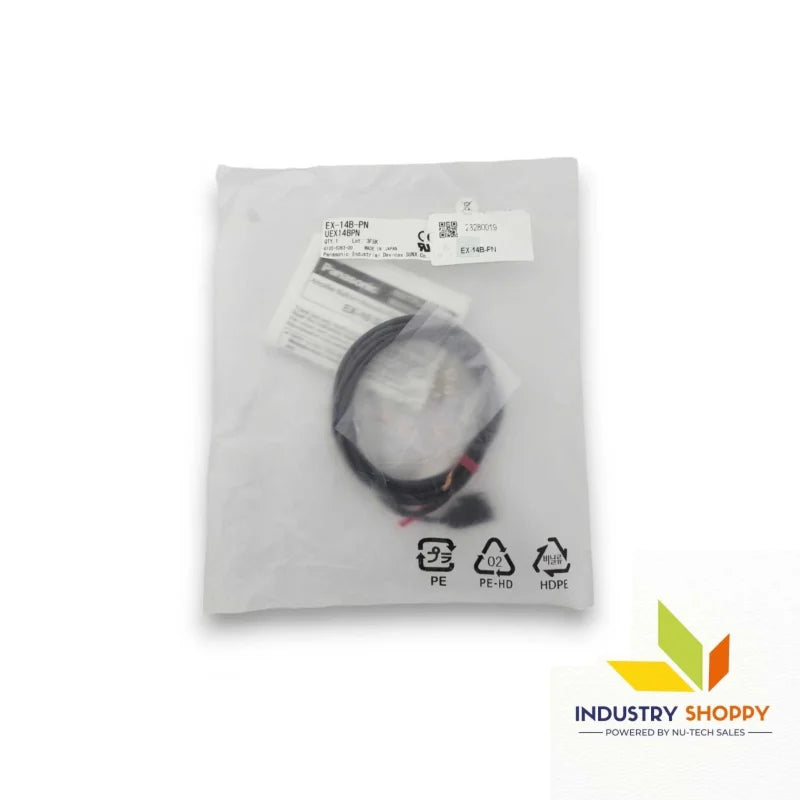

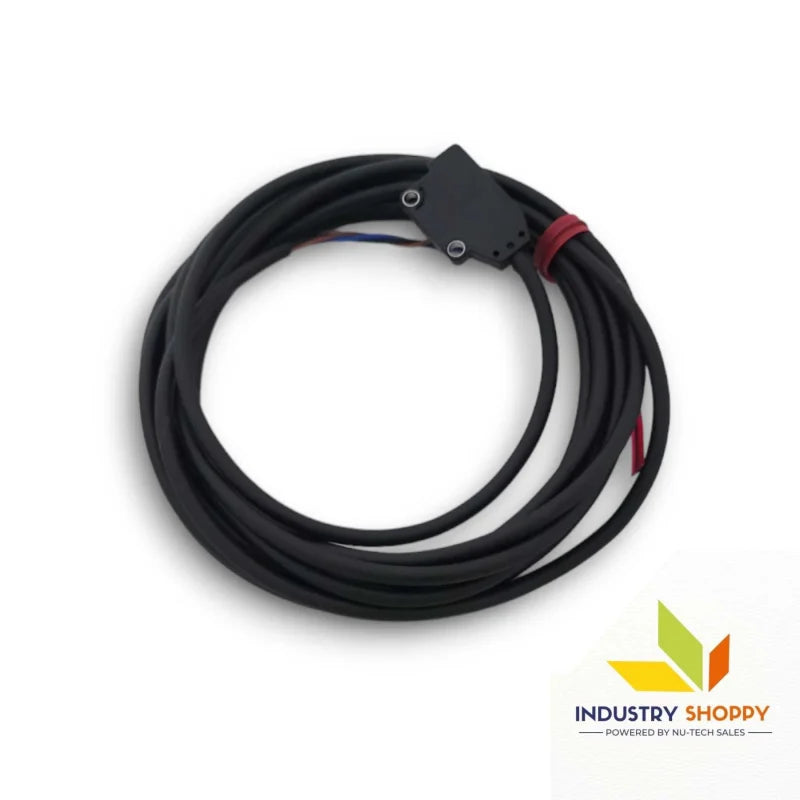

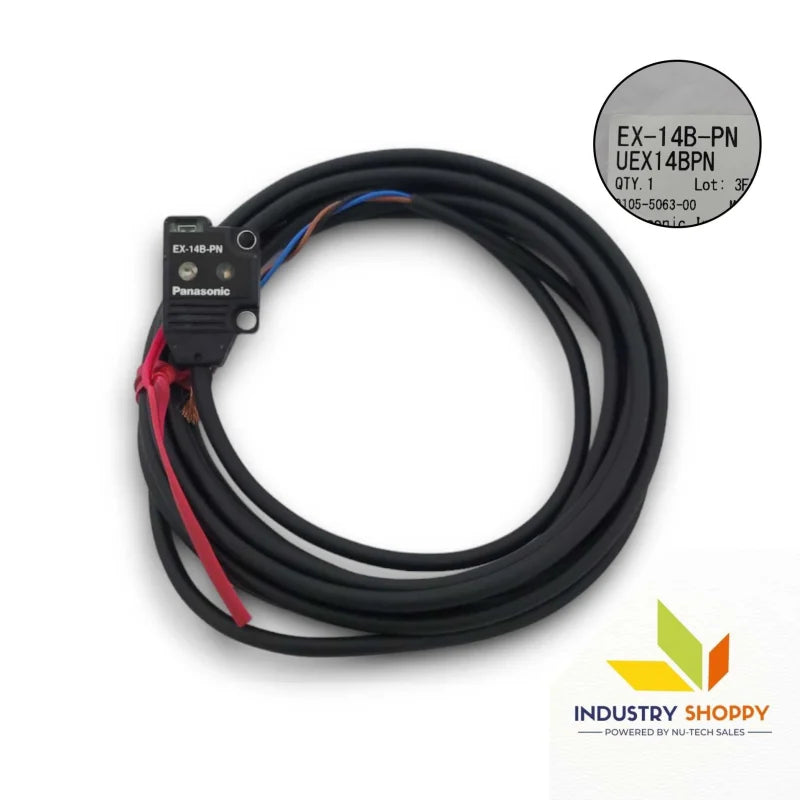

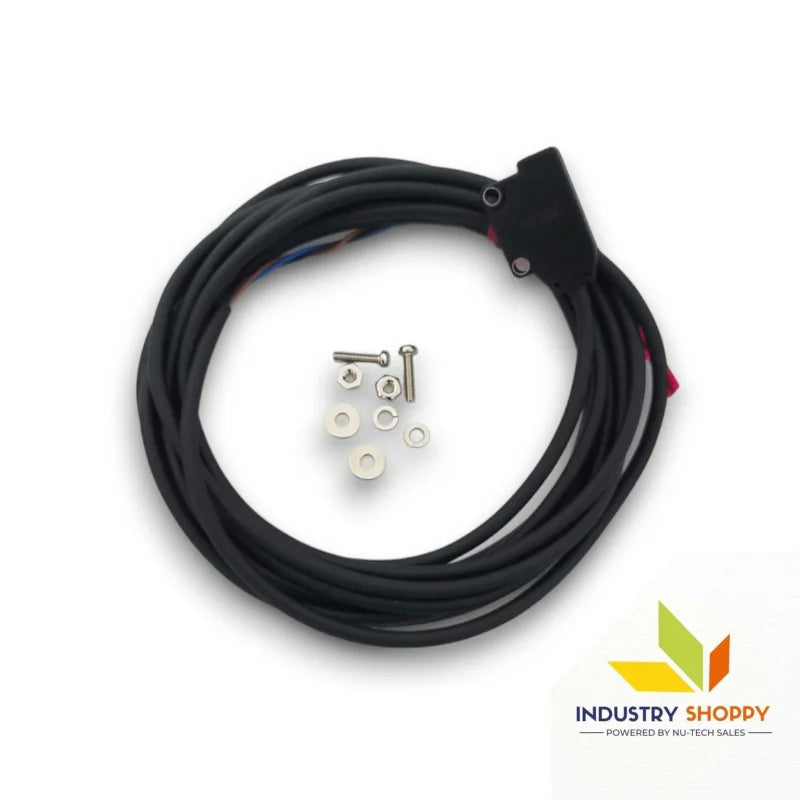

Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic EX-14B-PN Photoelectric Sensor
Panasonic

Panasonic EX-14B-PN Photoelectric Sensor

Product SKU: NTSSEN00083
Available:
Only 7 items in stock
7 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UEX14BPN
  • Type
:  Photoelectric Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$65.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic EX-14B-PN Photoelectric Sensor

The Panasonic EX-14B-PN Photoelectric Sensor (Part Number: UEX14BPN) is a compact photoelectric sensor designed for precision and high reliability in a variety of industrial environments. With a sensing range from 2 mm to 25 mm (0.079 to 0.984 inches), it is ideal for detecting small objects such as ø0.1 mm (0.004 inches) copper wires when completely beam interrupted. This sensor is equipped with PNP open-collector transistor output, offering a maximum source current of 50 mA and short-circuit protection to ensure safety in demanding environments.

The  Panasonic EX-14B-PN Photoelectric Sensor features a response time of 0.5 ms or less, ensuring fast and accurate detection. Its IP67 protection rating makes it resistant to dust and water, while its wide operating temperature range of -25°C to +55°C (-13°F to +131°F) ensures dependable performance in extreme conditions. The sensor also includes green and orange LED indicators, providing visual feedback for operation status and stability.

Key features :-

Brand Panasonic
Product name EX-14B-PN
Part Number UEX14BPN
Item Performance characteristics
CE Marking Directive Compliance ・EMC Directive ： EN 60947-5-2\
・RoHS Directive
・ISO 13849-1 (Category 1, PLc) (Note)
(Note) : Conformed from December 2021 production.
Sensing Range 2 to 25 mm 0.079 to 0.984 in (Conv. point: 10 mm 0.394 in)
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object.
Min. Sensing Object ø0.1 mm ø0.004 in copper wire (Completely beam interrupted object) (Setting distance: 10 mm 0.394 in)
Hysteresis 15 % or less of operation distance
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object.
Repeatability (Perpendicular to Sensing Axis) 0.1 mm 0.004 in or less
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption 13 mA or less
Output PNP open-collector transistor
- Maximum source current: 50 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
Output: Utilization Category DC-12 or DC-13
Output: Short-Circuit Protection Incorporated
Response Time 0.5 ms or less
Operation Indicator Orange LED (lights up when the output is ON)
Incident Beam Indicator -
Stability Indicator Green LED (lights up under stable light received condition or stable dark condition)
Pollution Degree 3 (Industrial environment)
Protection IP67 (IEC)
Ambient Temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated)
Material Enclosure: Polyethylene terephthalate
Lens: Polyalylate
Cable 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.
(Note) : For safety applications, do not exceed 30 m 98.425 ft.



Applications :-

  • Automation Systems: Ideal for automated manufacturing and assembly lines requiring small object detection.
  • Wire and Cable Production: Perfect for wire detection, especially in applications where small copper wires need to be detected with high precision.
  • Packaging Machinery: Suitable for packaging lines where precise object detection and quick response times are critical.
  • Quality Control: Can be used for quality inspection in various production environments, ensuring that components are correctly positioned or moved.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
