Panasonic EX-14A-PN Photoelectric Sensor

Panasonic EX-14A-PN Photoelectric Sensor

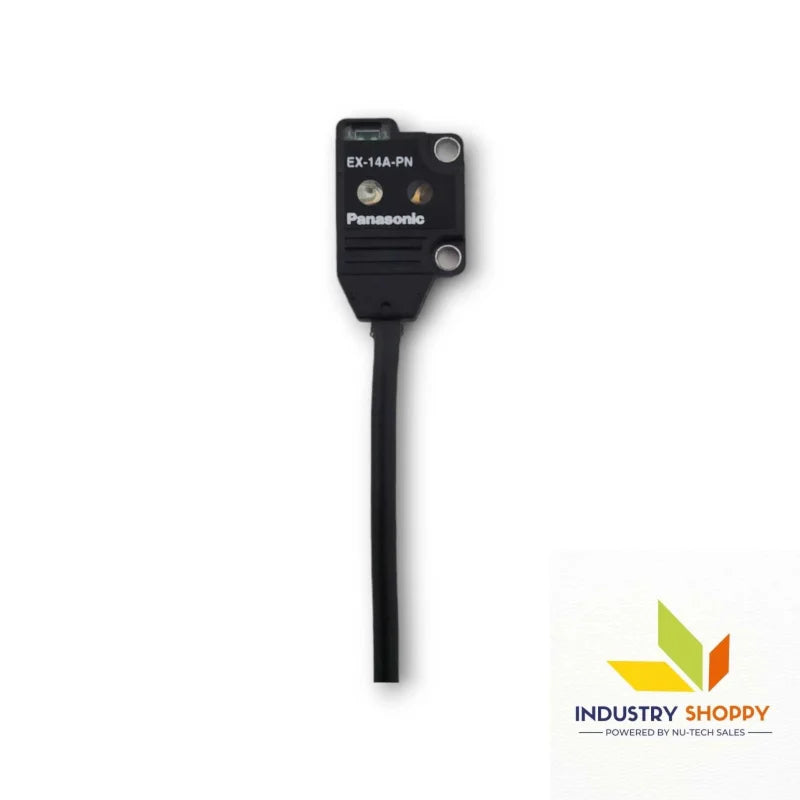

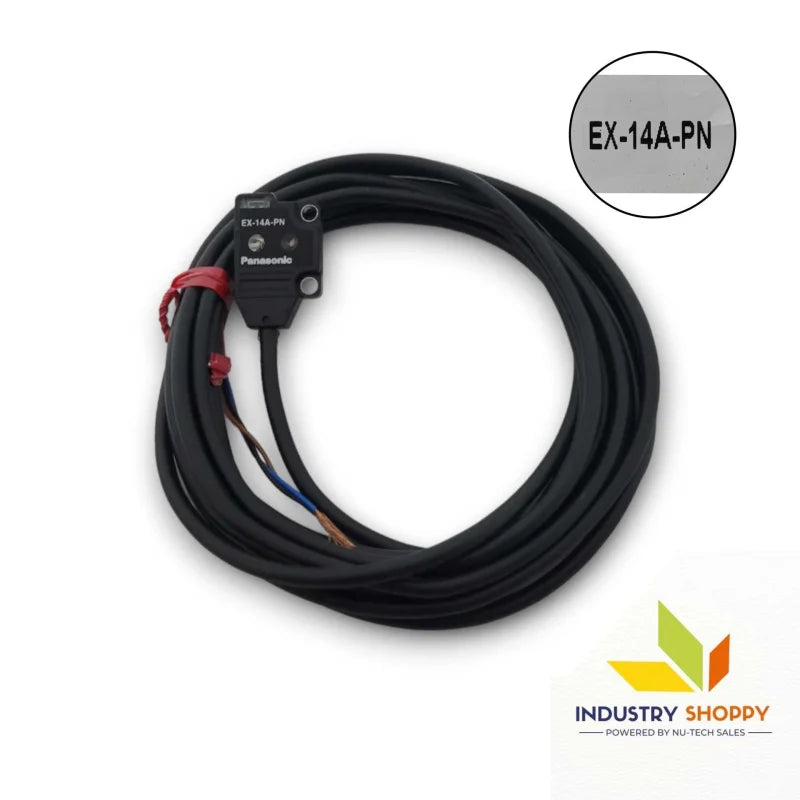

The Panasonic EX-14A-PN (Part Number: UEX14APN) is a highly reliable photoelectric sensor designed for precision and efficiency in industrial applications. It offers a sensing range from 2 mm to 25 mm (0.079 to 0.984 inches), with an optimal detection distance of 10 mm (0.394 inches). It can detect small objects like ø0.1 mm (0.004 inches) copper wire when the beam is completely interrupted. This model provides an output type of PNP open-collector transistor, with a maximum source current of 50 mA and built-in short-circuit protection.

The EX-14A-PN features rapid response times of 0.5 ms or less, making it perfect for high-speed detection. With an IP67 protection rating, it is dust-tight and resistant to water, making it ideal for harsh environments. The ambient temperature range is -25°C to +55°C (-13°F to +131°F), ensuring dependable performance in a variety of working conditions. Additionally, green and orange LED indicators are included to display the operation status and stability.

Key features :-

Applications :-

• Automation Systems: Ideal for use in automated manufacturing lines that require precise and fast object detection.
• Wire and Cable Production: Perfect for wire detection in environments where small objects like copper wires need to be detected with high precision.
• Quality Control: Can be employed in quality inspection systems to ensure parts are correctly positioned or moved during production processes.
• Packaging and Assembly: Suitable for use in packaging and assembly machines where small, precise object detection is critical.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
