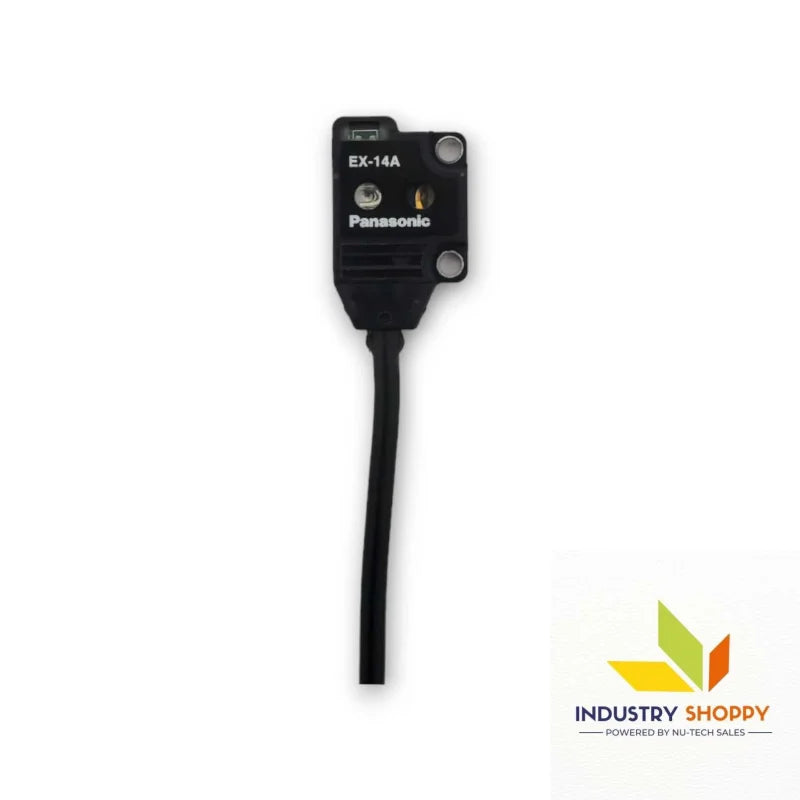

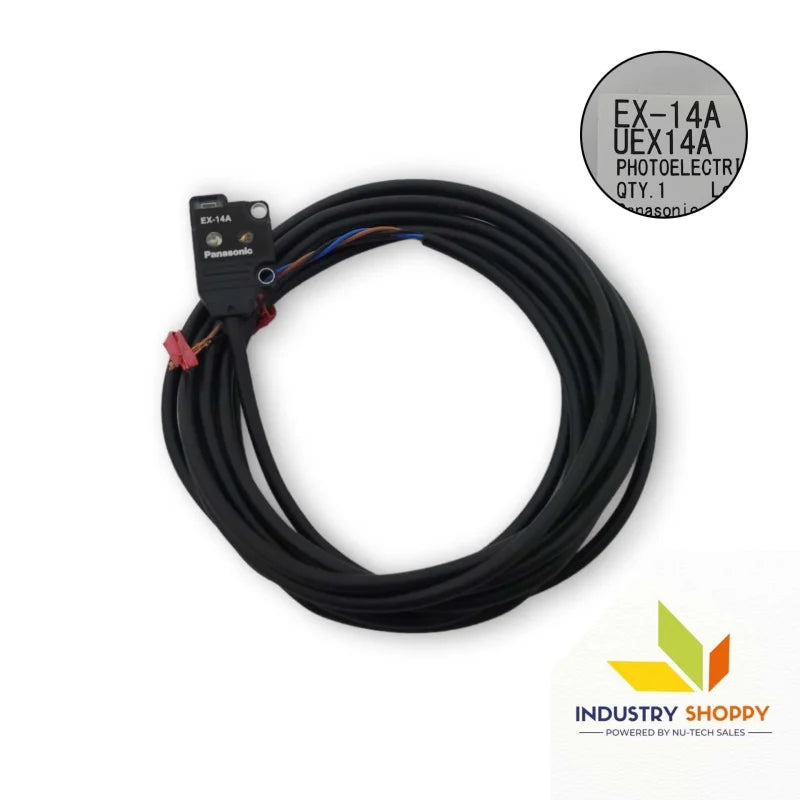

Panasonic EX-14A Photoelectric Sensor

Panasonic EX-14A Photoelectric Sensor

The Panasonic EX-14A (Part Number: UEX14A) is a reliable photoelectric sensor that offers superior performance in industrial applications where precise object detection is essential. It provides a sensing range from 2 mm to 25 mm (0.079 to 0.984 inches), with 10 mm (0.394 inches) as the optimal detection point. This model is capable of detecting even the smallest objects, such as a ø0.1 mm (0.004 in) copper wire, when the beam is completely interrupted. The hysteresis is maintained at 15% or less of the operational distance for consistent performance.

The EX-14A comes with NPN open-collector transistor output, with a maximum sink current of 50 mA and built-in short-circuit protection. It operates with a 12 to 24 V DC supply voltage, ensuring versatility in various industrial environments. The response time is 0.5 ms or less, enabling fast and accurate detection.

With an IP67 rating, the sensor is dust-tight and waterproof, making it suitable for use in harsh environments. The ambient temperature range of -25°C to +55°C (-13°F to +131°F) ensures the sensor performs reliably in diverse conditions. Green and orange LED indicators signal the operation status and stability for clear visual feedback.

Key features :-

Applications :-

• Automation: Ideal for automated systems where precise and reliable detection of small objects is crucial.
• Quality Control: Perfect for ensuring the quality of products in manufacturing or assembly lines by detecting any discrepancies in object placement.
• Wire Detection: Suitable for environments where fine wires, such as copper wires, need to be detected with high accuracy.
• Industrial Environments: Excellent for harsh environments due to its IP67 protection rating, offering durability in challenging conditions.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
