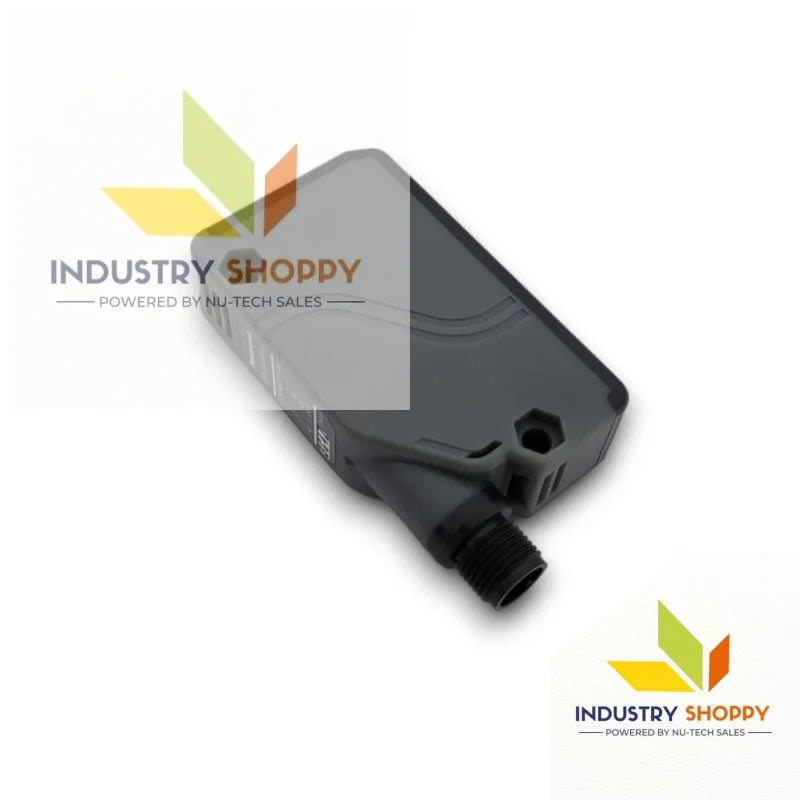

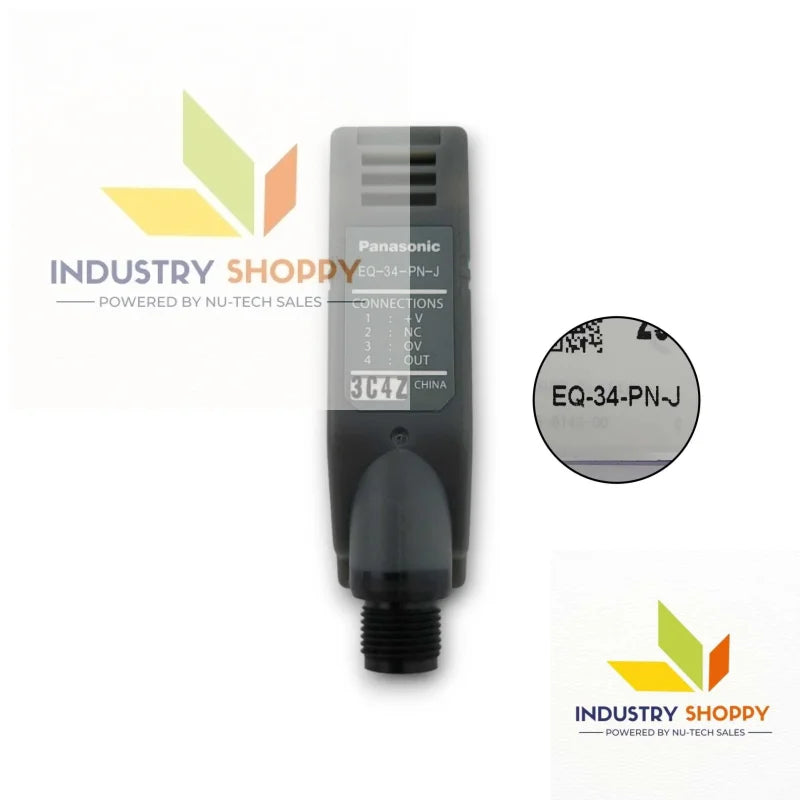

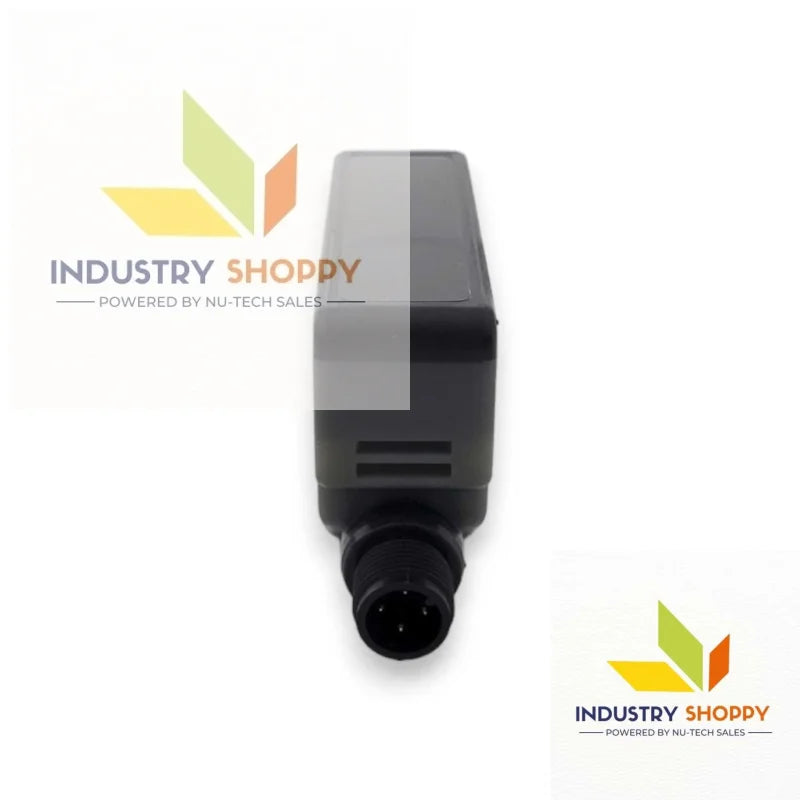

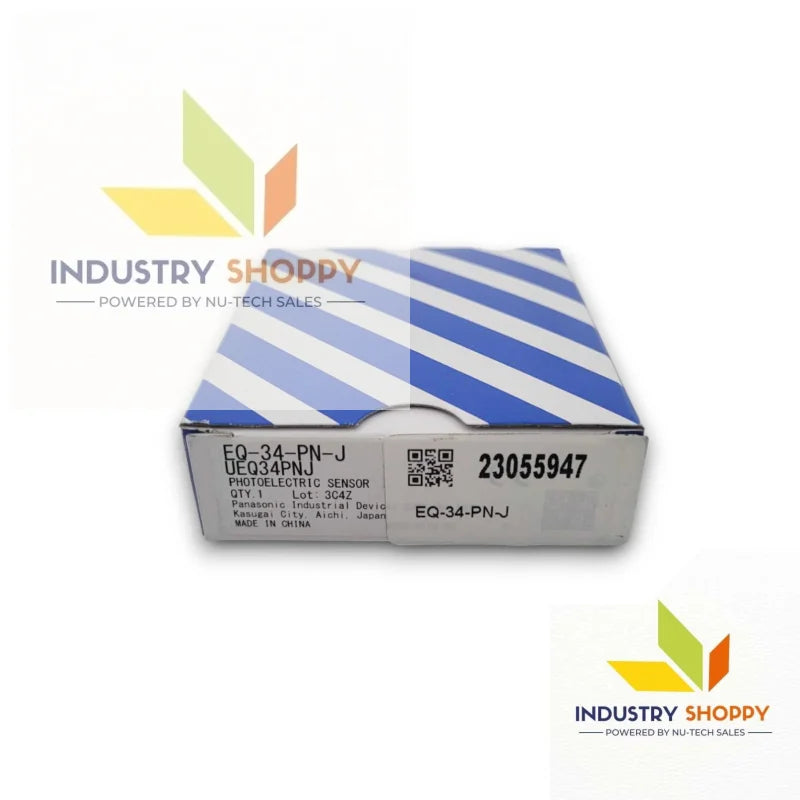

Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic EQ-34-PN-J Photoelectric Sensor
Panasonic

Panasonic EQ-34-PN-J Photoelectric Sensor

Product SKU: NTSSEN00081
Available:
Only 102 items in stock
102 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UEQ34PNJ
  • Type
:  Photoelectric Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$149.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic EQ-34-PN-J Photoelectric Sensor

The Panasonic EQ-34-PN-J Photoelectric Sensor (Part Number: UEQ34PNJ) is a versatile and reliable photoelectric sensor designed for precise object detection in a variety of industrial applications. With an adjustable sensing range of 0.2 to 2 m (0.656 to 6.562 ft), it offers flexibility for different detection requirements. The sensing range with white non-glossy paper at a setting distance of 2 m is between 0.1 to 2 m (0.328 to 6.562 ft), making it suitable for a wide range of materials and environments.

This sensor utilizes an infrared LED emitting at a peak wavelength of 880 nm and provides high accuracy with a repeatability of 10 mm (0.394 in) along the sensing axis and 1 mm (0.039 in) perpendicular to the axis. The sensor is equipped with a PNP open-collector transistor output, with a maximum source current of 100 mA, ensuring reliable signaling in various industrial control systems. Additionally, it includes an automatic interference prevention function for stable operation in complex environments.

The Panasonic EQ-34-PN-J Photoelectric Sensor sensor features IP67 protection and is capable of withstanding harsh conditions with a wide ambient temperature range from -20°C to +55°C (-4°F to +131°F) and humidity from 35% to 85% RH. Its vibration and shock resistance provide durability even in high-impact environments.

Key features :-

Brand Panasonic
Product name EQ-34-PN-J
Part Number UEQ34PNJ
Series EQ
Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Adjustable Range 0.2 to 2 m 0.656 to 6.562 ft
(Note) The adjustable range stands for the maximum sensing range which can be set with the adjuster.
The sensor can detect an object 0.1 m 0.328 ft, or more, away.
Sensing Range (With White Non-Glossy Paper at Setting Distance 2 m 6.562 ft) 0.1 to 2 m 0.328 to 6.562 ft
Hysteresis 10 % or less of operation distance (With white non-glossy paper)
Repeatability Along sensing axis: 10 mm 0.394 in or less, Perpendicular to sensing axis: 1 mm 0.039 in or less (with white non-glossy paper)
Brand 10 to 30 V DC Ripple P-P 10 % or less
Product name 55 mA or less
Part Number PNP open-collector transistor
- Maximum source current: 100 mA
- Applied voltage: 30 V DC or less (between output and + V)
- Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current)
Series DC-12 or DC-13
Item Switchable either Detection-ON or Detection-OFF
CE Marking Directive Compliance Incorporated
Adjustable Range 2 ms or less
Sensing Range (With White Non-Glossy Paper at Setting Distance 2 m 6.562 ft) Red LED (lights up when the output is ON)
Hysteresis Green LED (lights up under stable light received condition or stable dark condition)

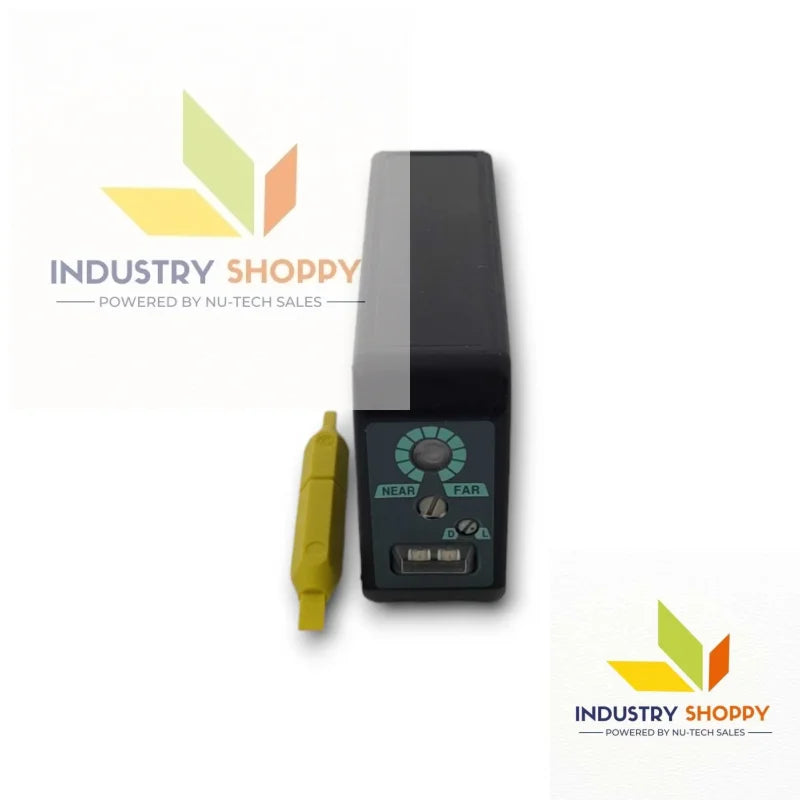

Repeatability 2-turn mechanical adjuster with pointer
Automatic Interference Prevention Function Incorporated
(Note) Detection may become unstable depending on the setting conditions or the sensing objects. After setting up this product, make sure to check operations using actual sensing objects.
Pollution Degree 3 (Industrial environment)
Protection IP67 (IEC)
Ambient Temperature -20 to +55 ℃ -4 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +70 ℃ -13 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 880 nm 0.035 mil, modulated)
Material Enclosure: Polyalylate and Polyethylene terephthalate
Lens: Polyalylate
Cable 0.3 mm2 3-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Material Handling: Detects objects on conveyors and automated material handling systems.
  • Industrial Automation: Ideal for use in production lines for part detection and quality control.
  • Packaging Systems: Detects products or packages for sorting and placement.
  • Robotics: Used in robotic arms for object detection and manipulation.
  • General Industrial Applications: Works well in environments with varying ambient conditions and where precise object detection is needed.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
