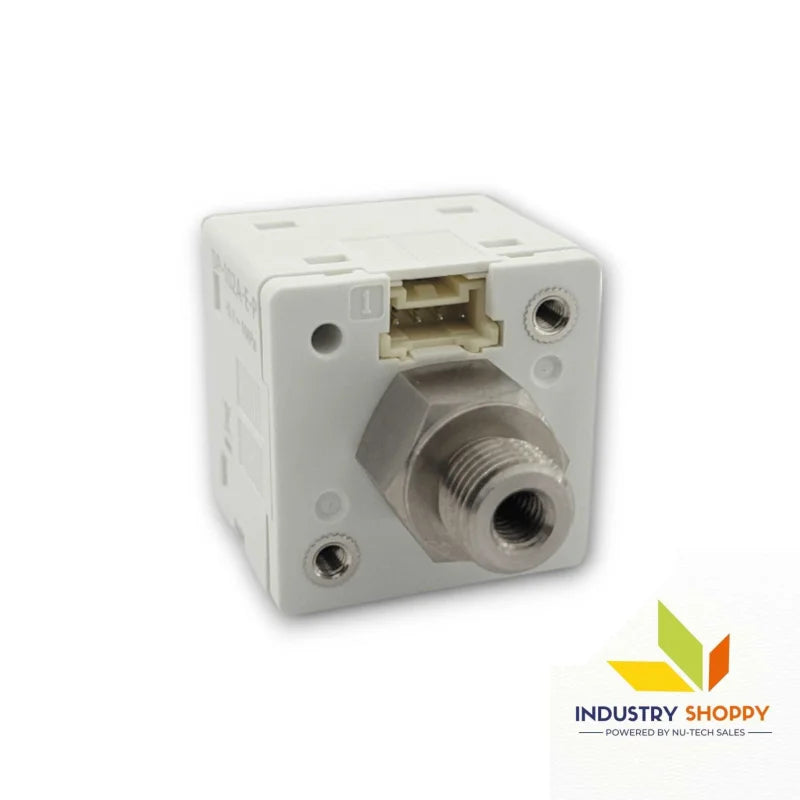

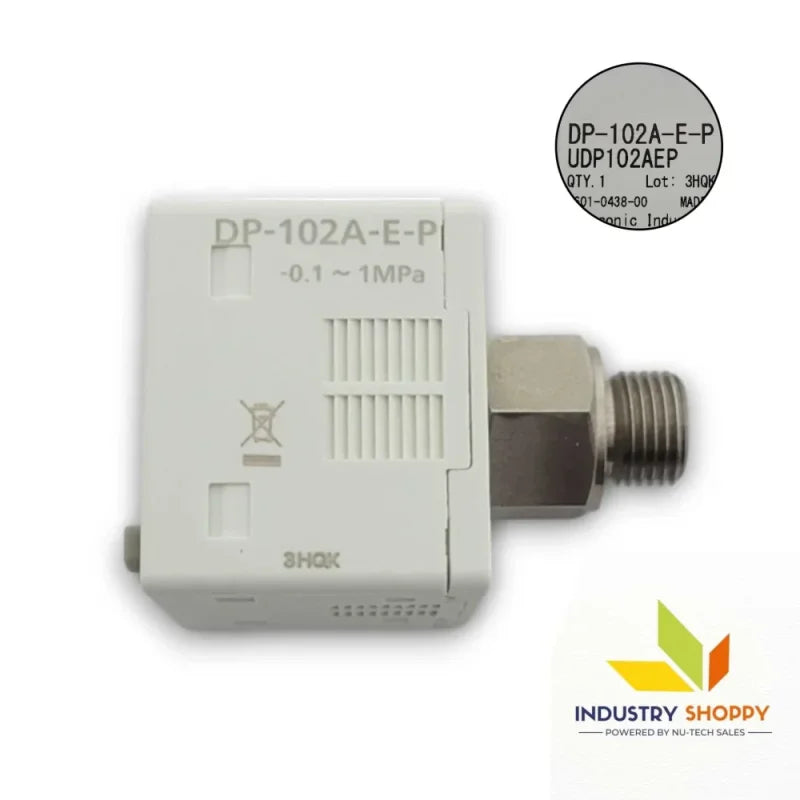

Panasonic DP-102A-E-P Digital Pressure Sensor

The Panasonic DP-102A-E-P Digital Pressure Sensor (Part Number: DP102AEP) is a highly accurate and reliable gauge pressure sensor designed to measure non-corrosive gases across a broad pressure range. With a rated pressure range of -0.100 to +1.000 MPa, and a set pressure range of -0.101 to +1.010 MPa, this sensor provides high precision for industrial applications. It features a 4-digit LCD display with 3-color indicators for easy reading of pressure data, and it includes multiple output modes, including NO/NC (selectable by key operation).

The Panasonic DP-102A-E-P Digital Pressure Sensor's response time can be adjusted between 2.5 ms to 5,000 ms, and the comparative output offers PNP open-collector transistor functionality with a maximum source current of 100 mA. Additionally, the DP-102A-E-P sensor provides built-in short-circuit protection for enhanced safety and reliability. It has an IP40 protection rating, making it ideal for moderate environmental conditions.

This Panasonic DP-102A-E-P Digital Pressure Sensor's temperature characteristics are precise, maintaining within ±1 % F.S. at +20°C (+68°F), and it is built with high-quality materials such as PBT (glass fiber reinforced) for the enclosure, stainless steel for the pressure port, and brass for the mounting threaded part, ensuring long-lasting durability and performance.

Brand Panasonic
Product Number DP-102A-E-P
Part Number DP102AEP
CE Marking Directive Compliance EMC Directive, RoHS Directive
Type of Pressure Gauge pressure
Rated Pressure Range -0.100 to +1.000 MPa
Set Pressure Range -0.101 to +1.010 MPa-101 to +1,010 kPa
-1.03 to +10.30 kgf/cm2
-1.01 to +10.10 bar
-14.6 to +146.4 psi
Pressure Withstand  ability 1.5 MPa
Applicable Fluid Non-corrosive gas
Supply Voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power Consumption Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)
ECO mode :
480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage)
360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage)
Comparative Output PNP open-collector transistor
- Maximum source current : 100 mA
- Applied voltage : 30 V DC or less (between comparative output and +V)

- Residual voltage : 2 V or less (at 100 mA source current)
Comparative Output: Output Operation NO / NC (selectable by key operation)
Comparative Output: Output Modes EASY mode / Hysteresis mode / Window comparator mode
Comparative output: Hysteresis Minimum 1 digit (variable)(however, 2 digits when using psi unit)
Comparative Output: Repeatability ±0.2 % F.S.
(within ±2 digits)
Comparative Output: Response Time 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
Comparative Output: Short-Circuit Protection Incorporated
External Input -
Analog Current Output -
Analog Voltage Output -

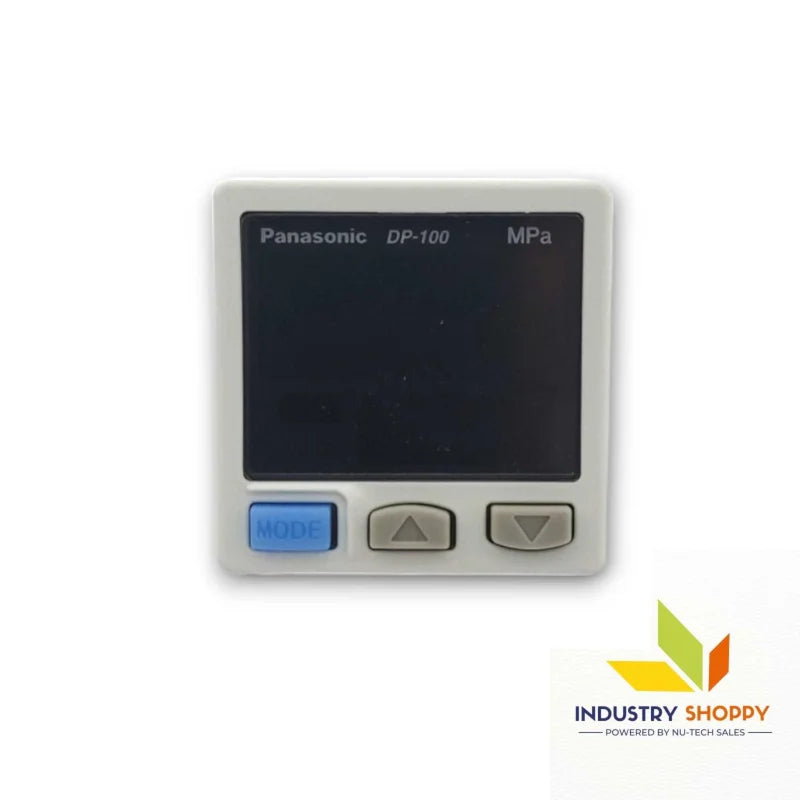

Display 4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation)
Display: Displayable Pressure Range -0.101 to +1.010 MPa
-101 to +1,010 kPa
-1.03 to +10.30 kgf/cm2
-1.01 to +10.10 bar
-14.6 to +146.4 psi
Indicator Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON)
Protection IP40 (IEC)
Ambient Temperature -10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
Ambient Humidity 35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each)
Shock Resistance 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
Temperature Characteristics Within ±1 % F.S.
(at +20 ℃ +68 ℉)
Pressure Port M5 female thread + G 1/8 male thread
Material Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber
Connecting Method Connector

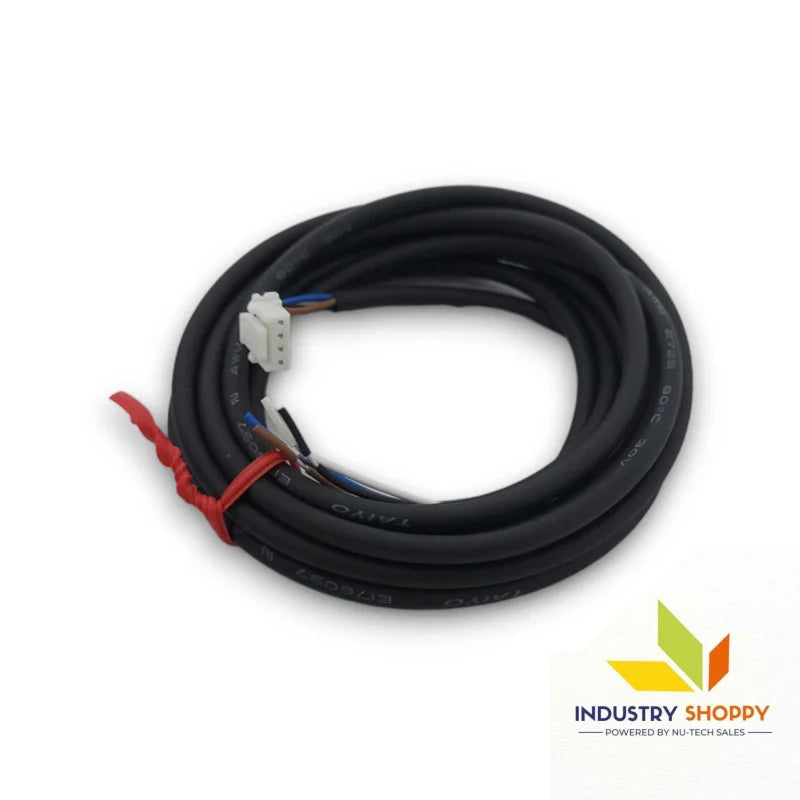

Cable Length Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable



Applications :-

  • Industrial Process Control: Ideal for monitoring pressure in non-corrosive gas systems, ensuring safe and efficient operation.
  • Automation: Used in automated systems where precise pressure measurements are critical, such as in pneumatic control systems.
  • HVAC Systems: Provides reliable pressure measurement in heating, ventilation, and air conditioning systems.
  • Manufacturing: Perfect for use in machinery or systems that involve gas flow monitoring and pressure regulation.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
