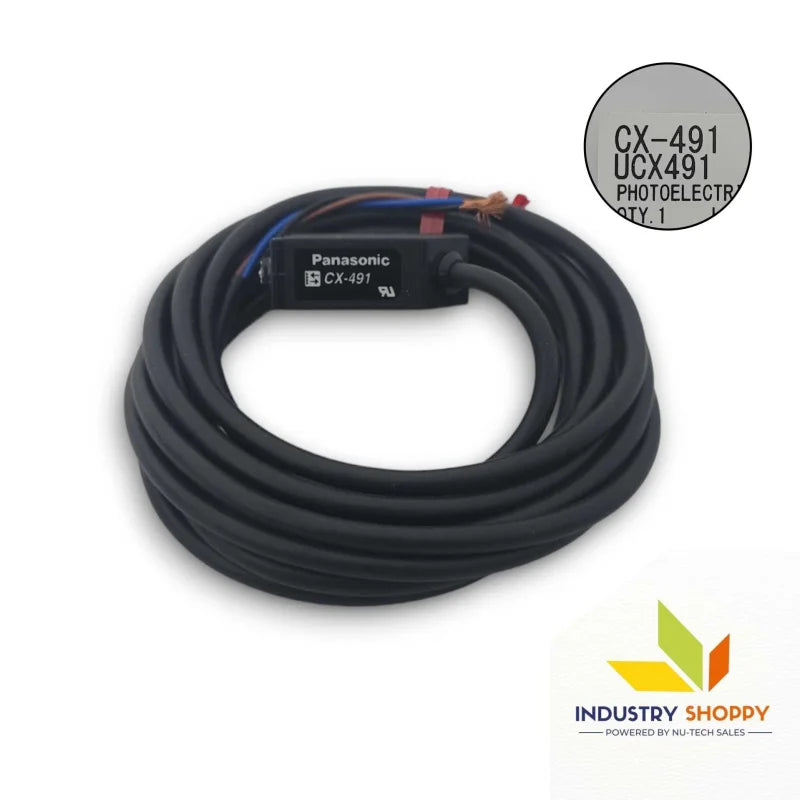

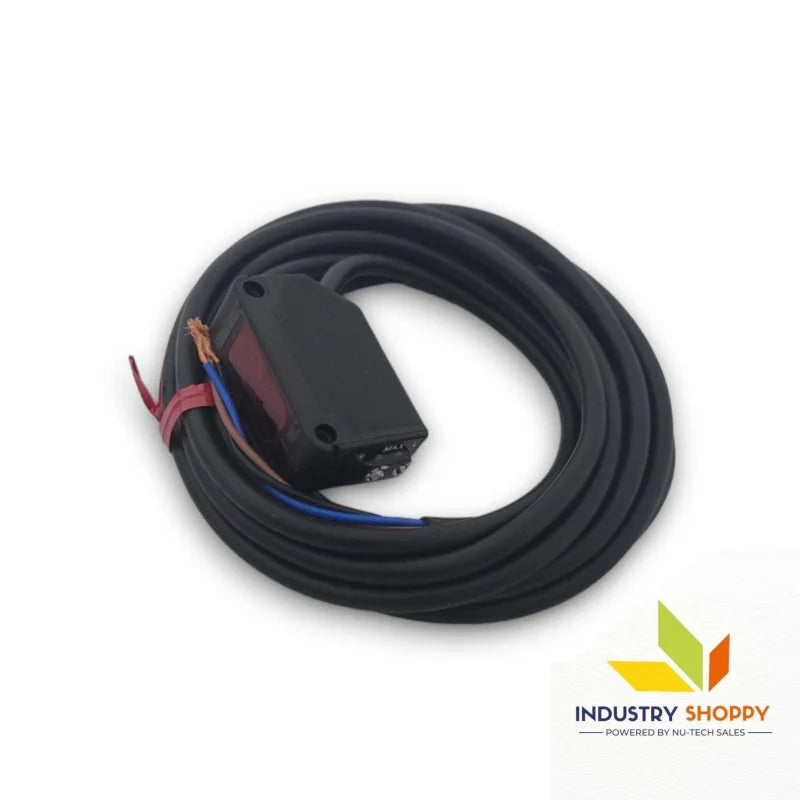

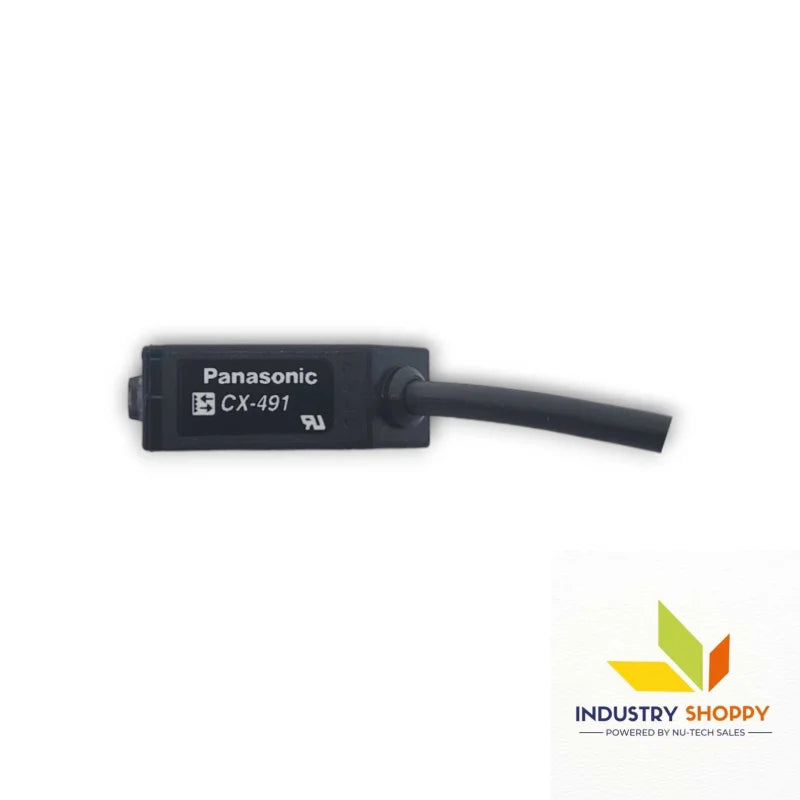

Panasonic CX-491 Retroreflective Sensor

The Panasonic CX-491 Retroreflective Sensor (Part No. UCX491) is a high-performance retroreflective photoelectric sensor, offering a 3-meter (9.843 ft) sensing range for detecting opaque, translucent, or specular objects. Optimized for use with the RF-230 reflector, this sensor provides accurate detection with 0.5 mm repeatability and a 1 ms response time. It features a PNP open-collector output that can be switched between Light-ON or Dark-ON modes, and it includes built-in short-circuit protection for added reliability.

This sensor is built for demanding industrial environments, with an IP67 rating for dust and water resistance. It offers superior ambient temperature tolerance between -25°C to +55°C and features automatic interference prevention, allowing sensors to be installed in close proximity. The continuously variable sensitivity adjuster ensures precise detection, while the LED indicators (orange for operation, green for stability) provide easy diagnostic feedback.

Key features :-

Brand Panasonic
Product name CX-491
Part Number UCX491
Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 3 m 9.843 ft

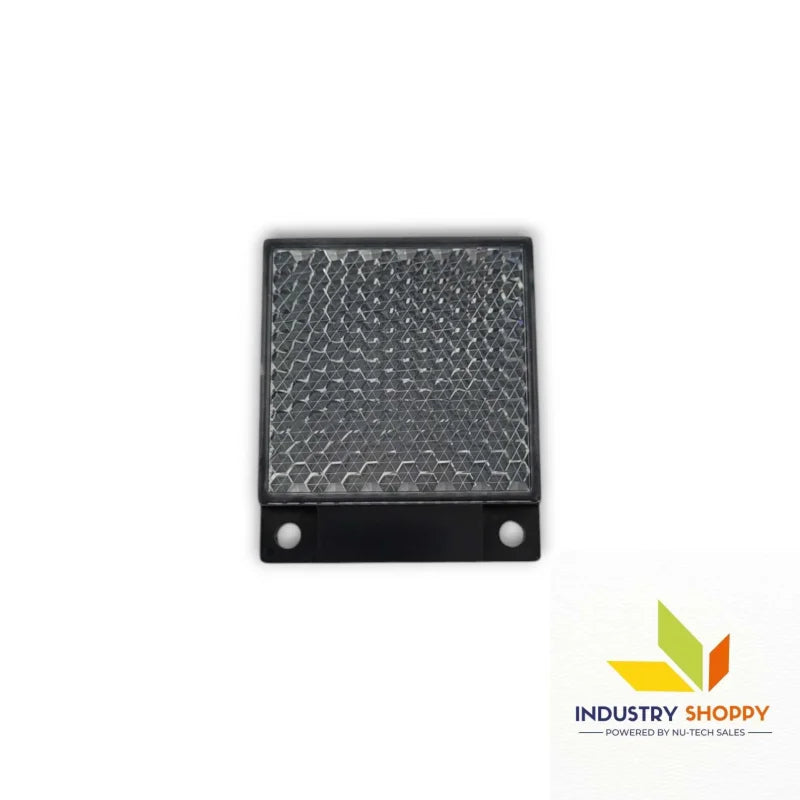

(Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.
Sensing Object Ø50 mm Ø1.969 in or more opaque, translucent or specular object
(Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.
(Note) Make sure to confirm detection with an actual sensor before use.
Repeatability (Perpendicular to Sensing Axis) 0.5 mm 0.020 in or less
Hysteresis -
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption 13 mA or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Switchable either Light-ON or Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time 1 ms or less
Operation Indicator Orange LED(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)
Stability Indicator Green LED(lights up under stable light received condition or stable dark condition)
(incorporated on the receiver for thru-beam type)
Power Indicator -

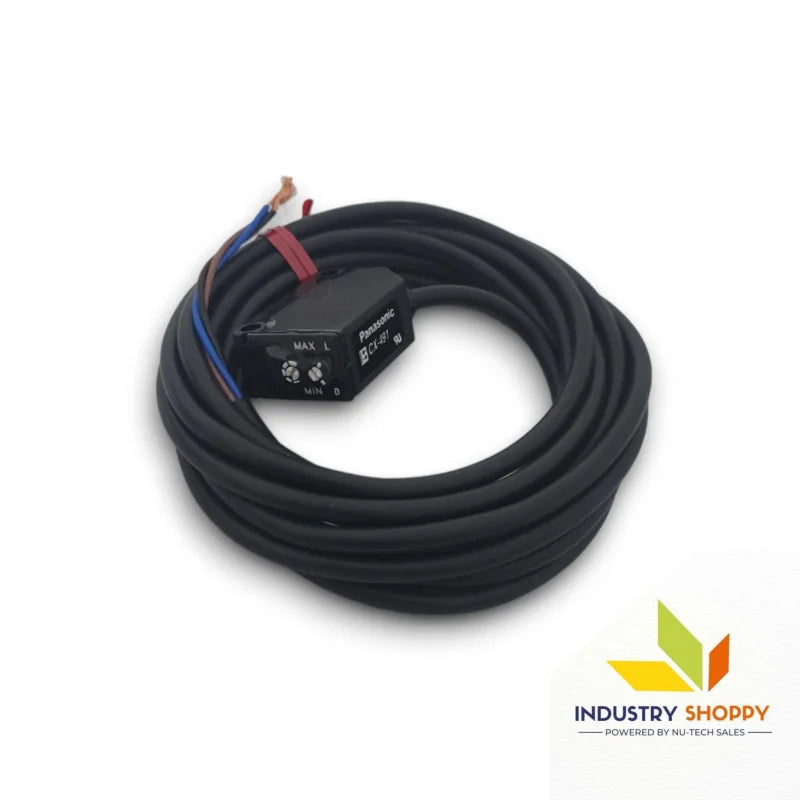

Sensitivity Adjuster Continuously variable adjuster(incorporated on the receiver for thru-beam type)
Automatic Interference Prevention Function Incorporated(Two units of sensors can be mounted close together.)
Protection IP67 (IEC)
Ambient Temperature - 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element (Modulated) Red LED
Emitting Element (Modulated): Peak Emission Wavelength 680 nm 0.027 mil
Material Enclosure: PBT (polybutylene terephthalate)Lens: acrylic
Indicator cover: acrylic
Cable 0.2 mm23-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Conveyor systems: Detects objects with high accuracy for automated material handling.
  • Packaging lines: Reliable for detecting items on fast-moving production lines.
  • Manufacturing automation: Ideal for precise control in factory setups.
  • Safety applications: Provides secure detection for industrial safety protocols.
  • Close-proximity installations: Interference prevention allows for tight sensor arrangements.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
