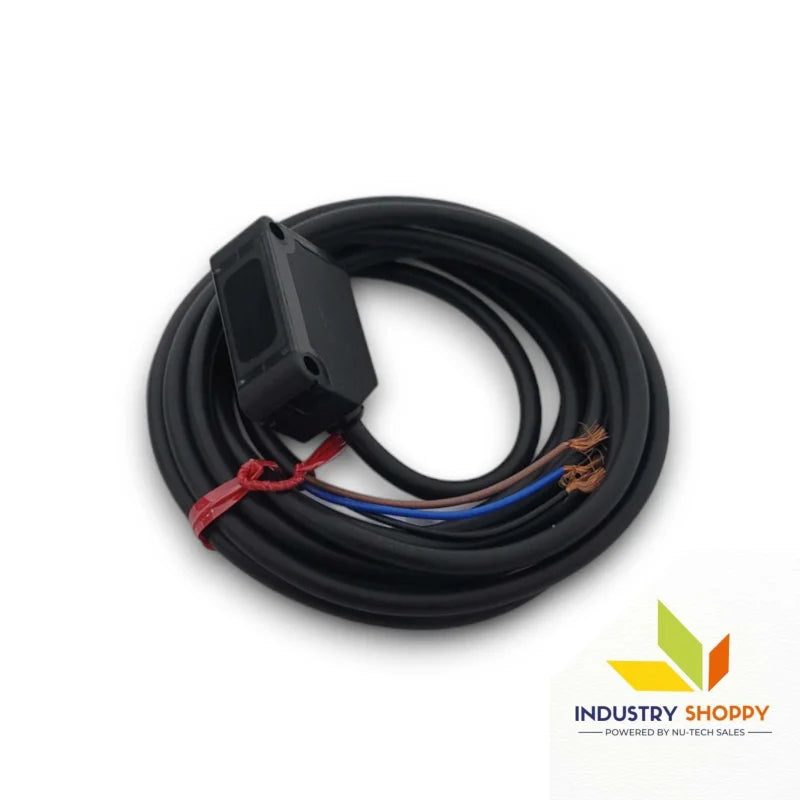

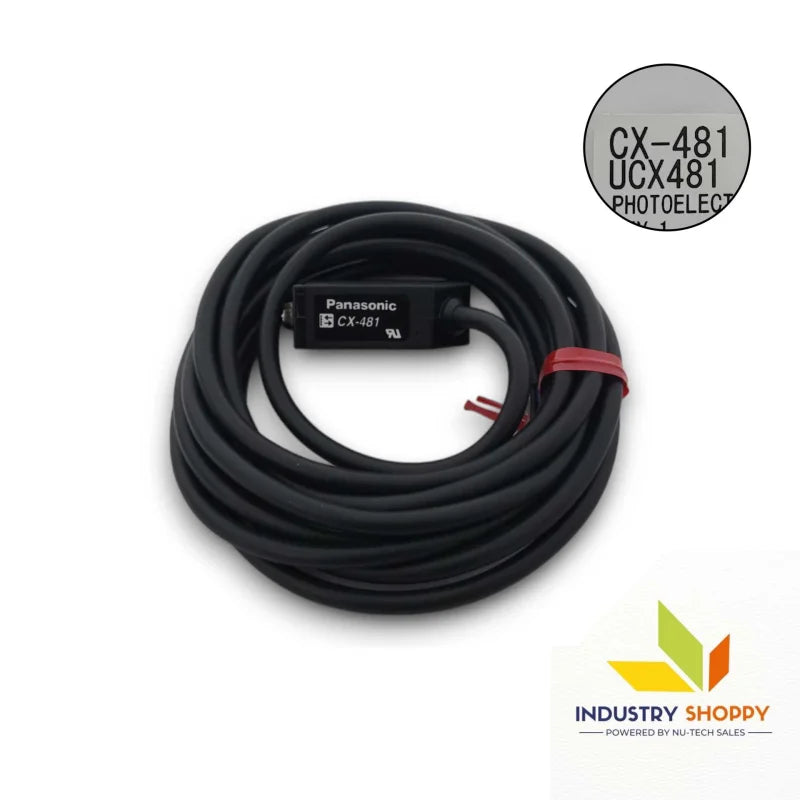

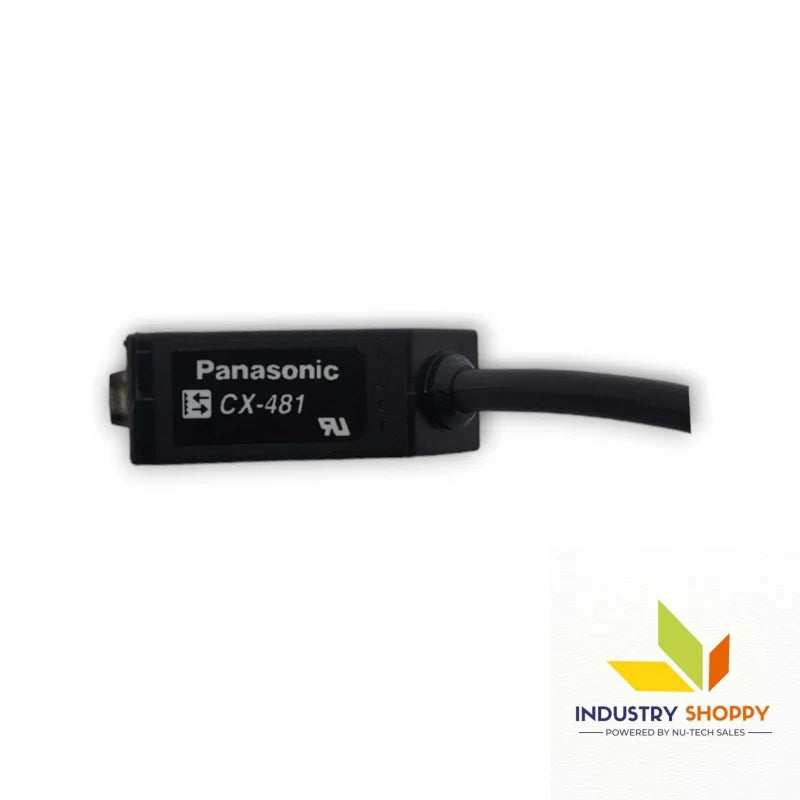

Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic CX-481 Photoelectric Sensor
Panasonic

Panasonic CX-481 Photoelectric Sensor

Product SKU: NTSSEN00072
Available:
Only 29 items in stock
29 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UCX481
  • Type
:  Photoelectric Sensor
  • Output Type
:  NPN
  • Operating Range
: --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$64.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic CX-481 Photoelectric Sensor ( Part no. : CX-481-P )

The Panasonic CX-481 Photoelectric Sensor is a high-performance photoelectric sensor designed for precise object detection in a variety of industrial automation applications. With a sensing range of 50 to 500 mm (1.969 to 19.685 inches), it provides reliable and accurate detection of transparent, translucent, or opaque objects. The sensor operates with a modulated infrared LED, ensuring stable detection even under fluctuating ambient conditions.

Equipped with an NPN open-collector transistor output, the CX-481 offers a response time of 1 ms, making it ideal for high-speed applications. The sensor is IP67 rated, offering excellent protection against dust and water ingress, making it suitable for harsh industrial environments. The CX-481 sensor is designed to work in environments with temperatures ranging from -25°C to +55°C (-13°F to +131°F), ensuring stable performance across a wide range of conditions.

Key features :-

Brand Panasonic ( Part no. : CX-481-P )
Product name CX-481
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 50 to 500 mm 1.969 to 19.685 in

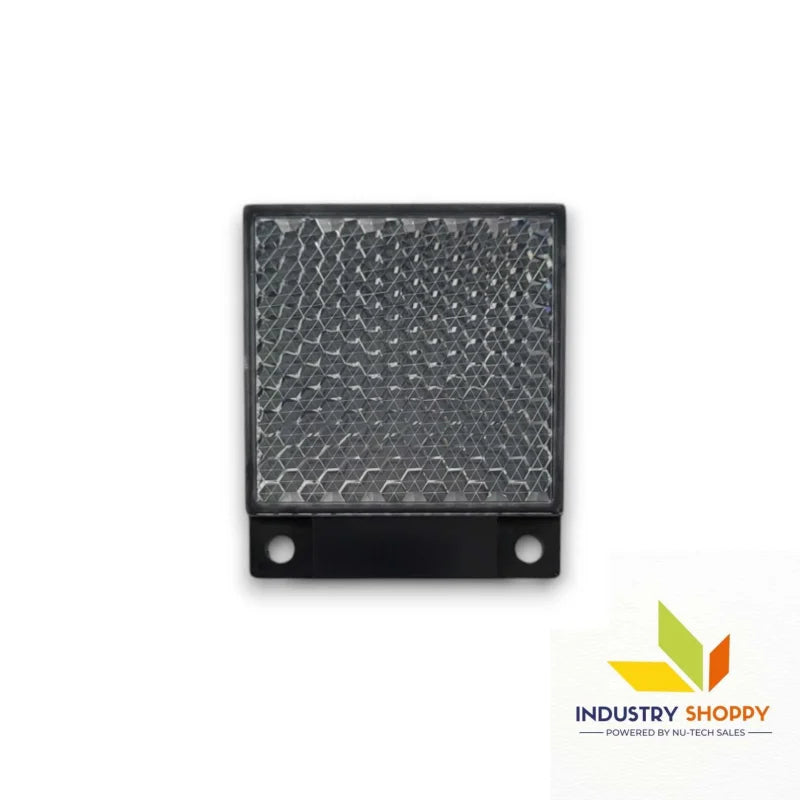

(Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.
Sensing Object Ø50 mm Ø1.969 in or more transparent, translucent or opaque object
(Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.
(Note) Make sure to confirm detection with an actual sensor before use.
Repeatability (Perpendicular to Sensing Axis) 0.5 mm 0.020 in or less
Hysteresis -
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption 10 mA or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Switchable either Light-ON or Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time 1 ms or less
Operation Indicator Orange LED(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)
Stability Indicator Green LED(lights up under stable light received condition or stable dark condition)
(incorporated on the receiver for thru-beam type)
Power Indicator -

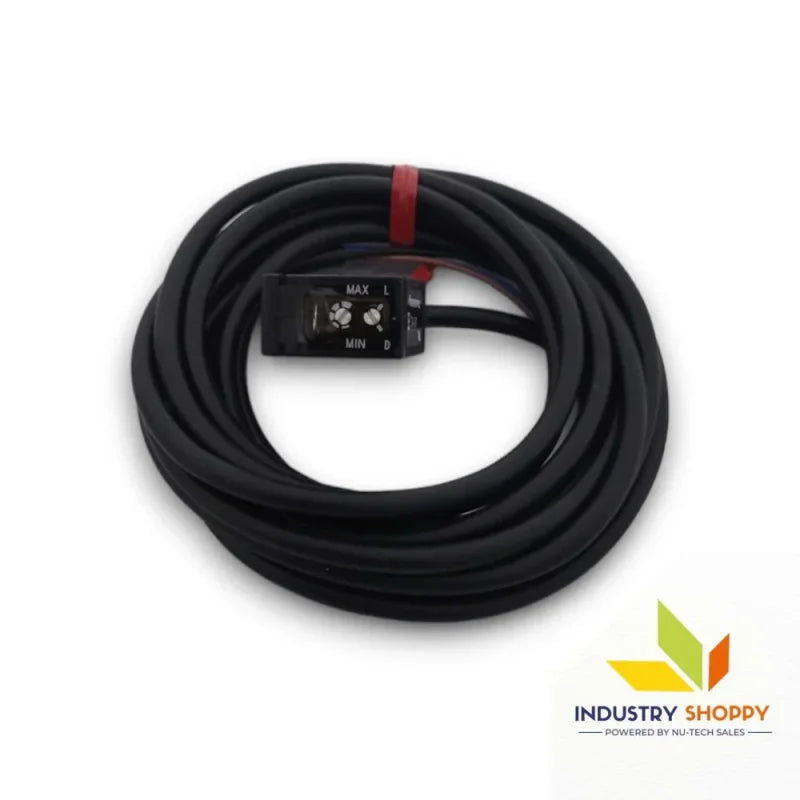

Sensitivity Adjuster Continuously variable adjuster(incorporated on the receiver for thru-beam type)
Automatic Interference Prevention Function Incorporated(Two units of sensors can be mounted close together.)
Protection IP67 (IEC)
Ambient Temperature - 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element (Modulated) Infrared LED
Emitting Element (Modulated): Peak Emission Wavelength 870 nm 0.034 mil
Material Enclosure: PBT (polybutylene terephthalate)
Lens: polycarbonate
Indicator cover: polycarbonate
Cable 0.2 mm23-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Automated Manufacturing: For detecting objects or components on automated production lines.
  • Conveyor Systems: Used to monitor materials moving along conveyor belts.
  • Robotic Systems: Helps in precise object detection in robotic arms or automated machinery.
  • Packaging Machines: Integrated into packaging systems to ensure accurate item placement and detection.
  • Material Handling: Ideal for sorting and handling materials in factories and warehouses.
  • Quality Control: Utilized in quality inspection systems to detect defective products.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
