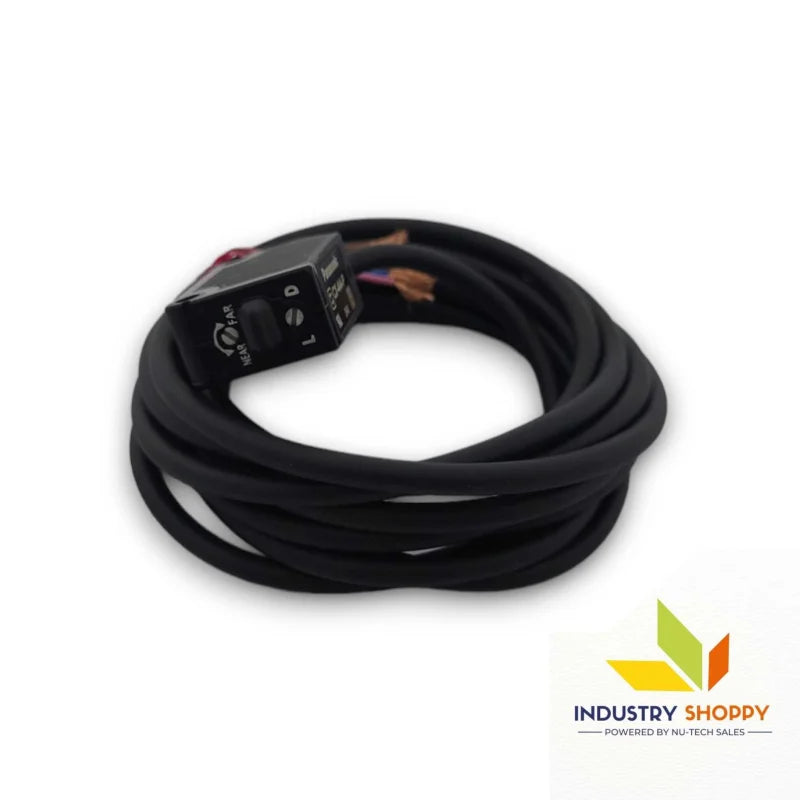

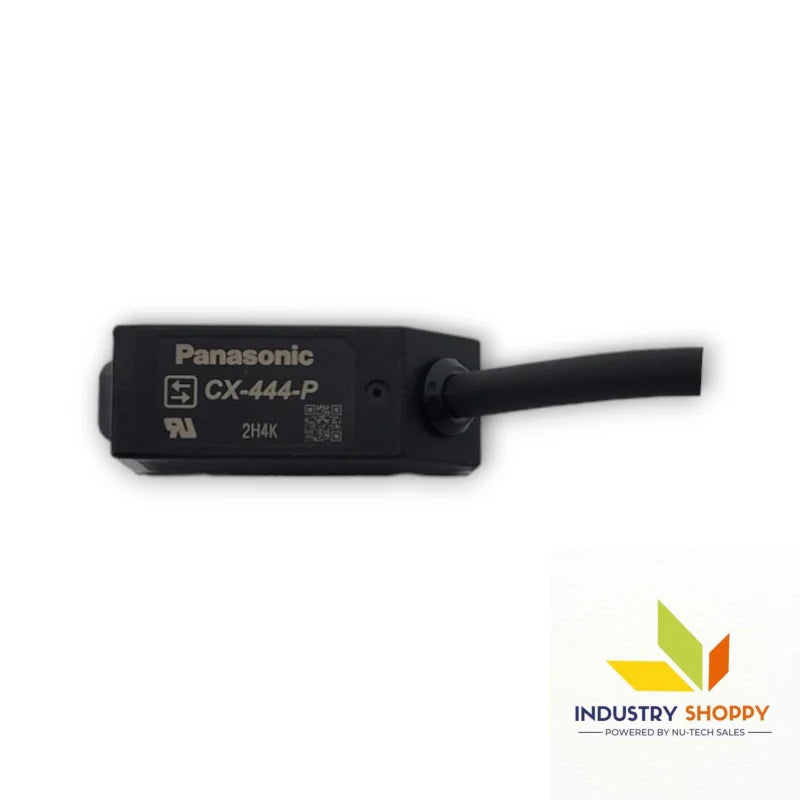

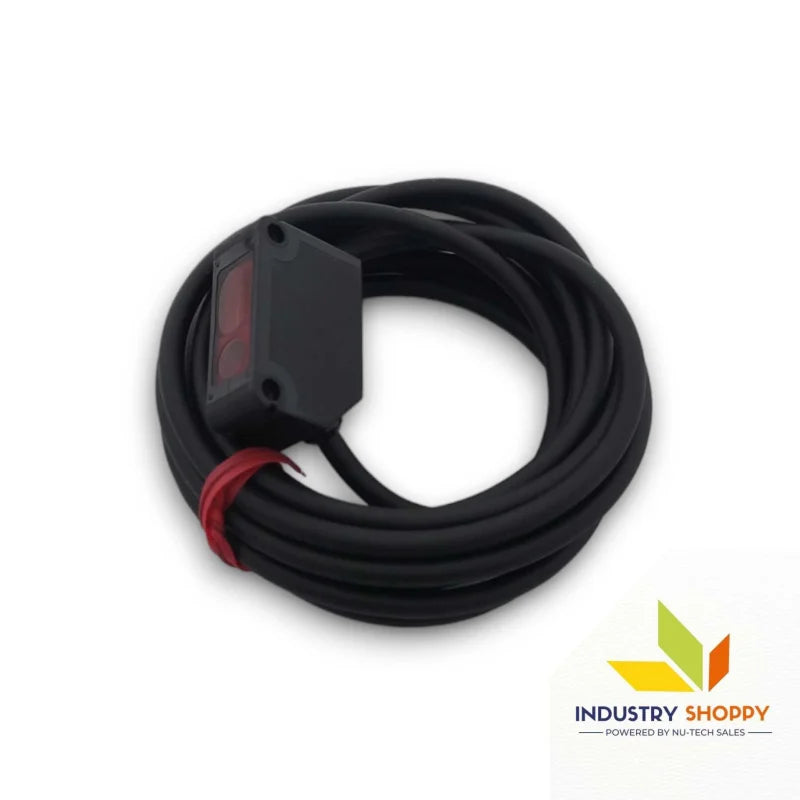

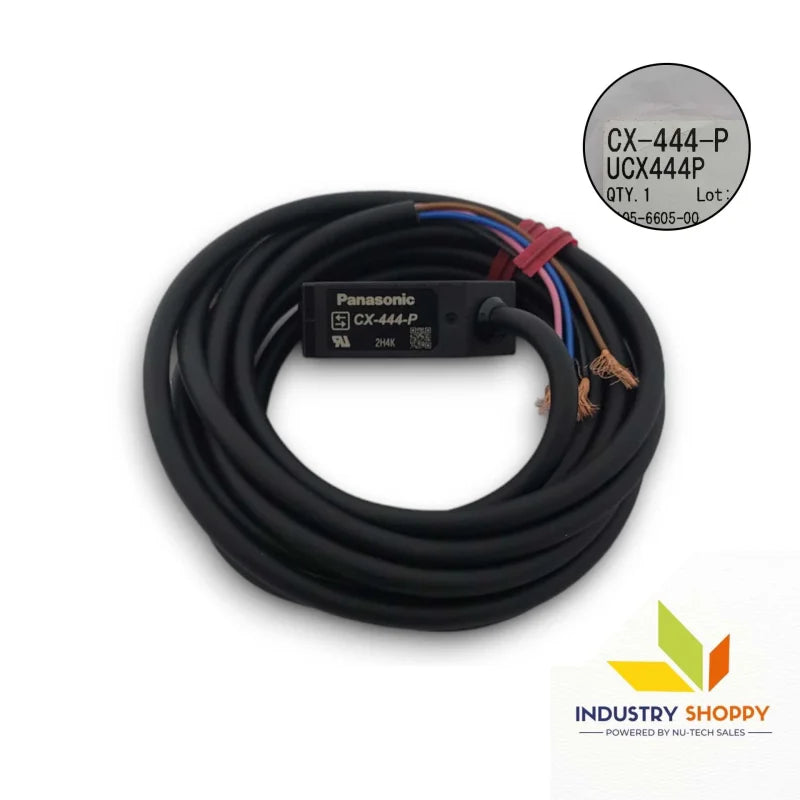

Panasonic CX-444-P Photoelectric Sensor
Panasonic CX-444-P Photoelectric Sensor
Panasonic CX-444-P Photoelectric Sensor
Panasonic CX-444-P Photoelectric Sensor
Panasonic CX-444-P Photoelectric Sensor
Panasonic CX-444-P Photoelectric Sensor
Panasonic CX-444-P Photoelectric Sensor
Panasonic CX-444-P Photoelectric Sensor
Panasonic

Panasonic CX-444-P Photoelectric Sensor

Product SKU: NTSSEN00193
Available:
Only 4 items in stock
4 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UCX444P
  • Type
:  Photoelectric Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$68.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic CX-444-P Photoelectric Sensor

The Panasonic CX-444-P Photoelectric Sensor is a versatile and reliable photoelectric sensor designed for precise object detection in a variety of industrial applications. With an adjustable sensing range from 20 to 100 mm (0.787 to 3.937 inches), this sensor offers flexible configuration to meet specific detection requirements. The sensor features a red LED emitting element with a 650 nm peak emission wavelength and a spot diameter of 9 mm at a distance of 100 mm (3.937 inches).

This model comes with a 5-turn mechanical distance adjuster for fine-tuning the sensing range, ensuring accurate detection of objects that are 2 mm or more away. The CX-444-P has an output that is PNP open-collector transistor with a switchable Detection-ON or Detection-OFF operation mode, which provides flexibility in its integration into various systems. It is equipped with short-circuit protection and features both an orange LED for operation status and a green LED for stability indication.

Built for durability, the CX-444-P has an IP67 protection rating, making it suitable for environments where exposure to dust and water is common. It operates reliably in temperatures ranging from -25 to +55℃ (-13 to +131℉) and can withstand vibration and shock, making it ideal for use in industrial machinery and automation systems.

Key features :-

Product Number CX-444-P
Part Number

UCX444P
Regulatory compliance EMC Directive, RoHS Directive
Adjustable range 20 to 100 mm 0.787 to 3.937 in
(Note) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can detect an object 2 mm 0.079 in [CX-444(-P): 15 mm 0.591 in, CX-442(-P): 20 mm 0.787 in], or more, away.
Sensing range(with white non-glossy paper) 15 to 100 mm 0.591 to 3.937 in
Hysteresis 2 % or less of operation distance(with white non-glossy paper)
Repeatability Along sensing axis: 1 mm 0.039 in or less, Perpendicular to sensing axis: 0.2 mm 0.008 in or less (with white non-glossy paper)
Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption 20 mA or less
Output PNP open-collector transistor
– Maximum source current: 100 mA
– Applied voltage: 30 V DC or less (between output and +V)
– Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current)
Output: Output operation Switchable either Detection-ON or Detection-OFF
Output :Short-circuit protection Incorporated
Response time 1 ms or less
Operation indicator Orange LED (lights up when the output is ON)
Stability indicator Green LED(lights up under stable operating condition)
Distance adjuster 5-turn mechanical adjuster
Sensing mode BGS / FGS functions switchable with wiring of sensing mode selection input
Automatic Interference prevention function Incorporated
(Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object.
Protection IP67 (IEC)
Ambient temperature – 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each
Shock resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element (modulated) Red LED
Emitting element (modulated):Peak emission wavelength 650 nm 0.026 mil
Spot diameter Ø9 mm Ø0.354 in approx.(at 100 mm 3.937 in distance)
Material Enclosure: PBT (Polybutylene terephthalate)
Front cover: Polycarbonate
Indicator cover: Polycarbonate
Cable 0.2 mm24-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Conveyor Systems: For detecting objects in material handling systems, ensuring proper placement and movement.
  • Packaging Lines: Ideal for ensuring alignment and counting of products in packaging and sorting systems.
  • Industrial Automation: Perfect for use in automated machinery requiring accurate distance measurement and object detection.
  • Quality Control: Used in manufacturing processes to verify the presence and position of parts or products during assembly.
  • Robotics: Provides precise sensing for robotic arms and systems that require high accuracy for object detection and handling.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
