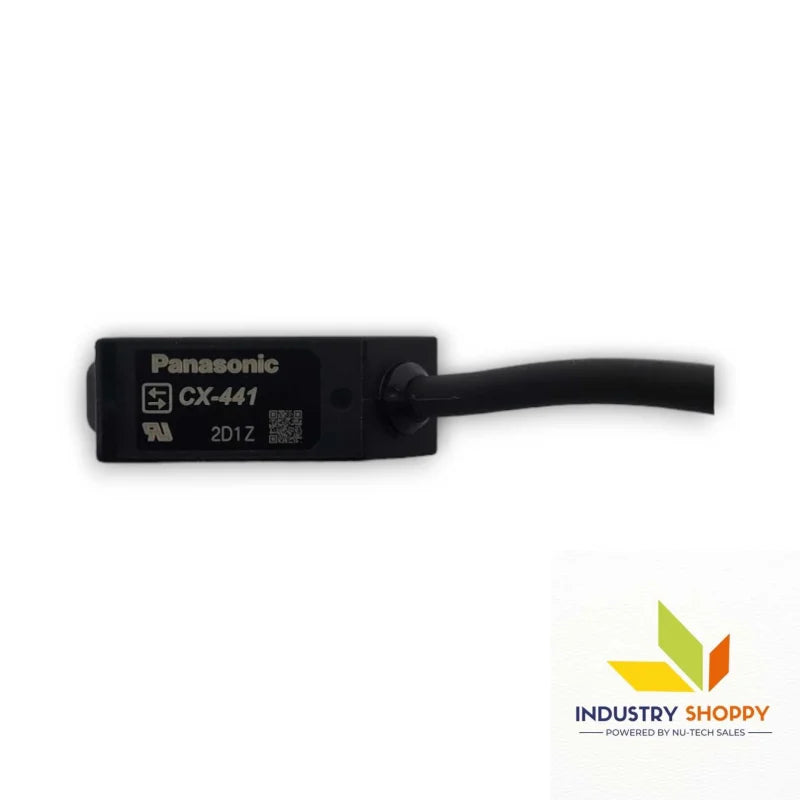

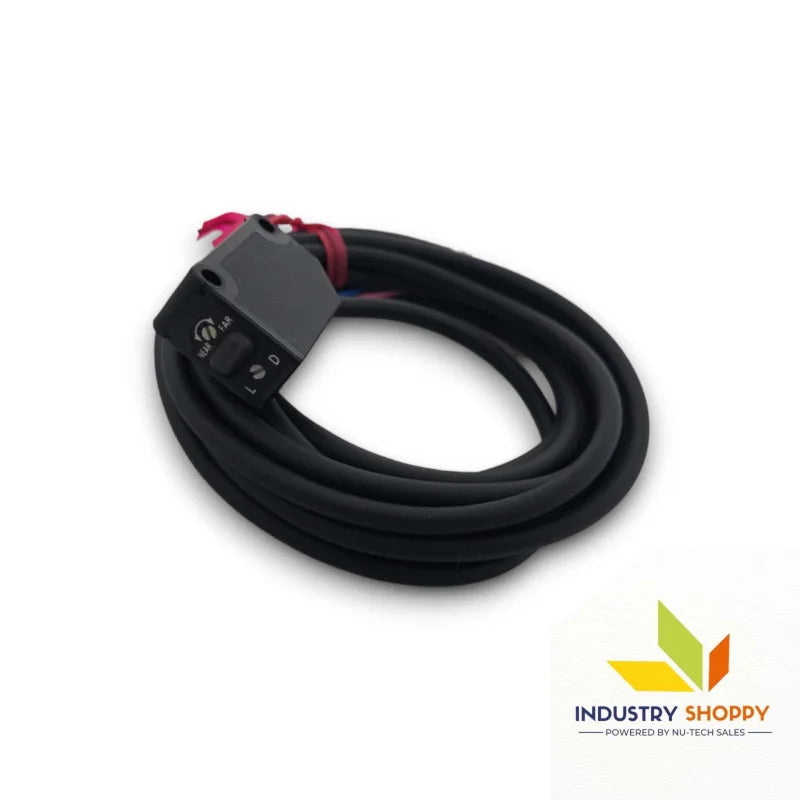

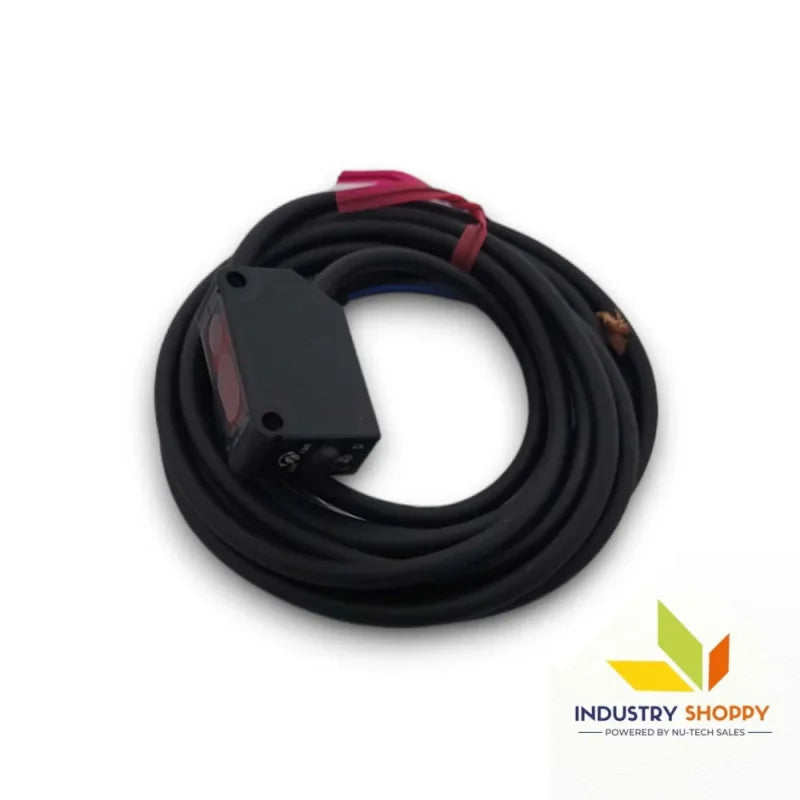

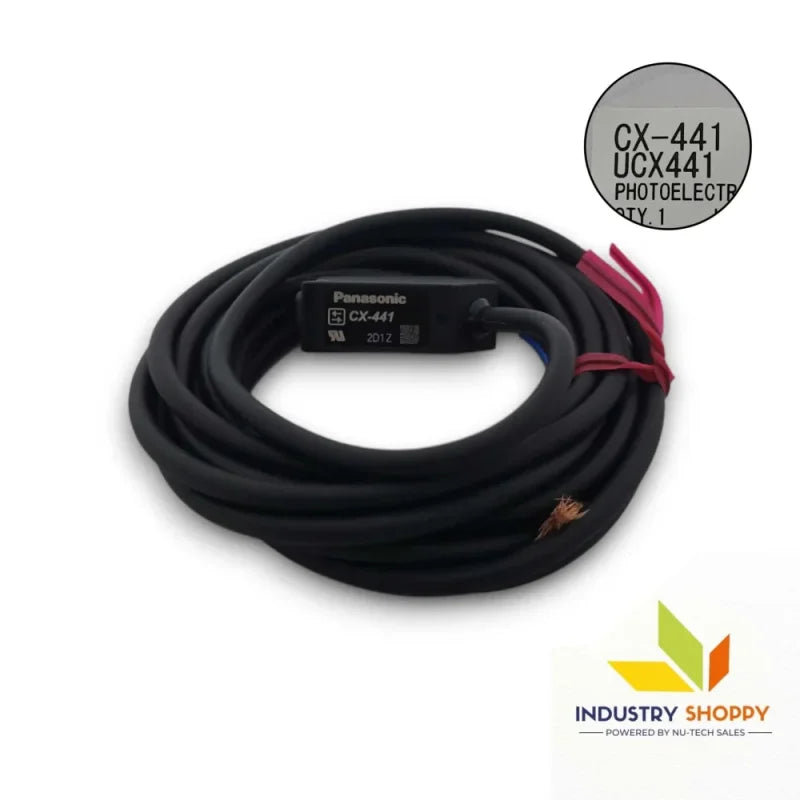

Panasonic CX-441 Photoelectric Sensor

The CX-441 Photoelectric Sensor from Panasonic is a compact and precise photoelectric sensor designed for industrial applications. It features an adjustable range of 20 to 50 mm and offers high sensing accuracy with a hysteresis of 2% or less. With a NPN open-collector output, this sensor ensures reliable performance even under demanding conditions. It has a response time of 1 ms, making it suitable for fast-paced environments. The sensor operates on a 12 to 24 V DC supply, ensuring versatility across various setups.

The IP67 protection rating ensures durability against dust and water, while the automatic interference prevention function maintains stable operation. Ideal for applications in material handling and automation, the CX-441 excels in environments where precision and reliability are essential.

Key features :-

Product Number CX-441
Part Number UCX441
CE Marking Directive Compliance EMC Directive, RoHS Directive
Adjustable Range 20 to 50 mm 0.787 to 1.969 in
(Note) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can detect an object 2 mm 0.079 in [CX-444(-P): 15 mm 0.591 in, CX-442(-P): 20 mm 0.787 in], or more, away.
Sensing Range (With White Non-Glossy Paper) 2 to 50 mm 0.079 to 1.969 in
Hysteresis 2 % or less of operation distance(with white non-glossy paper)
Repeatability Along sensing axis: 1 mm 0.039 in or less, Perpendicular to sensing axis: 0.2 mm 0.008 in or less (with white non-glossy paper)
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption 20 mA or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)

- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Switchable either Detection-ON or Detection-OFF
Output: Short-Circuit Protection Incorporated
Response Time 1 ms or less
Operation Indicator Orange LED (lights up when the output is ON)
Stability Indicator Green LED(lights up under stable operating condition)
Sensing Mode BGS / FGS functions switchable with wiring of sensing mode selection input
Distance Adjuster 5-turn mechanical adjuster
Automatic Interference Prevention Function Incorporated
(Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object.
Protection IP67 (IEC)
Ambient Temperature - 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element (Modulated) Red LED
Emitting Element (Modulated): Peak Emission Wavelength 650 nm 0.026 mil
Spot Diameter Ø2 mm Ø0.079 in approx.(at 50 mm 1.969 in distance)
Material Enclosure: PBT (Polybutylene terephthalate)
Front cover: Polycarbonate
Indicator cover: Polycarbonate
Cable 0.2 mm24-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Automated production lines: Reliable object detection for process automation.
  • Packaging machinery: Ensures accurate placement and sorting of objects.
  • Material handling systems: Efficient detection in conveyor belts and sorting machines.
  • Industrial robotics: Provides precision feedback in robotic arms for material processing.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
