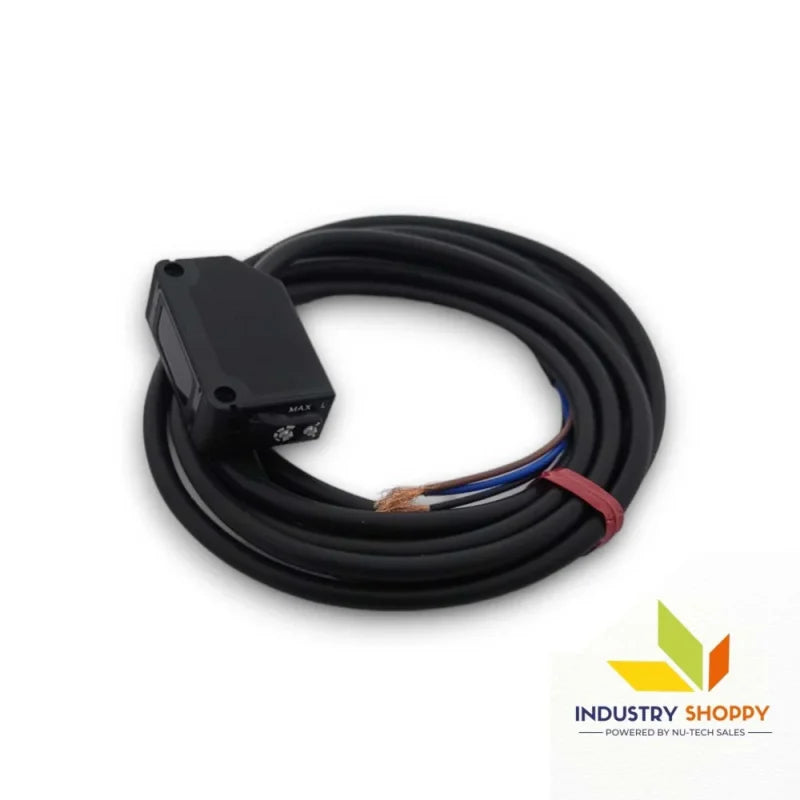

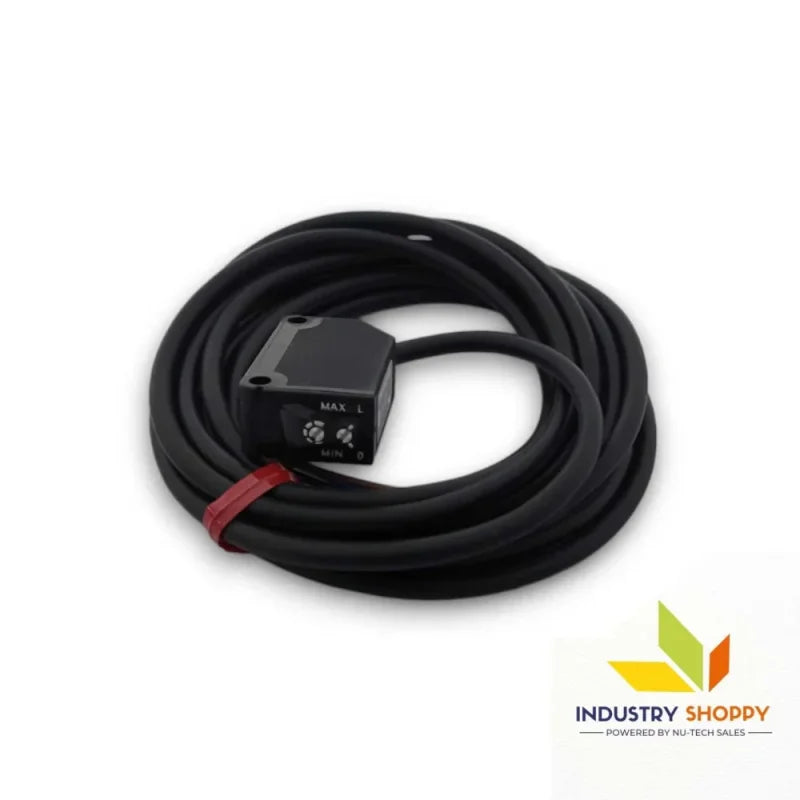

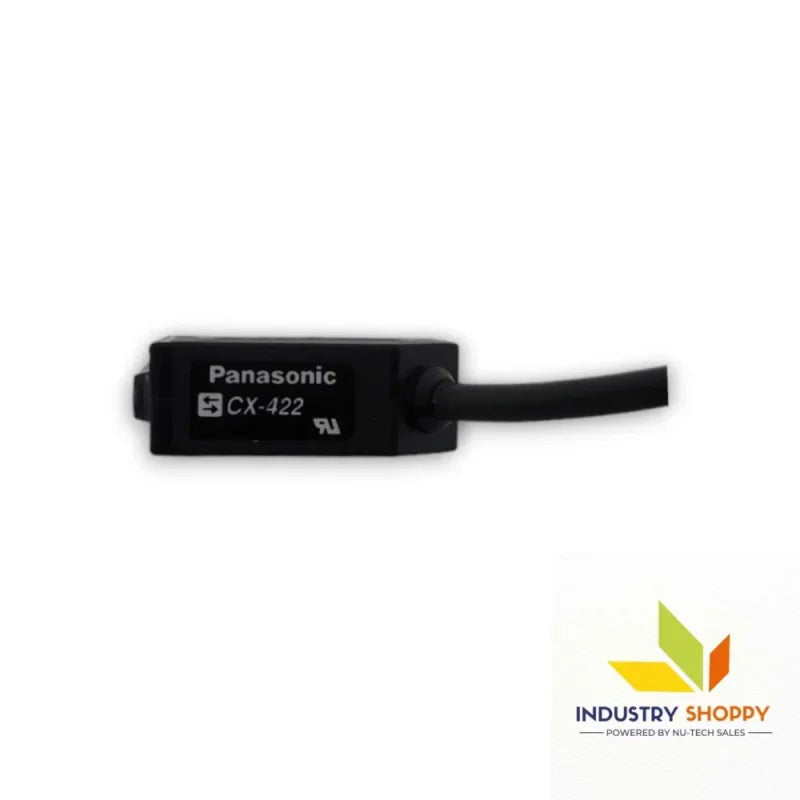

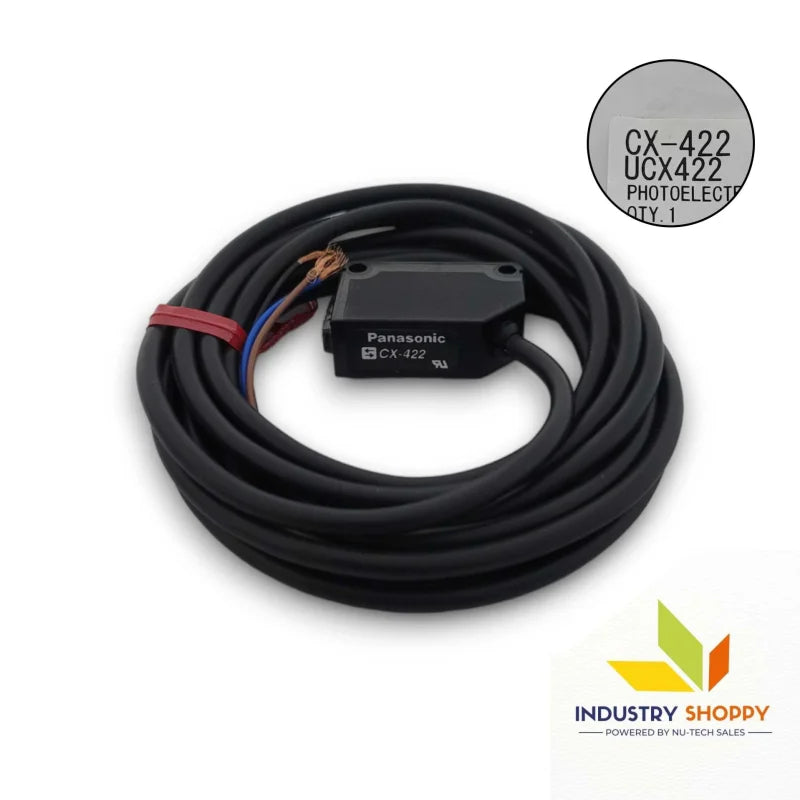

Panasonic CX-422 Photoelectric Sensor

The Panasonic CX-422 Photoelectric Sensor is a high-performance diffuse reflective sensor designed to detect opaque, translucent, or transparent objects with an impressive sensing range of 800 mm (31.496 in). This sensor is highly accurate, offering repeatability of 1 mm (0.039 in) perpendicular to the sensing axis and hysteresis of 15% or less, ensuring reliable performance across various applications. It is powered by a 12 to 24 V DC supply voltage and consumes 15 mA or less of current, offering NPN open-collector transistor output for seamless integration with different systems.

The Panasonic CX-422 Photoelectric Sensor is built for durability, with IP67 protection, making it ideal for use in harsh industrial environments. It also features a sensitivity adjuster for easy calibration, short-circuit protection, and an automatic interference prevention function, allowing for stable performance even when multiple sensors are mounted close together. With an operating temperature range of -25 to +55°C (-13 to +131°F), this sensor is suitable for a wide range of environmental conditions.

Key features :-

Brand Panasonic
Product name CX-422
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 800 mm 31.496 in
(Note) The sensing range and hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 × 200 mm 7.874 × 7.874 in) as the object.
Sensing Object Opaque, translucent or transparent object
(Note) Make sure to confirm detection with an actual sensor before use.
Repeatability (Perpendicular to Sensing Axis) 1 mm 0.039 in or less
Hysteresis 15 % or less of operation distance
(Note) The sensing range and hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 × 200 mm 7.874 × 7.874 in) as the object.
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption 15 mA or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Switchable either Light-ON or Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time 1 ms or less
Operation Indicator Orange LED(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)
Stability Indicator Green LED(lights up under stable light received condition or stable dark condition)
(incorporated on the receiver for thru-beam type)
Power Indicator -
Sensitivity Adjuster Continuously variable adjuster(incorporated on the receiver for thru-beam type)
Automatic Interference Prevention Function Incorporated(Two units of sensors can be mounted close together.)
Protection IP67 (IEC)
Ambient Temperature - 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element (Modulated) Infrared LED
Emitting Element (Modulated): Peak Emission Wavelength 860 nm 0.034 mil
Material Enclosure: PBT (polybutylene terephthalate)
Lens: acrylic
Indicator cover: acrylic
Cable 0.2 mm23-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Object detection in industrial automation: Ideal for detecting a variety of materials on production lines or conveyors.
  • Packaging and sorting systems: Ensures accurate sorting of items based on size, shape, or material type.
  • Material handling: Suitable for monitoring materials in motion in manufacturing environments.
  • Automated control systems: Easily integrates into systems requiring precise and reliable sensing.
  • Quality control applications: Used for detecting product presence and alignment in automated assembly lines.
  • Security and perimeter detection: Perfect for security systems that require object detection at varying distances.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
