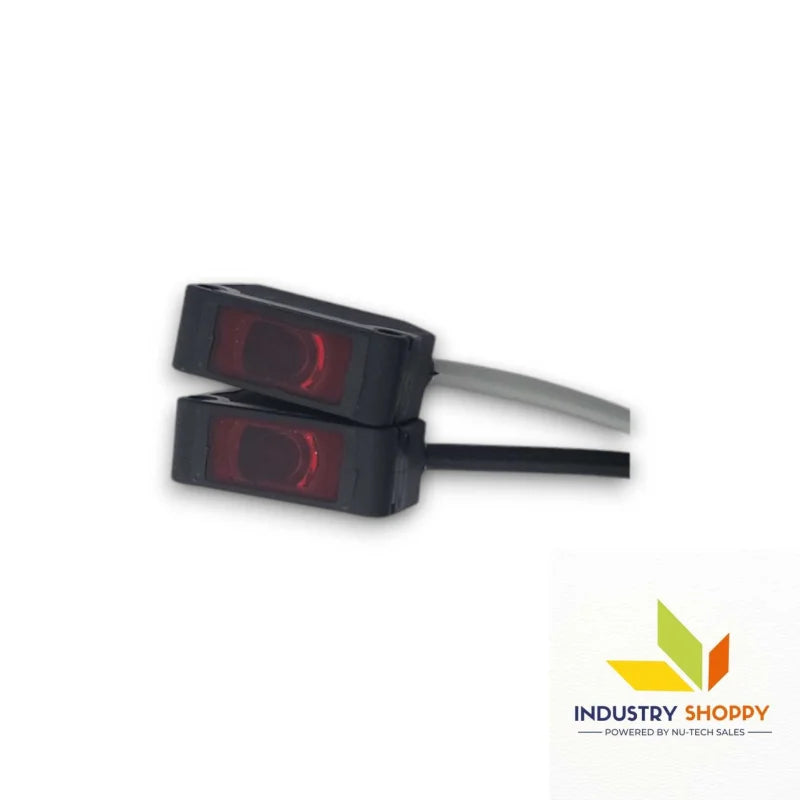

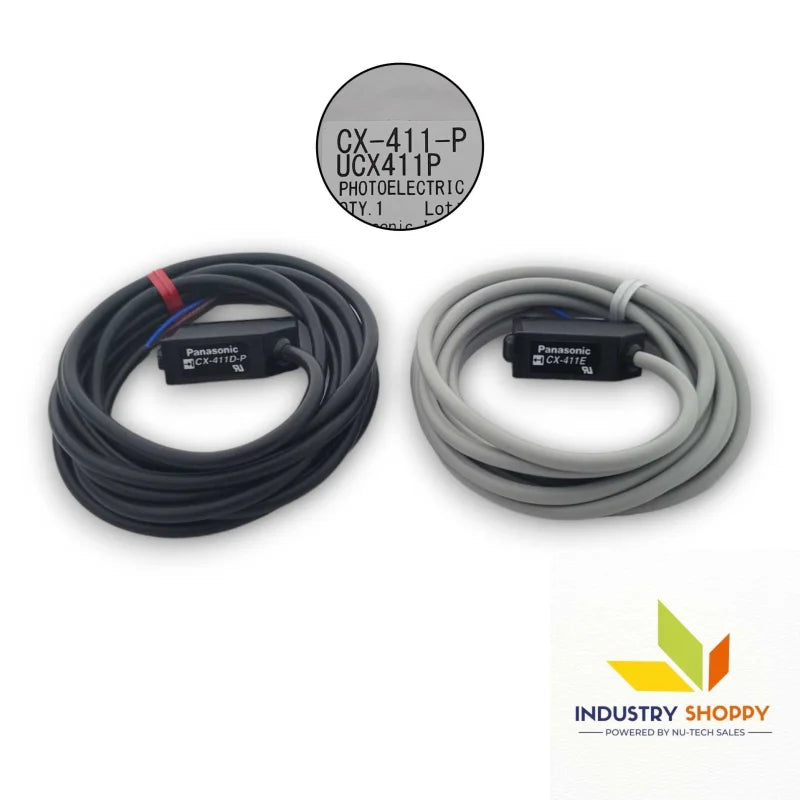

Panasonic CX-411-P Photoelectric Sensor

Panasonic CX-411-P Photoelectric Sensor

The Panasonic CX-411-P Photoelectric Sensor is a high-performance photoelectric sensor that offers a sensing range of up to 10 meters (32.808 ft), ideal for detecting opaque objects as small as Ø12 mm (0.472 in). With the option to use slit masks, it can detect even smaller objects down to Ø0.5 mm (0.020 in), providing superior flexibility for various applications.

The Panasonic CX-411-P Photoelectric Sensor features a PNP open-collector transistor output, allowing for reliable light-ON or dark-ON operation. It boasts a fast response time of 1 ms or less, ensuring quick detection and precision. Additionally, the CX-411-P is equipped with an automatic interference prevention function, allowing up to two units to be mounted close together without interference, with a reduced sensing range of 5 meters (16.404 ft) when used in pairs.

Designed for durability, the CX-411-P has an IP67 rating, ensuring protection from dust and water, making it suitable for challenging industrial environments. It also features green and orange LEDs for clear operational feedback and easy monitoring, along with a continuously variable sensitivity adjuster for fine-tuning detection capabilities.

Key features :-

Applications :-

• Industrial Automation: Ideal for use in automated production lines for object detection and placement.
• Conveyor Systems: Detects objects moving on conveyor belts for sorting, counting, or quality inspection.
• Packaging and Assembly: Used to ensure accurate positioning of parts or products on assembly lines.
• Logistics: Efficient for object detection in warehouses or distribution centers for material handling.
• Security and Surveillance: Used for motion detection and barrier systems in industrial security setups.
• Quality Control: Ensures products meet specifications during manufacturing or packaging.
• Robotics: Integrates into robotic systems for precise positioning and object identification.
• Research and Development: Suitable for testing and prototyping in various scientific environments.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
