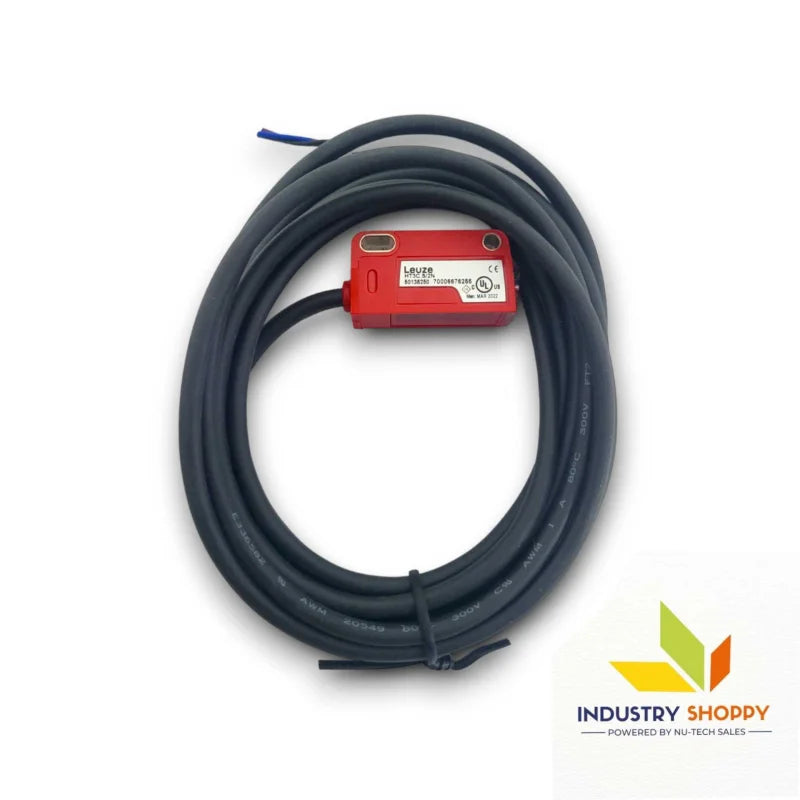

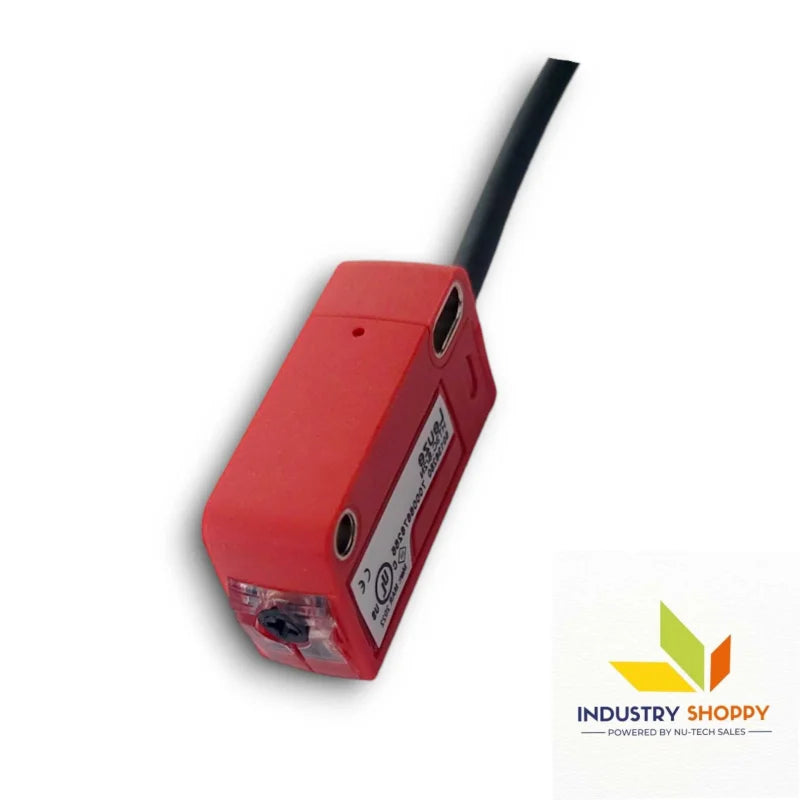

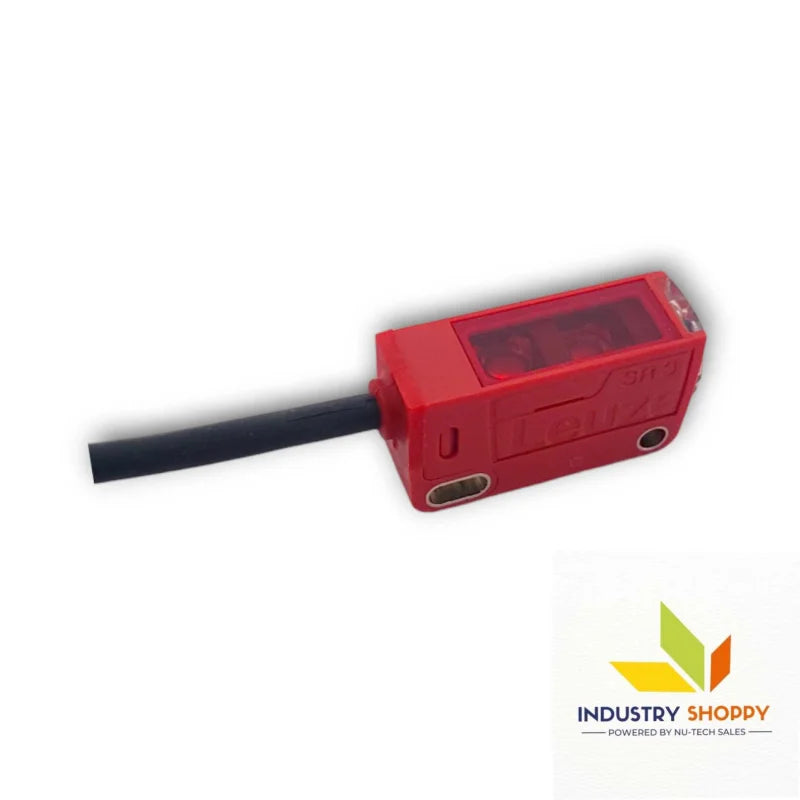

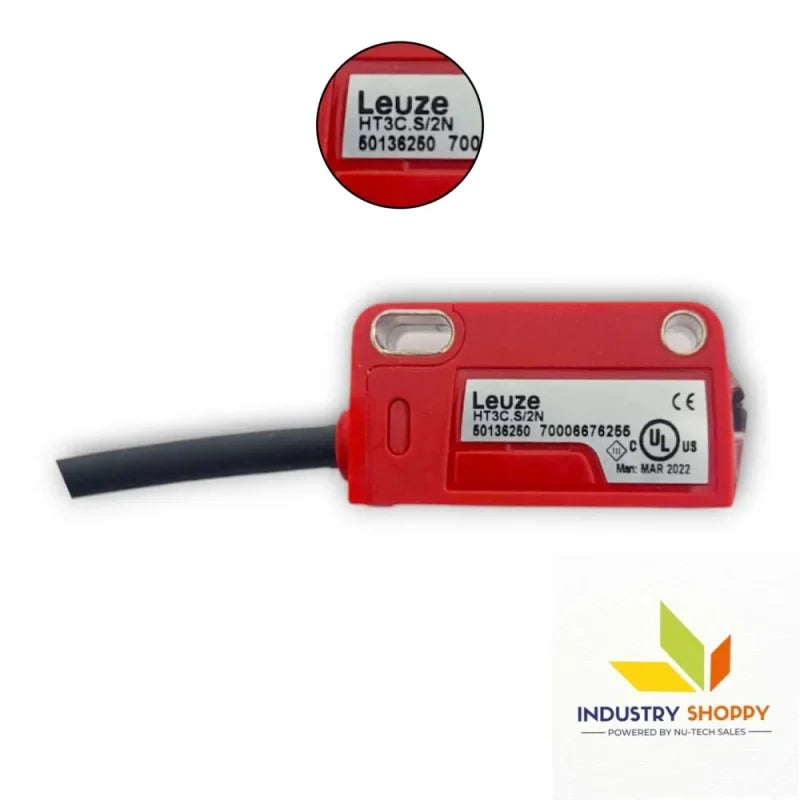

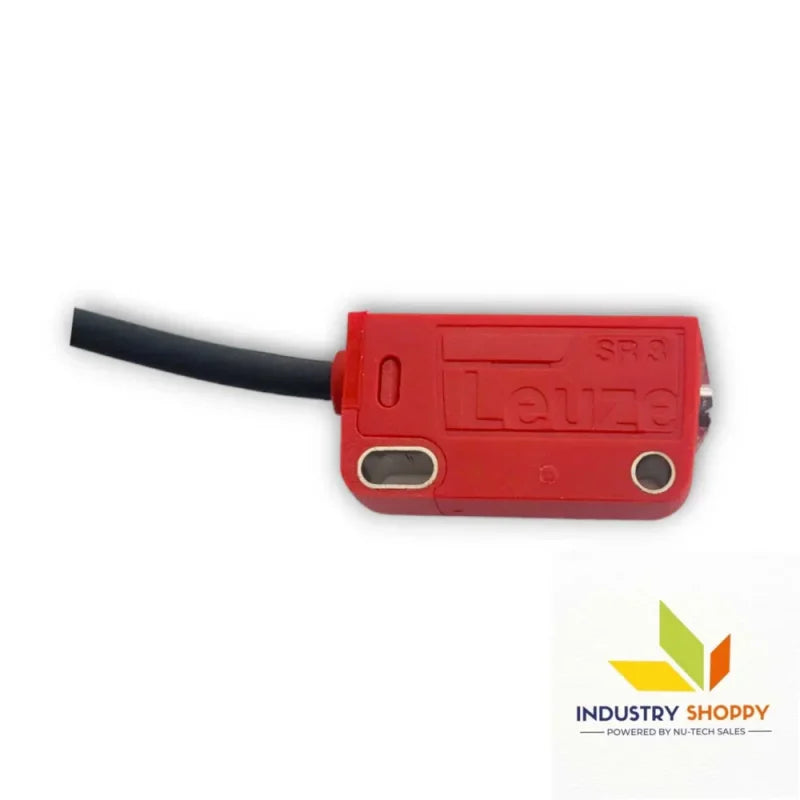

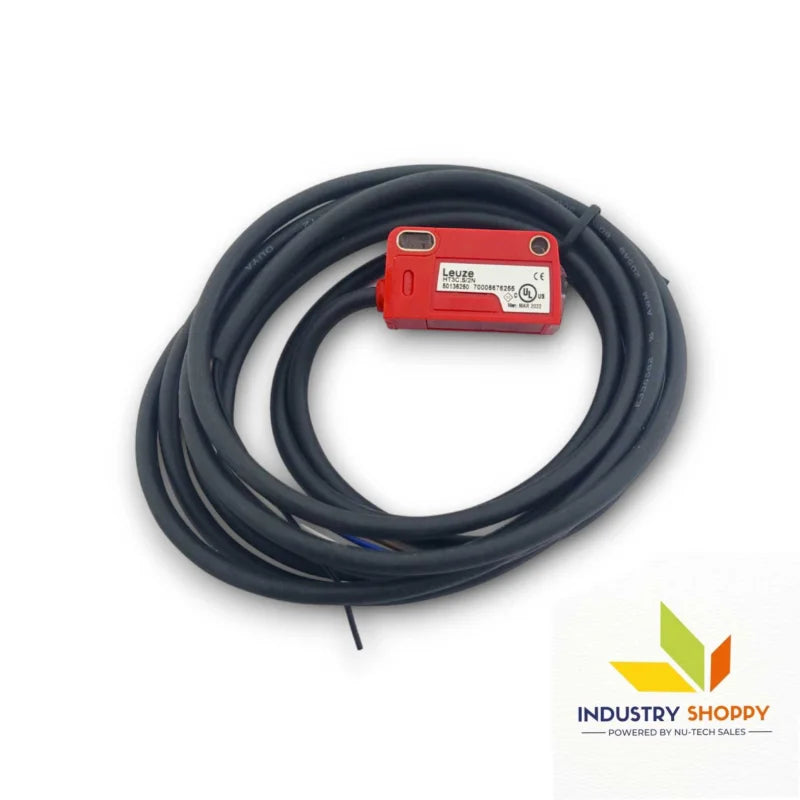

Leuze HT3C.S/2N Diffuse Photoelectric Sensor with Background Suppression
The Leuze HT3C.S/2N Diffuse Sensor is a cutting-edge sensor that uses a diffuse reflection principle with background suppression to detect small parts with high precision. This sensor features a small light spot for enhanced accuracy, making it ideal for applications where detecting minute objects is crucial. Its robust design includes polarity reversal and short circuit protection, ensuring reliable performance even in demanding industrial environments.
Key Features
- Part Number: 50136250
- Model Number: HT3C.S/2N
- Series: 3C
- Operating Principle: Diffuse reflection principle with background suppression
- Application: Detection of small parts
- Special Version: Small light spot (S)
- Operating Range: White (90% reflectivity) 0.005 ... 0.2 m, Gray (18% reflectivity) 0.01 ... 0.15 m, Black (6% reflectivity) 0.015 ... 0.12 m
- Operating Range Limit: 0.005 ... 0.2 m
- Light Source: LED, Red
- Wavelength: 650 nm
- Protective Circuit: Polarity reversal protection, Short circuit protected
- Supply Voltage UB: 10 ... 30 V, DC, Including residual ripple
- Residual Ripple: 0 ... 15 %, From UB
- Open-Circuit Current: 0 ... 15 mA
- Number of Digital Switching Outputs: 2 Piece(s)
- Switching Element: Transistor, NPN
- Switching Principle: Light switching and Dark switching
- Switching Frequency: 1,000 Hz
- Response Time: 0.5 ms
- Readiness Delay: 300 ms
- Function: Signal OUT
- Type of Connection: Cable
- Cable Length: 2,000 mm
- Sheathing Material: PUR
- Cable Color: Black
- Number of Conductors: 4-wire
- Wire Cross Section: 0.2 mm²
- Dimension (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
- Housing Material: Plastic
- Plastic Housing: PC-ABS
- Lens Cover Material: Plastic / PMMA
- Net Weight: 50 g
- Housing Color: Red
- Type of Fastening: Through-hole mounting, Via optional mounting device
- Compatibility of Materials: ECOLAB
- Type of Display: LED
- Operational Controls: Multiturn potentiometer
- Function of the Operational Control: Range adjustment
- Ambient Temperature, Operation: -40 ... 60 °C
- Ambient Temperature, Storage: -40 ... 70 °C
- Degree of Protection: IP 67, IP 69K
- Protection Class: III
- Certifications: c UL US
Application
This sensor is perfectly suited for applications that require precise detection of small parts, such as in assembly lines, quality control systems, and automated manufacturing processes. Its ability to function effectively across various surface colors and reflectivities makes it an essential tool in industries where precision and reliability are paramount.
Technical Precautions
- Polarity: Ensure correct polarity when connecting the sensor to prevent damage.
- Short Circuits: Protect the sensor from short circuits to maintain its longevity.
- Temperature: Maintain the operating temperature within the specified range for optimal performance.
- Handling: Handle the sensor with care during installation to avoid physical damage.
- Guidelines: Follow the manufacturer's guidelines for mounting and connection to ensure accurate detection and operation.
