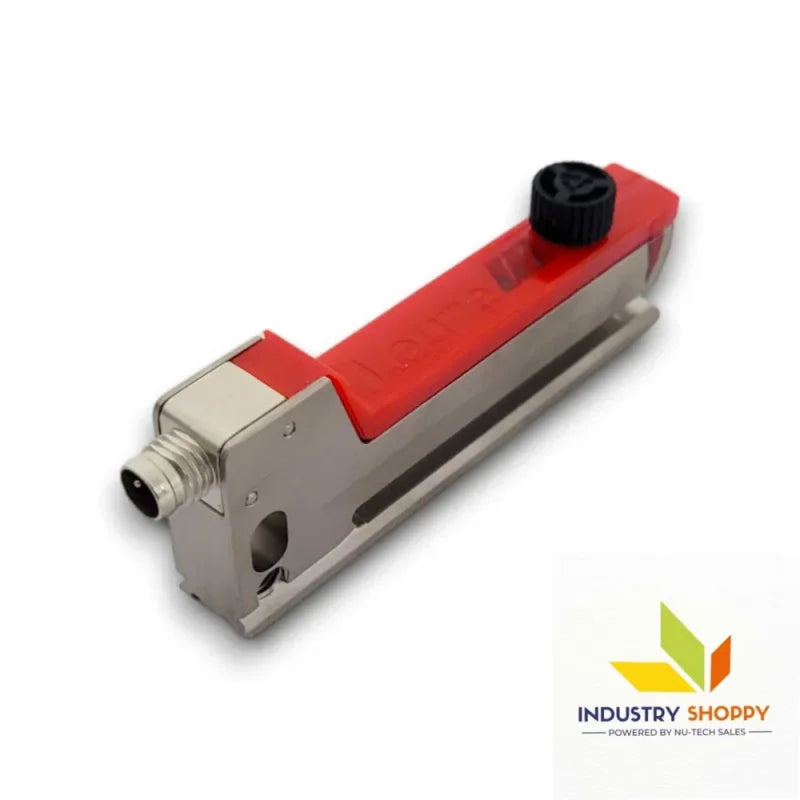

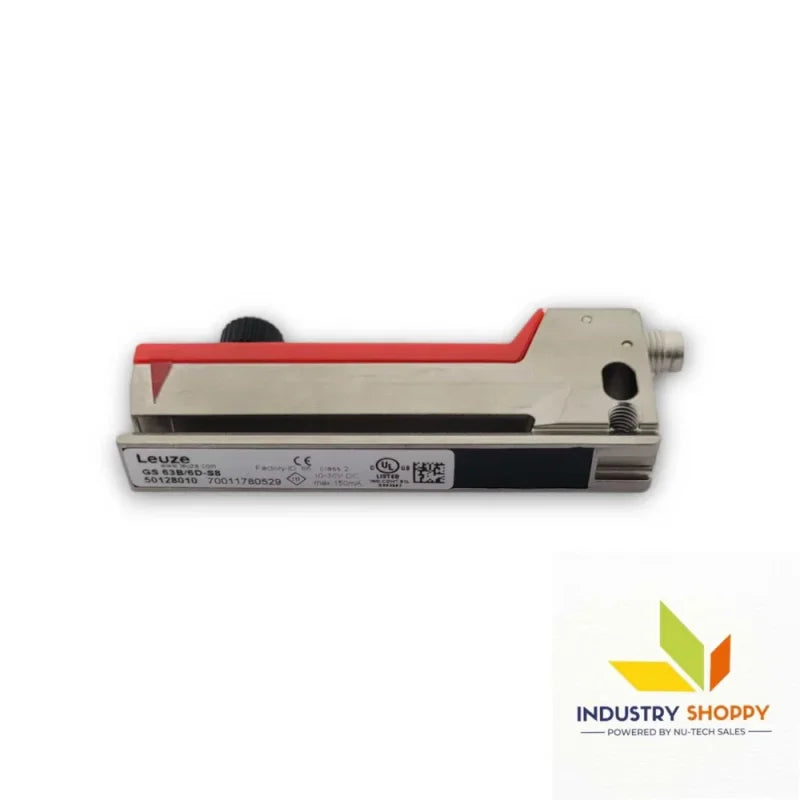

Leuze GS63B/6D-S8 Fork Photoelectric Sensor

Leuze GS 63B/6D-S8 Fork Photoelectric Sensor

The Leuze GS63B/6D-S8 Fork Photoelectric Sensor is a highly reliable and precise optical sensor designed for detecting non-transparent labels. Utilizing an infrared LED with a wavelength of 940 nm, it operates based on the principle of pulsed transmitted signals. This sensor is equipped with robust protective circuits, including polarity reversal and short circuit protection, ensuring its durability and longevity in industrial environments.

Key Features:

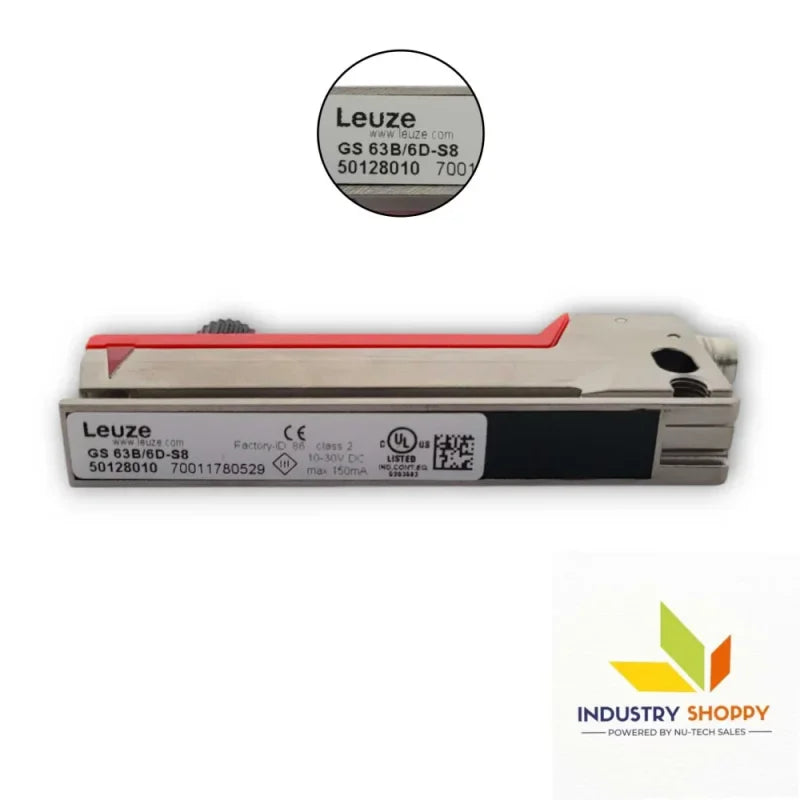

• Part Number: 50128010
• Model Number: GS63B/6D-S8
• Series: 63
• Principle of Physics: Optical
• Application: Detection of non-transparent labels
• Label Width, Min.: 2 mm
• Label Gap, Min.: 2 mm
• Medium: Not transparent
• Light Source: LED, Infrared
• Wavelength: 940 nm
• Transmitted-Signal Shape: Pulsed
• Protective Circuit: Polarity reversal protection, Short circuit protected
• Supply Voltage UB: 10 ... 30 V, DC
• Residual Ripple: 0 ... 15 %, From UB
• Open-Circuit Current: 0 ... 30 mA
• Number of Digital Switching Outputs: 1 Piece(s)
• Type: Digital switching output
• Voltage Type: DC
• Switching Current, Max.: 100 mA
• Switching Voltage: High: ≥(UB-2V), Low: ≤ 2 V
• Switching Element: Transistor, Push-pull
• Switching Principle: Switching signal on label
• Switching Frequency: 10,000 Hz
• Response Time: 0.05 ms
• Readiness Delay: 300 ms
• Max. Conveyor Speed During Teach-In: 20 m/min
• Number of Connections: 1 Piece(s)
• Function: Signal OUT     **Voltage Supply

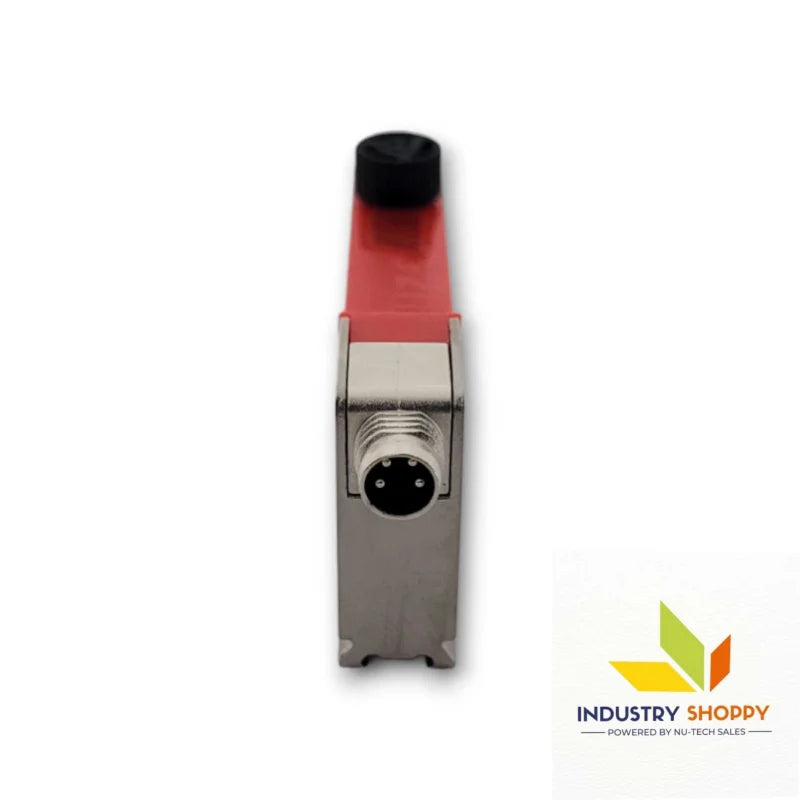

• Type of Connection: Connector
• Thread Size: M8
• Type: Male
• Material: Metal
• No. of Pins: 4-pin
• Plug Outlet: Horizontal (parallel to belt movement)
• Design: Fork
• Mouth Width: 3 mm
• Mouth Depth: 61 mm
• Dimension (W x H x L): 11 mm x 30 mm x 80 mm
• Housing Material: Metal, Plastic
• Metal Housing: Diecast zinc, chemically nickel-plated
• Plastic Housing: PC
• Lens Cover Material: Plastic/PC
• Net Weight: 55 g
• Housing Color: Red, Silver
• Type of Fastening: Through-hole mounting, Via optional mounting device
• Type of Display: LED
• Number of LEDs: 2 Piece(s)

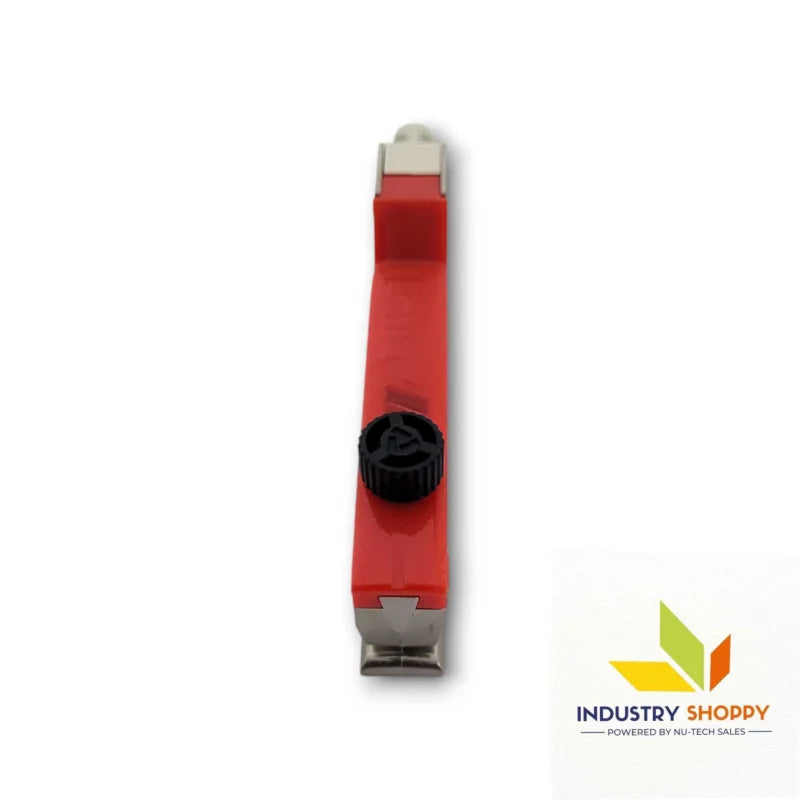

• Operational Controls: Multiturn potentiometer
• Ambient Temperature, Operation: -20 ... 60 °C
• Ambient Temperature, Storage: -30 ... 70 °C
• Degree of Protection: IP 67
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2

Application: This sensor is ideal for applications requiring the detection of non-transparent labels, such as in packaging, printing, and labeling industries. Its ability to accurately detect labels with a minimum width and gap of 2 mm makes it a versatile choice for various automated systems, enhancing operational efficiency and reducing error rates.

Technical Precautions:

• Ensure correct polarity when connecting the sensor to prevent damage.
• Protect the sensor from short circuits to maintain its longevity.
• Maintain the operating temperature within the specified range for optimal performance.
• Handle the sensor with care during installation to avoid physical damage.
• Follow the manufacturer's guidelines for mounting and connection to ensure accurate detection and operation.
