Delta VFD007EL21A AC Drive

Delta VFD007EL21A AC Drive

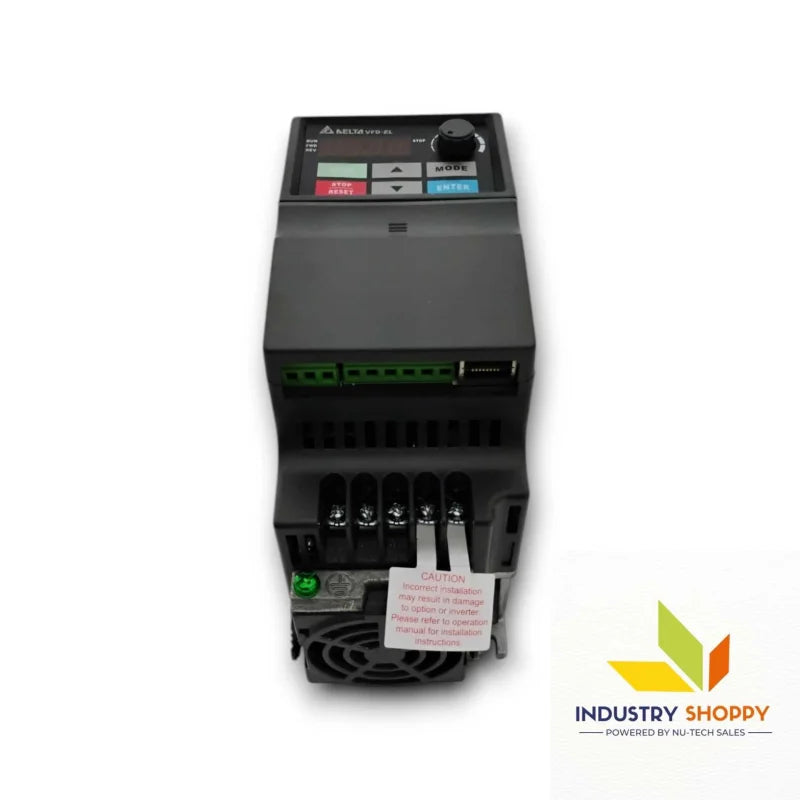

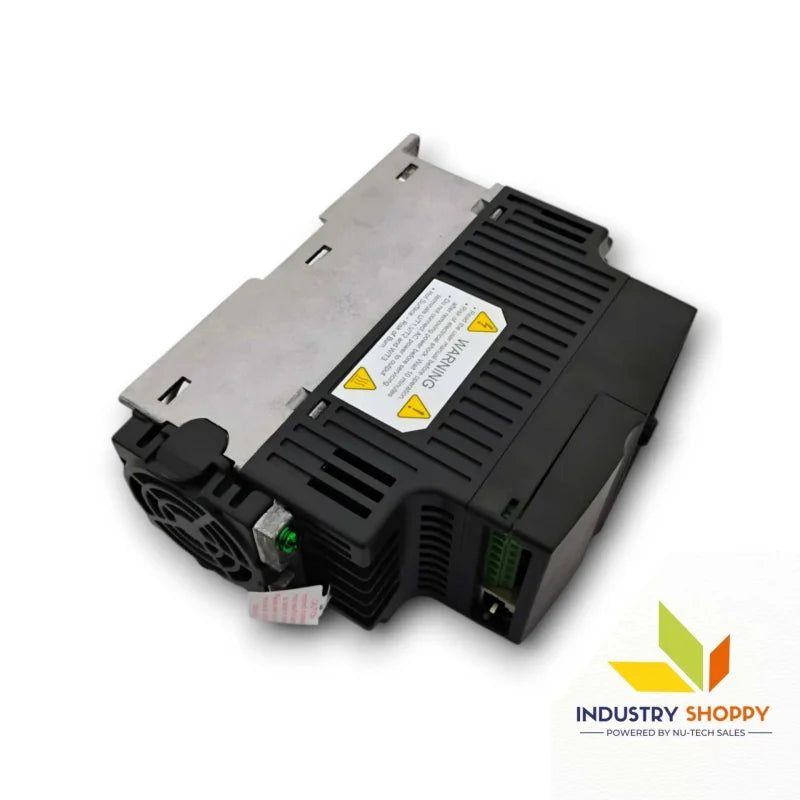

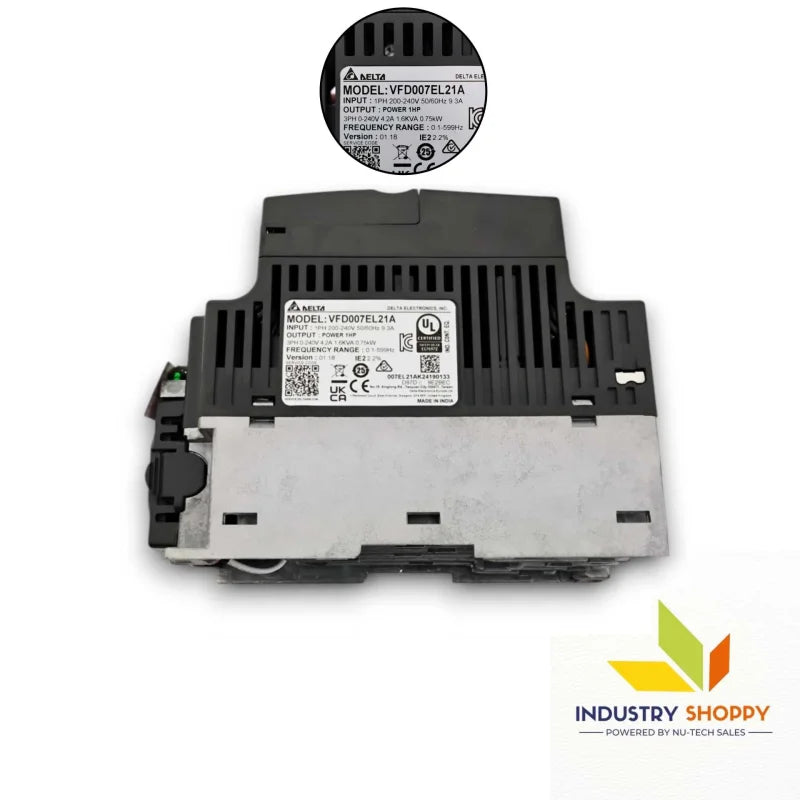

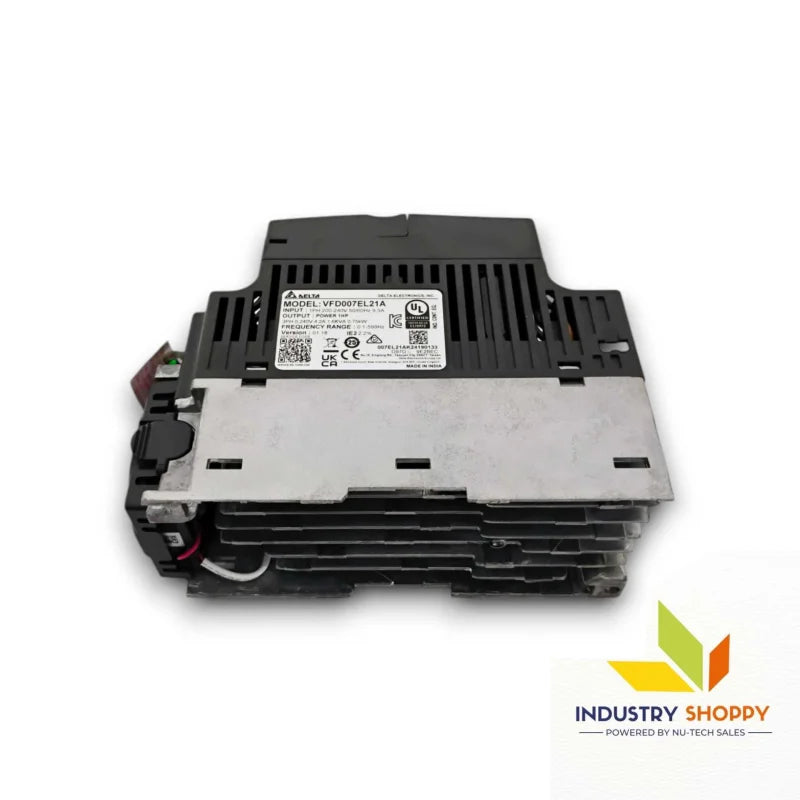

The Delta VFD007EL21A AC Drive is a compact and efficient motor controller designed for light industrial automation. It operates on single-phase 200–240 V (50/60 Hz) input and supports motors up to 0.75 kW (1 HP) with an output current of 4.2 A and output capacity of 1.6 kVA.

This model features an adjustable V/F pattern for flexible speed control and comes with a built-in braking chopper for improved stopping performance. Equipped with built-in MODBUS communication, it allows easy integration into control systems. The drive supports ±5% frequency tolerance and ±10% voltage tolerance, ensuring stable operation under input fluctuations.

With fan cooling, IP20 protection, and mounting options including chassis mount and DIN rail, it is suitable for panel-based installations in controlled environments.

Applications:

• Small pump systems

• Packaging and labeling machines

• Light conveyor systems

• HVAC and ventilation units



Technical Precautions:

• Install inside a protective electrical enclosure (IP20 rated)

• Maintain ambient temperature between -10°C and +50°C

• Keep humidity below 90% RH (non-condensing)

• Ensure proper ventilation for fan cooling efficiency
