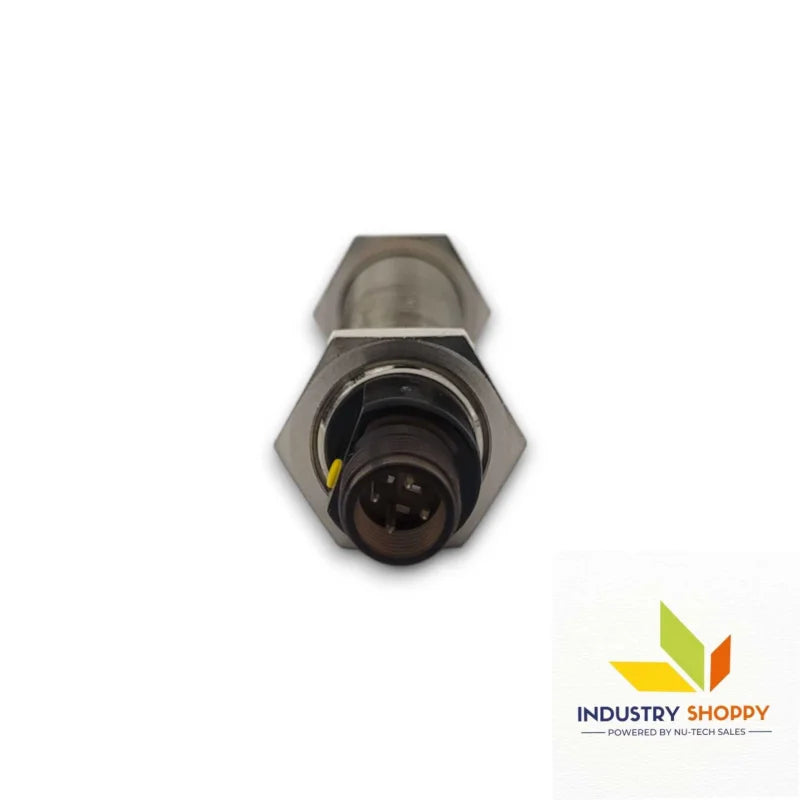

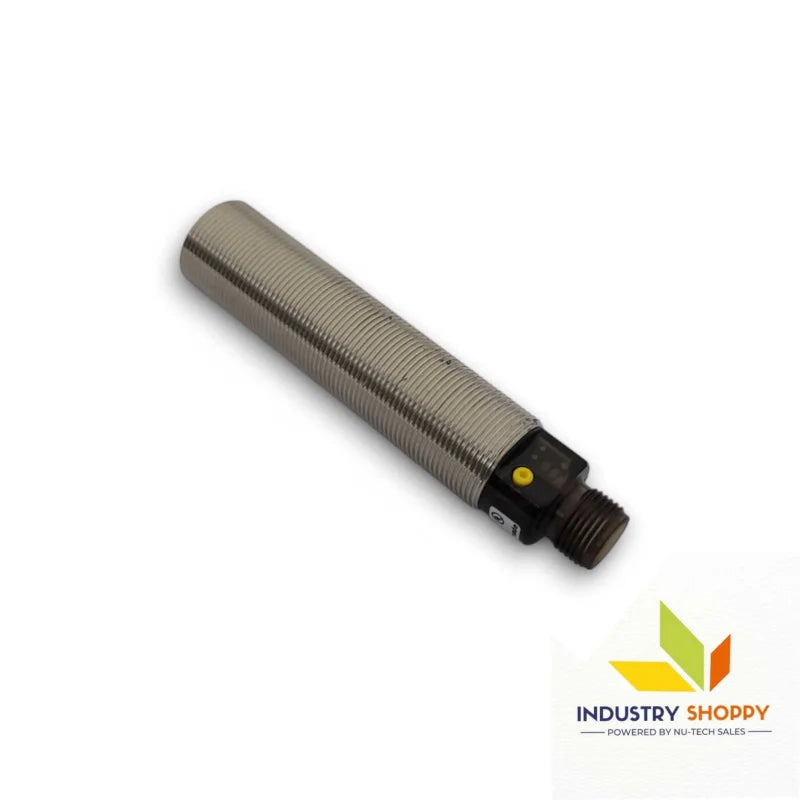

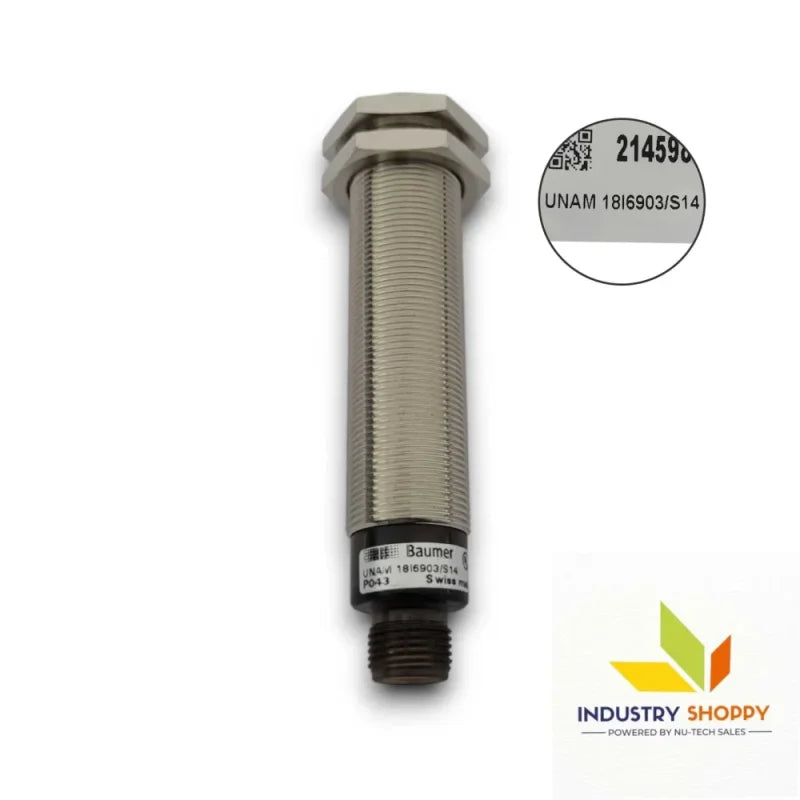

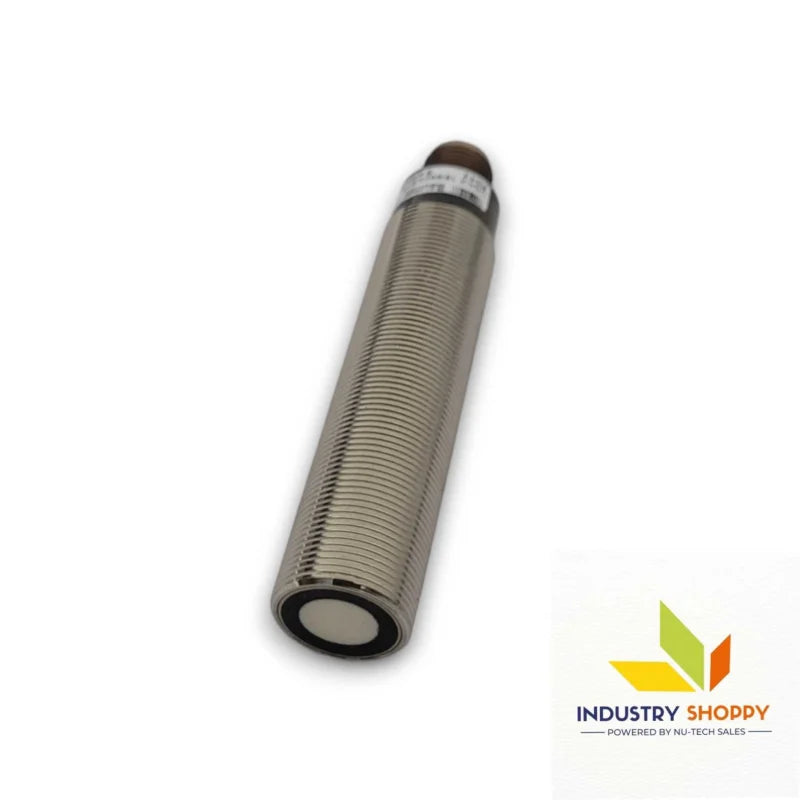

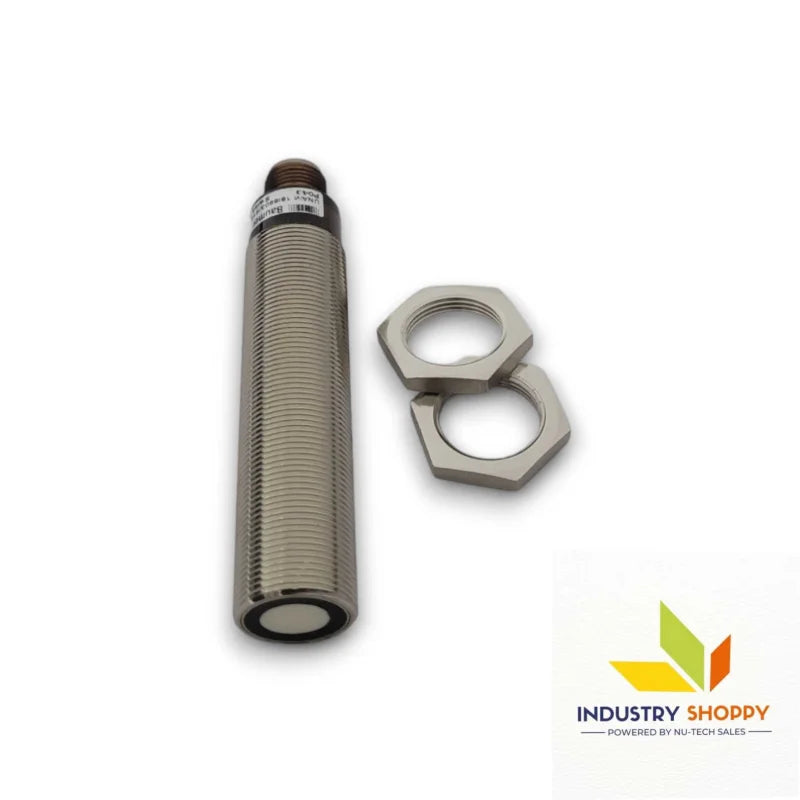

Baumer UNAM18I6903/S14 Ultrasonic Sensor

Baumer UNAM18I6903/S14 Ultrasonic Sensor

The Baumer UNAM18I6903/S14 Ultrasonic Sensor is an advanced ultrasonic distance measuring sensor designed for precision and reliability in industrial applications. With a scanning range of 100 to 1000 mm and a repeat accuracy of 0.5 mm, this sensor ensures accurate distance measurement in various settings.

The sensor features a teach-in adjustment method, allowing for easy and flexible configuration. It operates within a voltage supply range of 15 to 30 VDC and provides a current output signal ranging from 4 to 20 mA or 20 to 4 mA, with a maximum output current of 20 mA, making it versatile for different application needs.

General Data

• Part Number: 10148822
• Model Number: UNAM 18I6903/S14
• Type: Ultrasonic distance measuring sensor
• Scanning Range: 100 to 1000 mm
• Repeat Accuracy: 0.5 mm
• Adjustment Method: Teach-in
• Housing Material: Brass, nickel-plated
• Design: Cylindrical, threaded

Electrical Data

• Voltage Supply Range (+Vs): 15 to 30 VDC
• Output Signal: Current output 4 to 20 mA or 20 to 4 mA
• Maximum Output Current: 20 mA
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes

Mechanical Data

• Width / Diameter: Not specified
• Height / Length: Not specified
• Depth: Not specified
• Design: Cylindrical, threaded
• Housing Material: Brass, nickel-plated
• Connection Types: Not specified

Ambient Conditions

• Operating Temperature: Not specified
• Protection Class: IP67

Applications

The Baumer UNAM18I6903/S14 ultrasonic distance measuring sensor is ideal for a wide range of industrial applications, including:

• Manufacturing: Ensuring accurate measurement in production lines.
• Packaging: Monitoring distances for packaging processes.
• Automotive: Measuring distances in assembly lines and automation.
• Logistics: Tracking and measuring distances in warehousing.
• Robotics: Integrating into robotic systems for precise distance measurement.
• Material Handling: Monitoring and controlling distances in conveyor systems.
