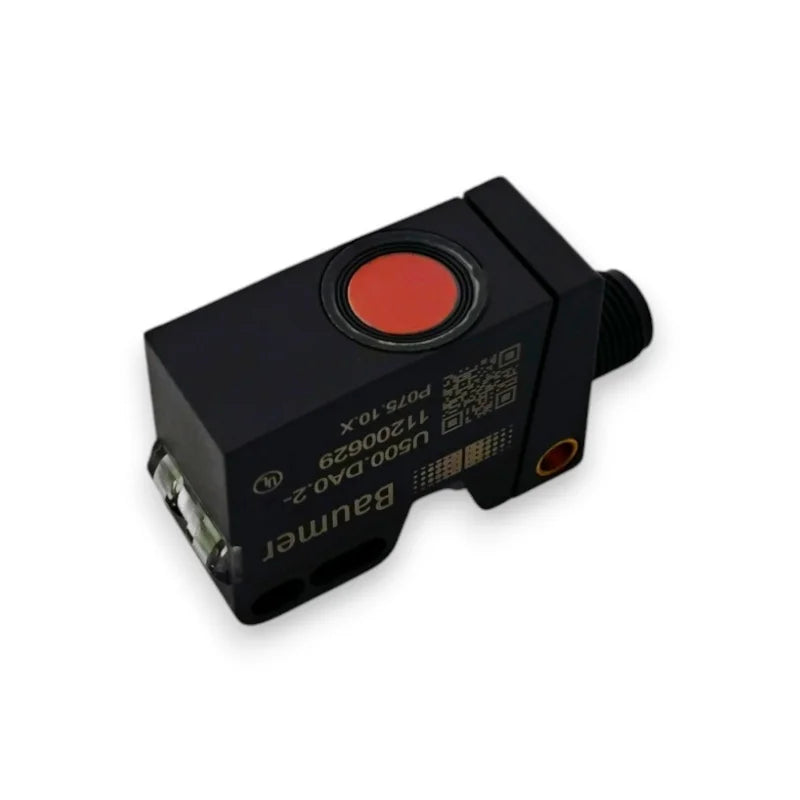

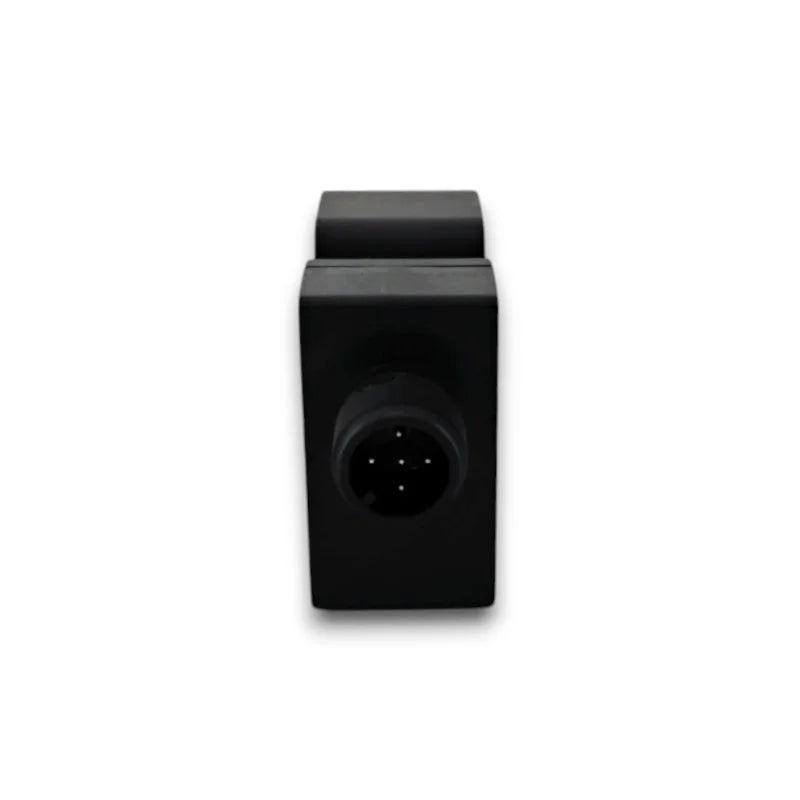

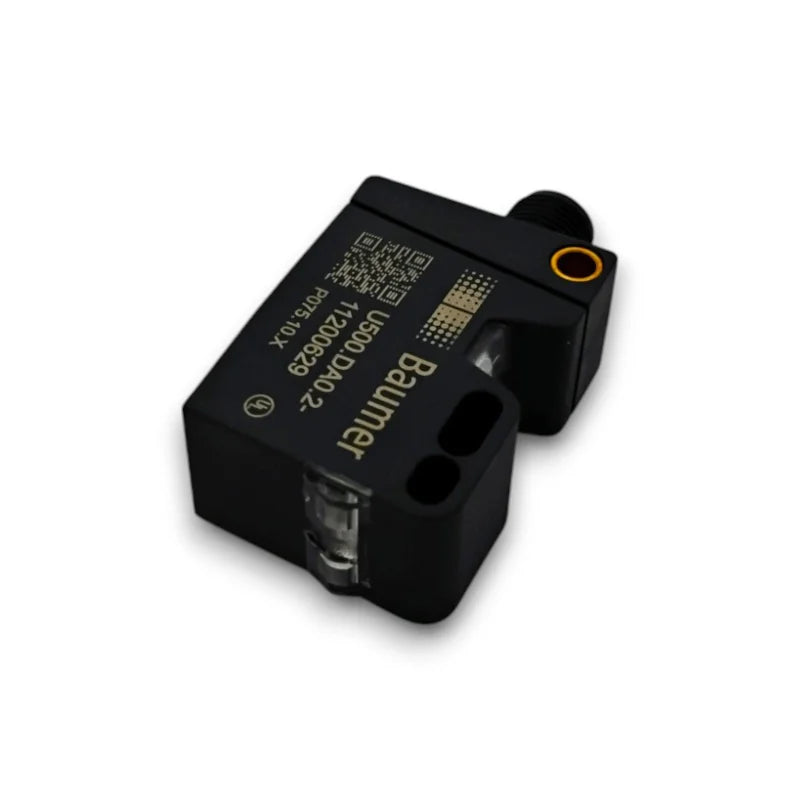

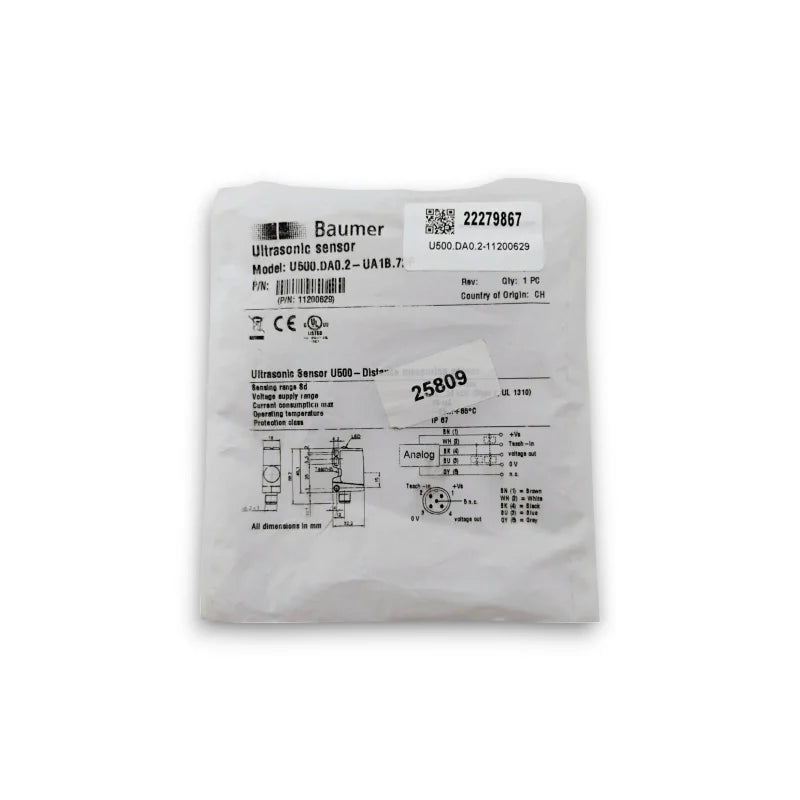

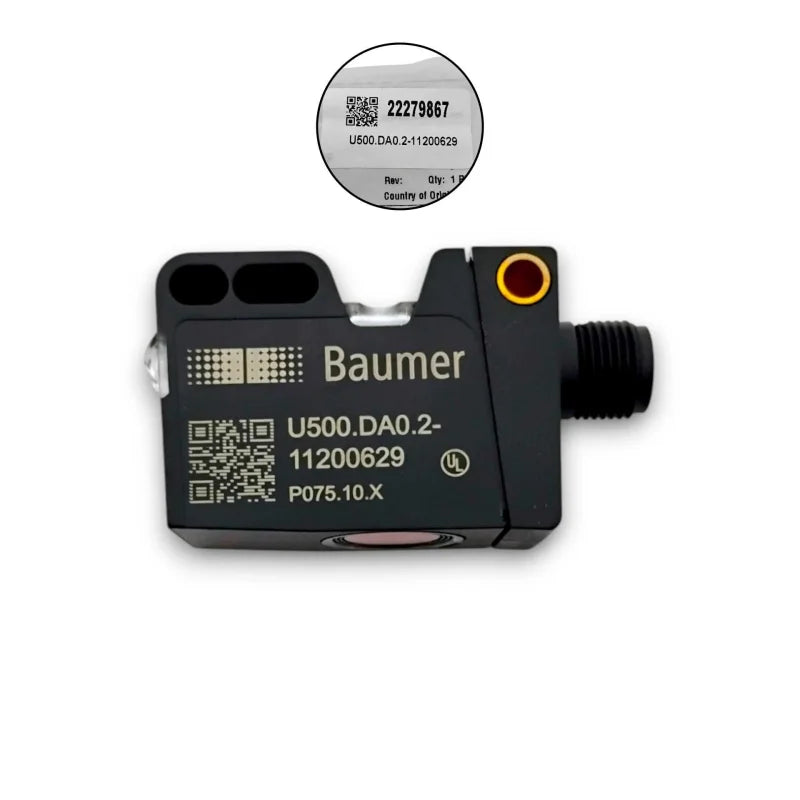

Baumer U500.DA0.2-11200629 Ultrasonic Sensor

Baumer U500.DA0.2-11200629 Ultrasonic Sensor

Article No. 11200629

The Baumer U500.DA0.2-11200629 Ultrasonic Sensor provides accurate, non-contact distance measurement with a scanning range of 20 to 1,000 mm. Its robust rectangular housing and IP67 protection make it ideal for tough industrial environments. This sensor operates with a resolution under 0.3 mm and a repeat accuracy of 0.5 mm, ensuring dependable and precise measurements.

Featuring a 0–10 V / 10–0 V voltage output, it allows for smooth integration into analog control systems. The response and release times are under 40 ms, enabling quick reaction in fast-paced applications. Equipped with qTeach and line-Teach adjustment, users can easily set up or calibrate the sensor without complex programming.

It uses a 200 kHz sonic frequency and features both green (power) and yellow (status) LED indicators for clear, immediate feedback. The plastic housing (ASA, PMMA) and PEEK-coated active face enhance its resistance to environmental wear.

Ideal for applications requiring reliable object presence detection, level monitoring, or positioning, this sensor delivers consistent performance even in dusty, humid, or uneven conditions.

Key features :-

Applications :-

• Tank Level Monitoring: Measures liquid or bulk solid levels without contact, even in dusty or humid conditions.
• Packaging Line Detection: Ensures object presence or spacing during high-speed packaging tasks with reliable analog feedback.
• Material Height Sensing: Detects product height or position in filling, stacking, or sorting operations.
• Automated Guided Vehicles (AGVs): Provides obstacle detection or distance control for navigation in dynamic environments.
• Smart Conveyor Systems: Monitors spacing and flow of products for optimized sorting and throughput control.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
