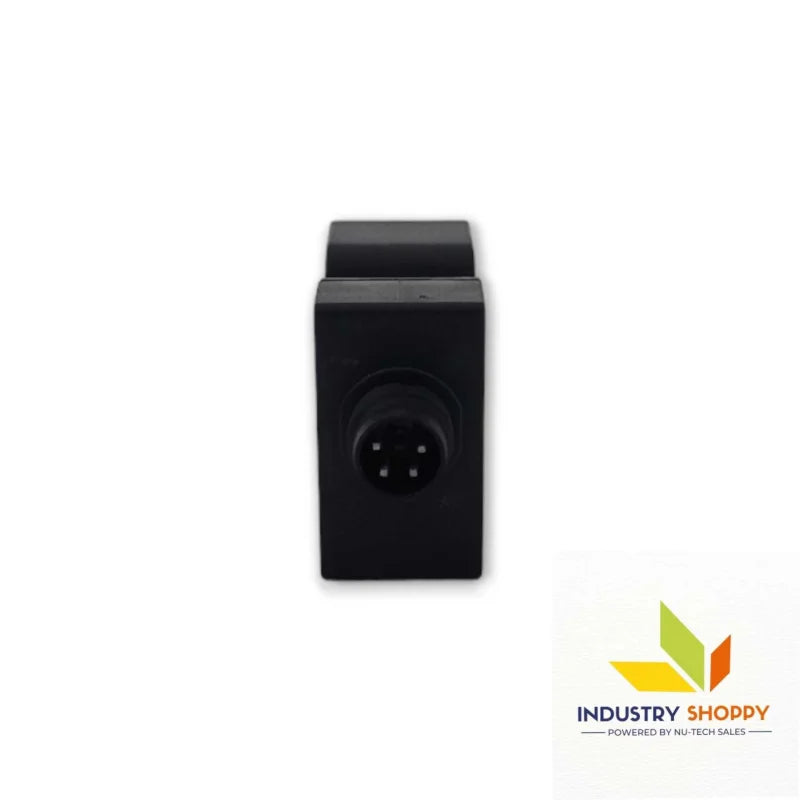

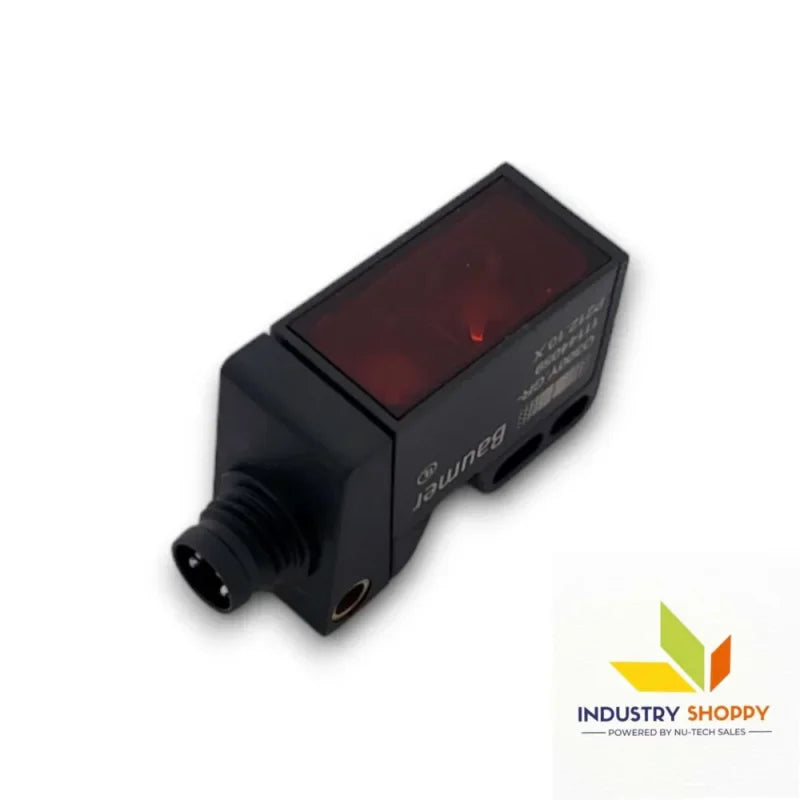

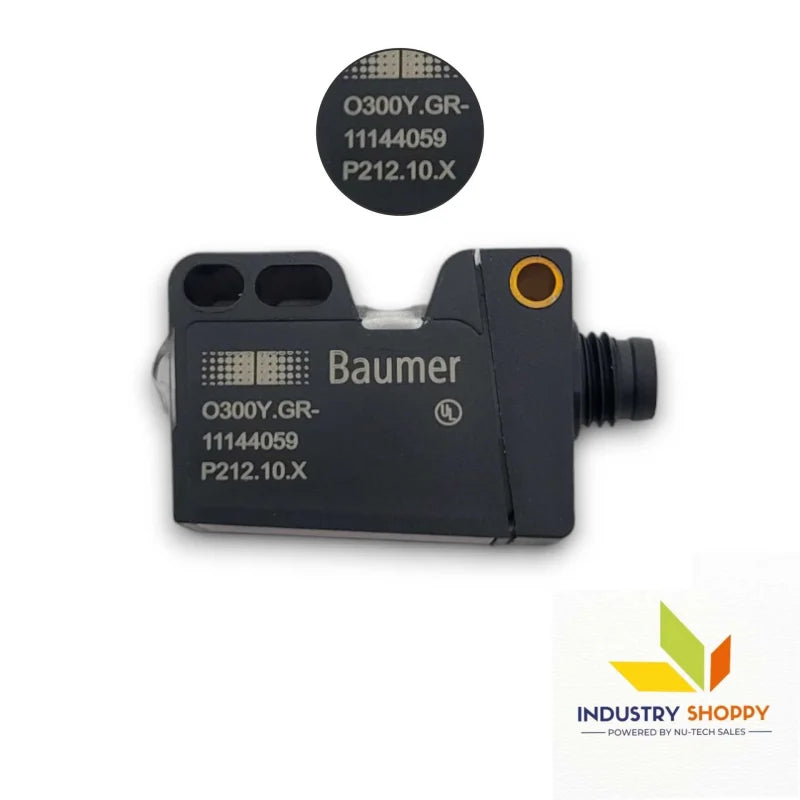

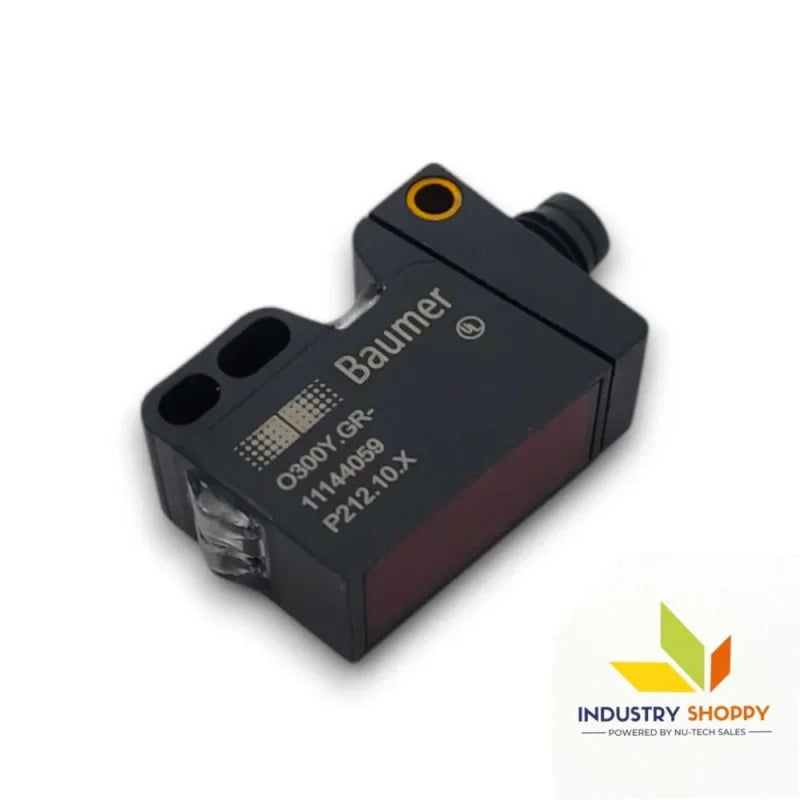

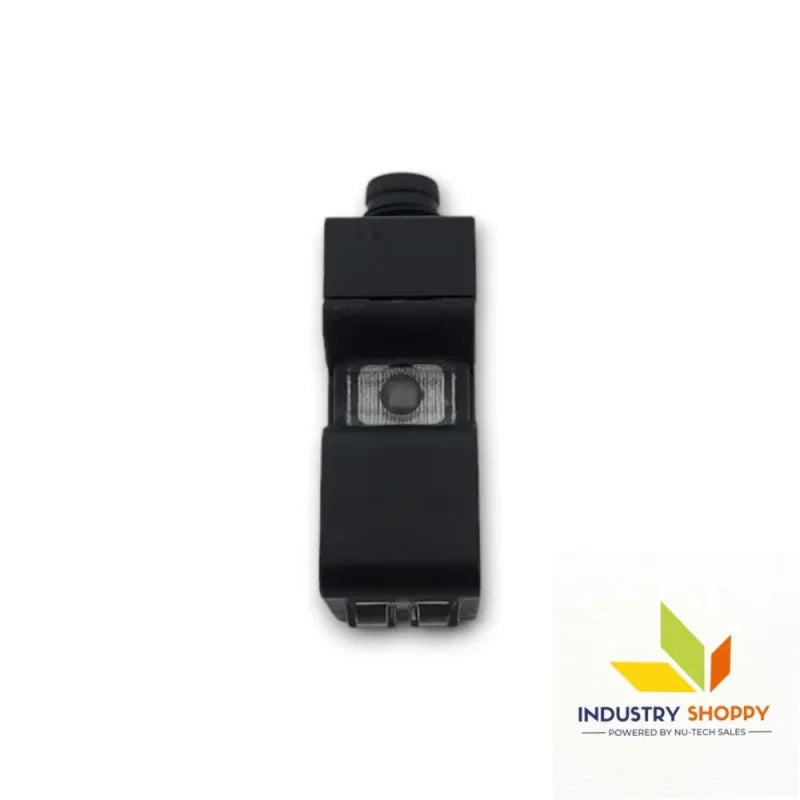

Baumer O300Y.GR-11144059 Photoelectric Sensor

Baumer O300Y.GR-11144059 Photoelectric Sensor

The Baumer O300Y.GR-11144059 Photoelectric Sensor is a high-performance diffuse sensor designed for precise detection in industrial applications. It features a versatile sensing distance range from 30 mm to 300 mm and a sensing range (Tb) of 15 mm to 300 mm. This sensor utilizes a pulsed red LED light source, ensuring accurate and reliable performance.

Key Features:

• Part Number: 11144059
• Model Number: O300Y.GR-PV1T.72N/T003
• Type: Diffuse sensor
• Sensing Distance (Tw): 30 mm to 300 mm
• Sensing Range (Tb): 15 mm to 300 mm
• Power On Indication: LED green
• Light Indicator: LED yellow
• Sensing Distance Adjustment: qTeach / 1-Step Teach-in
• Suppression of Reciprocal Influence: Yes
• Alignment Optical Axis: < 2°
• Light Source: Pulsed red LED
• Response Time / Release Time: < 1 ms
• Voltage Supply Range (+Vs): 10 to 30 VDC
• Current Consumption Max. (No Load): 45 mA
• Current Consumption Typ.: 30 mA
• Voltage Drop (Vd): < 3 VDC
• Output Function: Light / dark operate
• Output Circuit: PNP complementary
• Output Current: 100 mA
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes
• Design: Rectangular
• Housing Material: Plastic (ASA, PMMA)
• Front (Optics): PMMA
• Dimensions: 12.9 mm (width), 32.3 mm (height), 23 mm (depth)
• Connection Types: Connector M8 4 pin
• Protection Class: IP 67
• Operating Temperature: -25°C to +60°C

Applications: The O300Y.GR-11144059 retro-reflective photoelectric sensor is ideal for applications in material handling, automated manufacturing, and packaging industries, where it detects objects on conveyors or production lines. Its compact design and polarization filter make it suitable for detecting reflective or transparent materials, while its robust build ensures reliable performance in harsh environments such as automotive assembly lines, access control systems, and security applications.

Technical Precautions:

• Ensure proper installation and secure connection to avoid any operational issues.
• Always handle the sensor carefully to prevent damage to the cable and sensor body.
• Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
• Maintain the sensor within the specified operating temperature range for optimal performance.
• Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.
