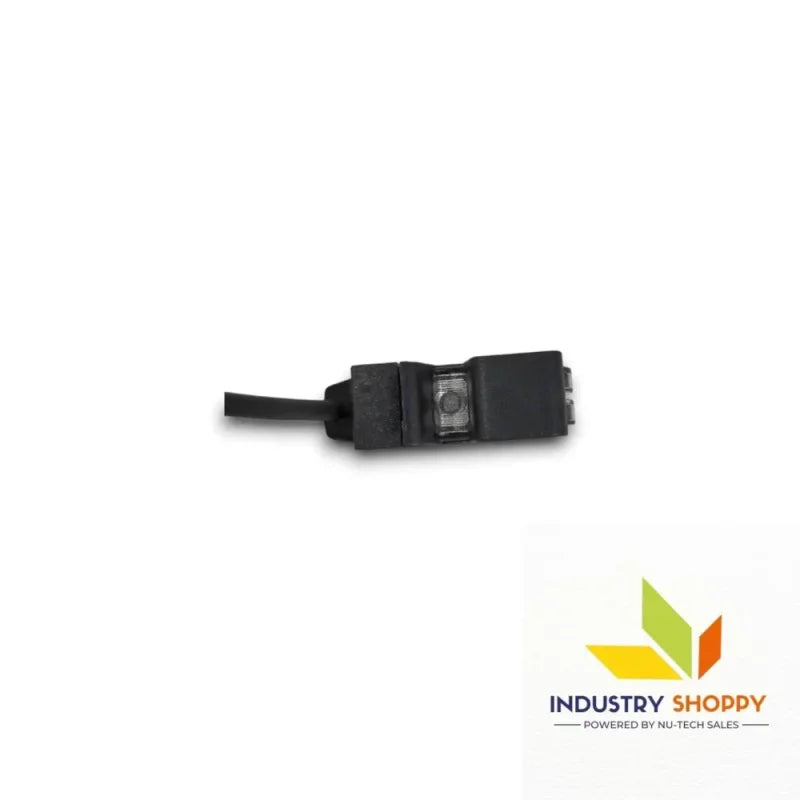

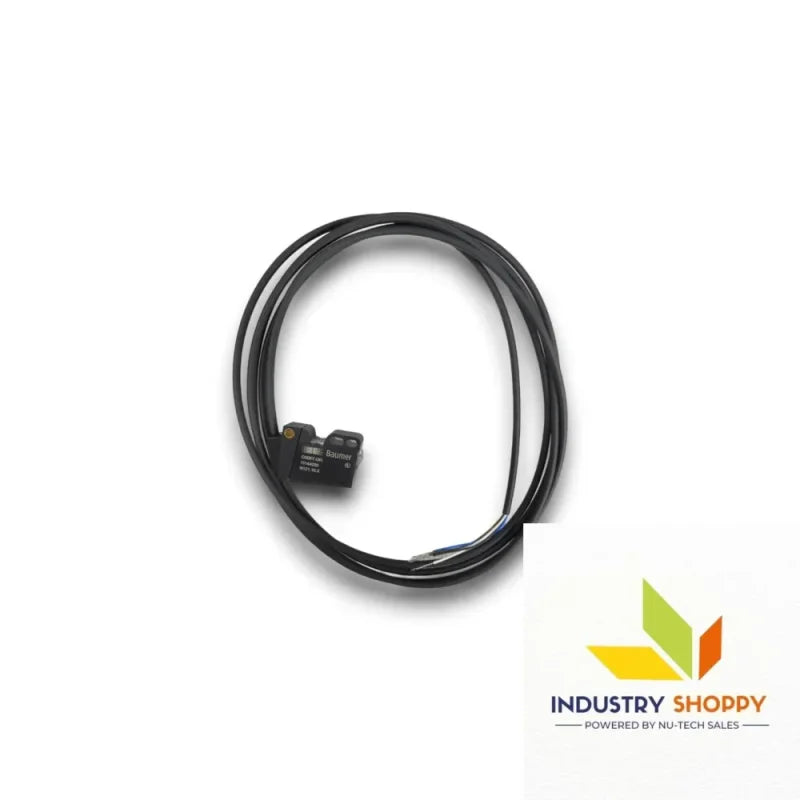

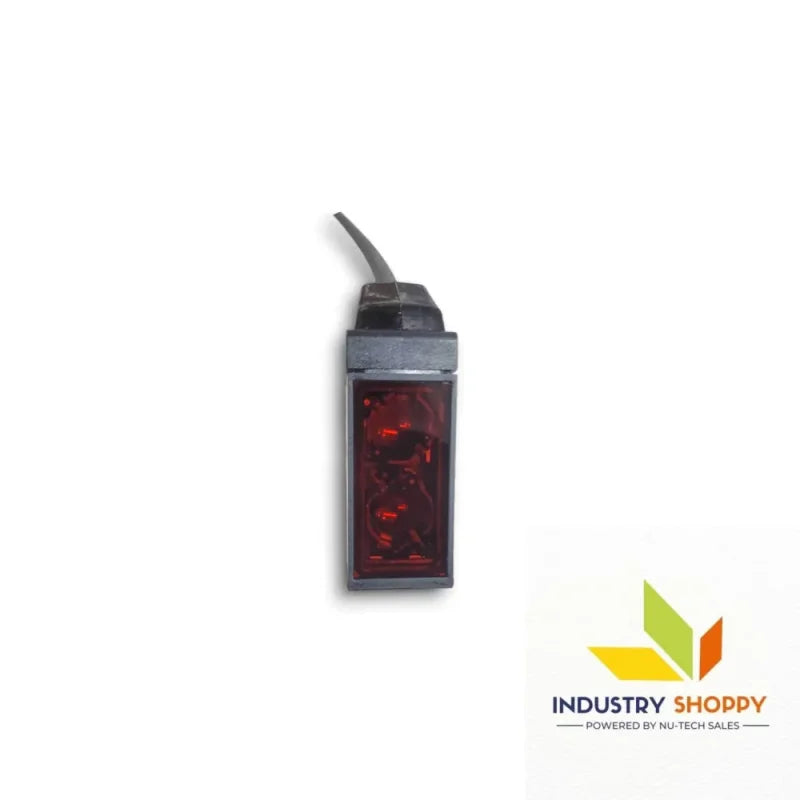

Baumer O300Y.GR-11144035 Photoelectric Sensor

Baumer O300Y.GR-11144035 Photoelectric Sensor

The Baumer O300Y.GR-11144035 Photoelectric Sensor is a high-performance background suppression sensor designed to provide precise and reliable detection in industrial applications. With a sensing distance range from 30 to 300 mm and qTeach adjustment, it ensures accurate detection of objects.

General Data:

• Part Number: 11144035
• Model Number: O300.GR-NV1T.72CU/T003
• Type: Background suppression
• Sensing Distance Tw: 30 to 300 mm
• Sensing Range Tb: 15 to 300 mm
• Power On Indication: LED green
• Light Indicator: LED yellow
• Sensing Distance Adjustment: qTeach / 1-Step Teach-in
• Suppression of Reciprocal Influence: Yes
• Alignment Optical Axis: < 2°

Light Source:

• Light Source: Pulsed red LED
• Wavelength: 630 nm

Electrical Data:

• Response Time / Release Time: < 1 ms
• Voltage Supply Range (+Vs): 10 to 30 VDC
• Current Consumption Max. (No Load): 45 mA
• Current Consumption Typ.: 30 mA
• Voltage Drop (Vd): < 3 VDC
• Output Function: Light / dark operate
• Output Circuit: NPN complementary
• Output Current: 100 mA
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes

Mechanical Data:

• Width / Diameter: 12.9 mm
• Height / Length: 32.3 mm
• Depth: 23 mm
• Design: Rectangular
• Housing Material: Plastic (ASA, PMMA)
• Front (Optics): PMMA
• Connection Types: Cable 4 pin, 2 m

Ambient Conditions:

• Protection Class: IP 67
• Operating Temperature: -25 to +60 °C

Applications: Ideal for automation, packaging, and quality control tasks, the Baumer O300Y.GR sensor is designed to meet the demanding requirements of industrial detection.

Technical Precautions:

• Ensure proper installation and secure connection to avoid any operational issues.
• Always handle the sensor carefully to prevent damage to the cable and sensor body.
• Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
• Maintain the sensor within the specified operating temperature range for optimal performance.
• Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.
