Baumer O300.RR-11110444 Photoelectric Sensor

New Baumer O300.RR-11110444 Retro-Reflective Photoelectric Sensor

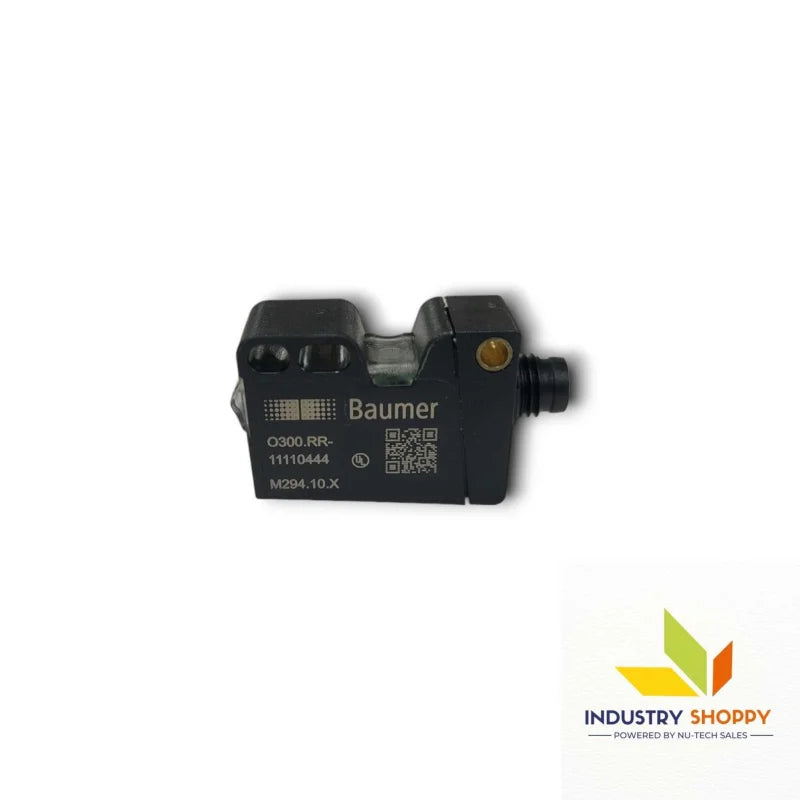

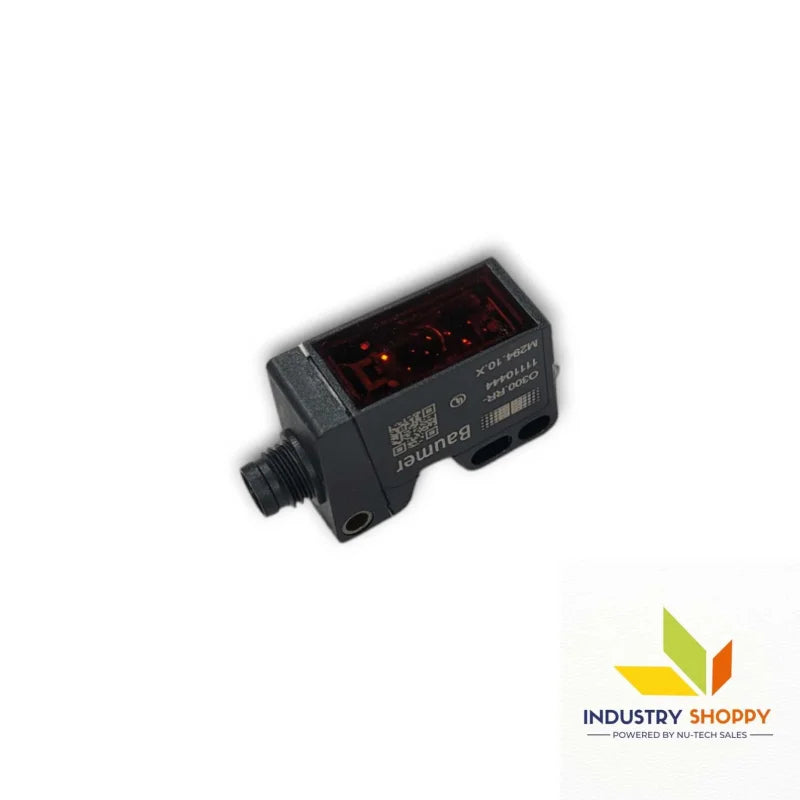

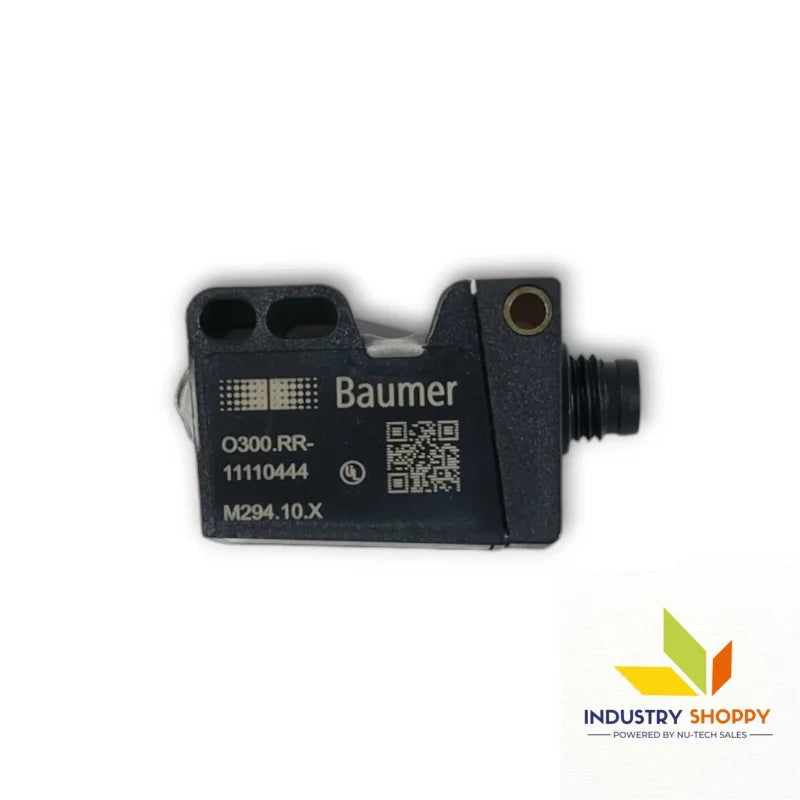

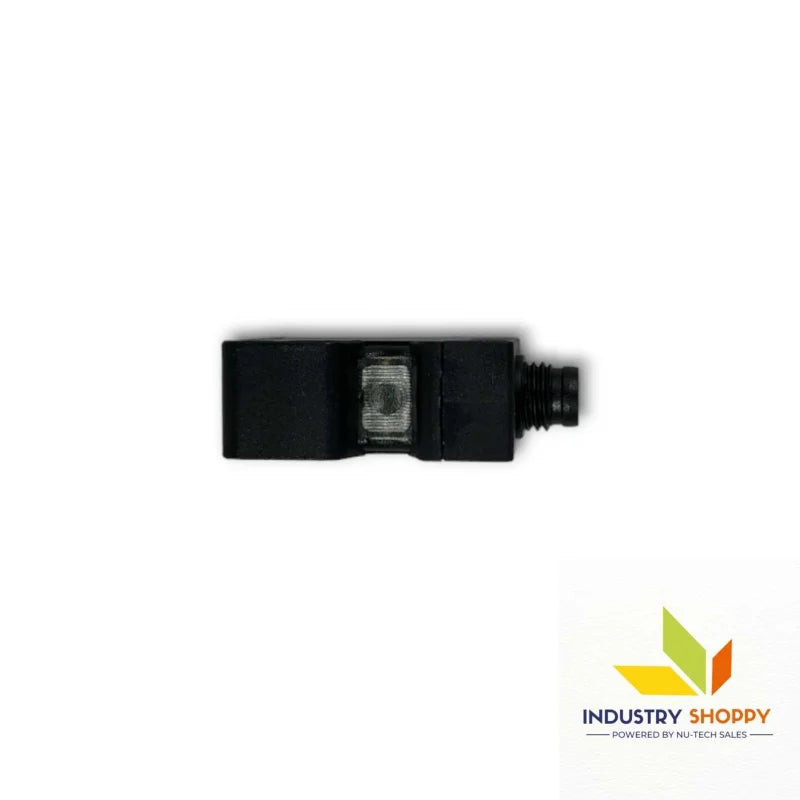

The Baumer O300.RR-11110444 (O300.RR-GD1Z.72N) retro-reflective photoelectric sensor is a compact, high-performance detection device with a pulsed red LED light source. It is designed for accurate object detection with a range of up to 4 meters, supported by a polarization filter and suppression of reciprocal influence to ensure reliable operation even in challenging conditions.

Key Features:

• Part Number: 11110444
• Model Number: O300.RR-GD1Z.72N
• Type: Retro-reflective sensor
• Light Source: Pulsed red LED (630 nm)
• Actual Range (Sb): 4 meters
• Nominal Range (Sn): 5 meters
• Polarization Filter: Yes
• Light Indicators: Yellow LED (operation), Green LED (power)
• Sensitivity Adjustment: No
• Alignment Optical Axis: < 2°

Electrical Data:

• Response/Release Time: < 0.49 ms
• Voltage Supply Range: 10 – 30 VDC
• Current Consumption: Max 30 mA
• Voltage Drop: < 3 VDC
• Output Function: Dark operate (Push-pull output)
• Max Output Current: 100 mA
• Protection: Short circuit and reverse polarity protection

Mechanical Data:

• Dimensions: 12.9 mm (Width), 32.3 mm (Height), 23 mm (Depth)
• Design: Rectangular
• Housing Material: Plastic (ASA, PMMA)

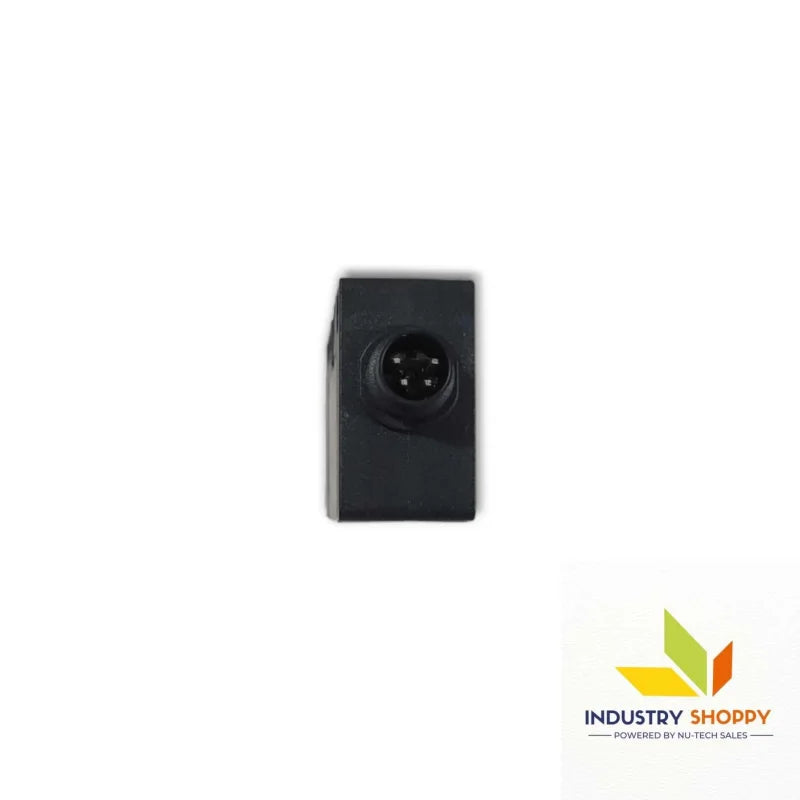

• Connection Type: M8, 4-pin connector

Ambient Conditions:

• Operating Temperature: -25°C to +60°C
• Protection Class: IP67

This sensor is ideal for industrial applications requiring precise, reliable detection in harsh environments. Its compact design, robust housing, and protective features ensure longevity and performance in challenging conditions.

Applications: The O300.RR-11110444 retro-reflective photoelectric sensor is ideal for applications in material handling, automated manufacturing, and packaging industries, where it detects objects on conveyors or production lines. Its compact design and polarization filter make it suitable for detecting reflective or transparent materials, while its robust build ensures reliable performance in harsh environments such as automotive assembly lines, access control systems, and security applications.

Technical Precautions:

• Ensure proper installation and secure connection to avoid any operational issues.
• Always handle the sensor carefully to prevent damage to the cable and sensor body.
• Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
• Maintain the sensor within the specified operating temperature range for optimal performance.
• Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.

Note : All tax and custom duty should be pay by buyer only.
