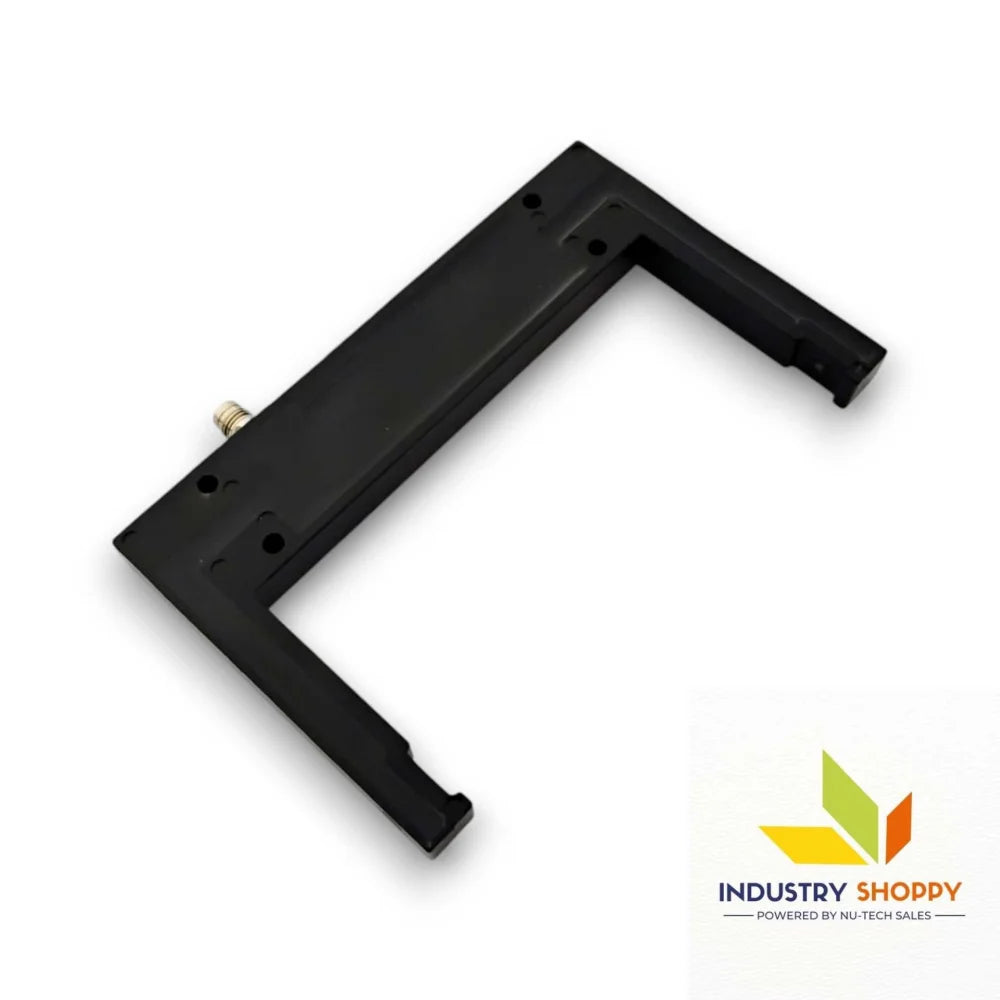

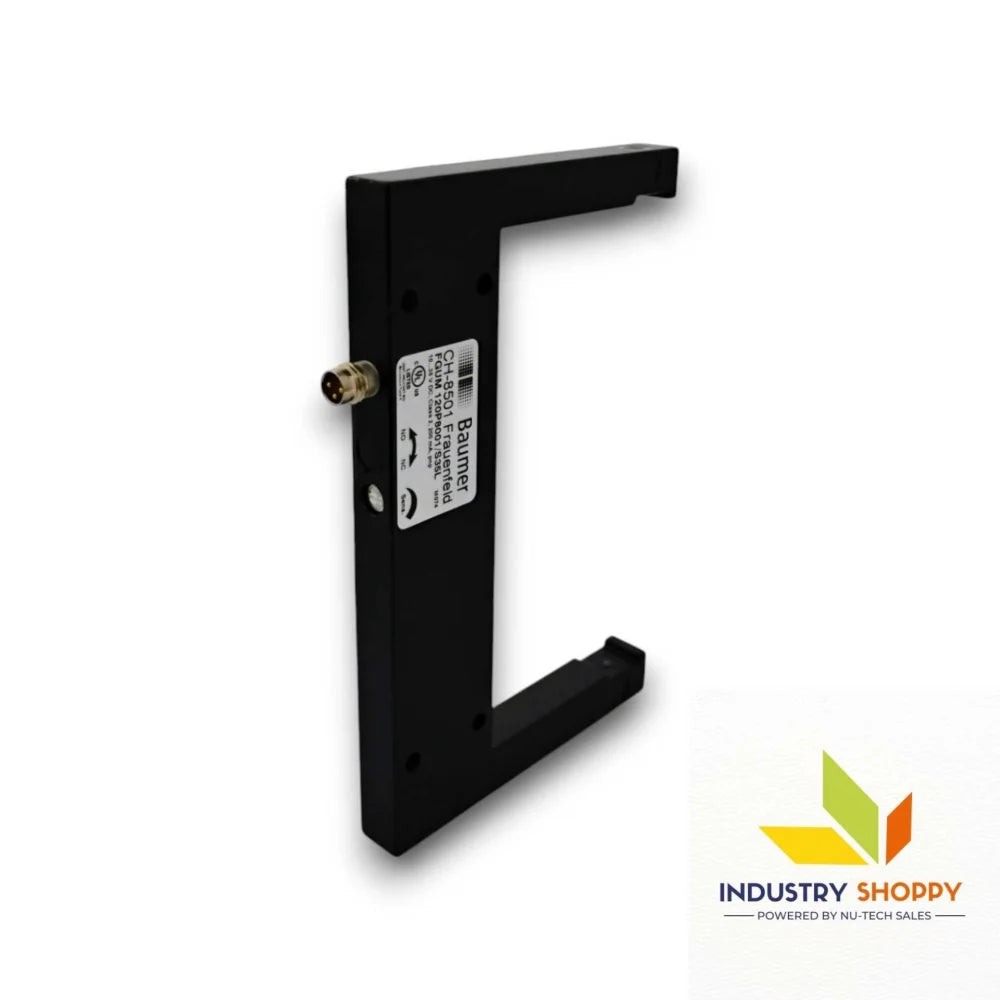

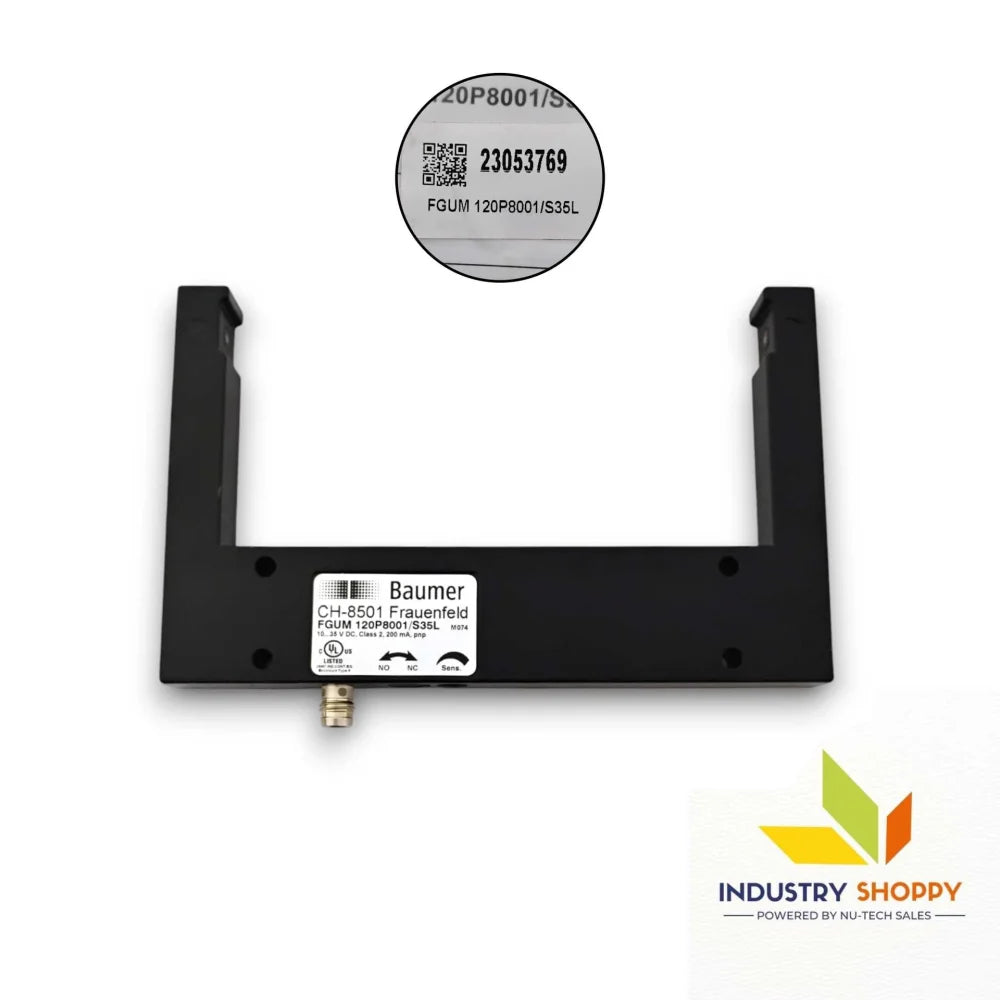

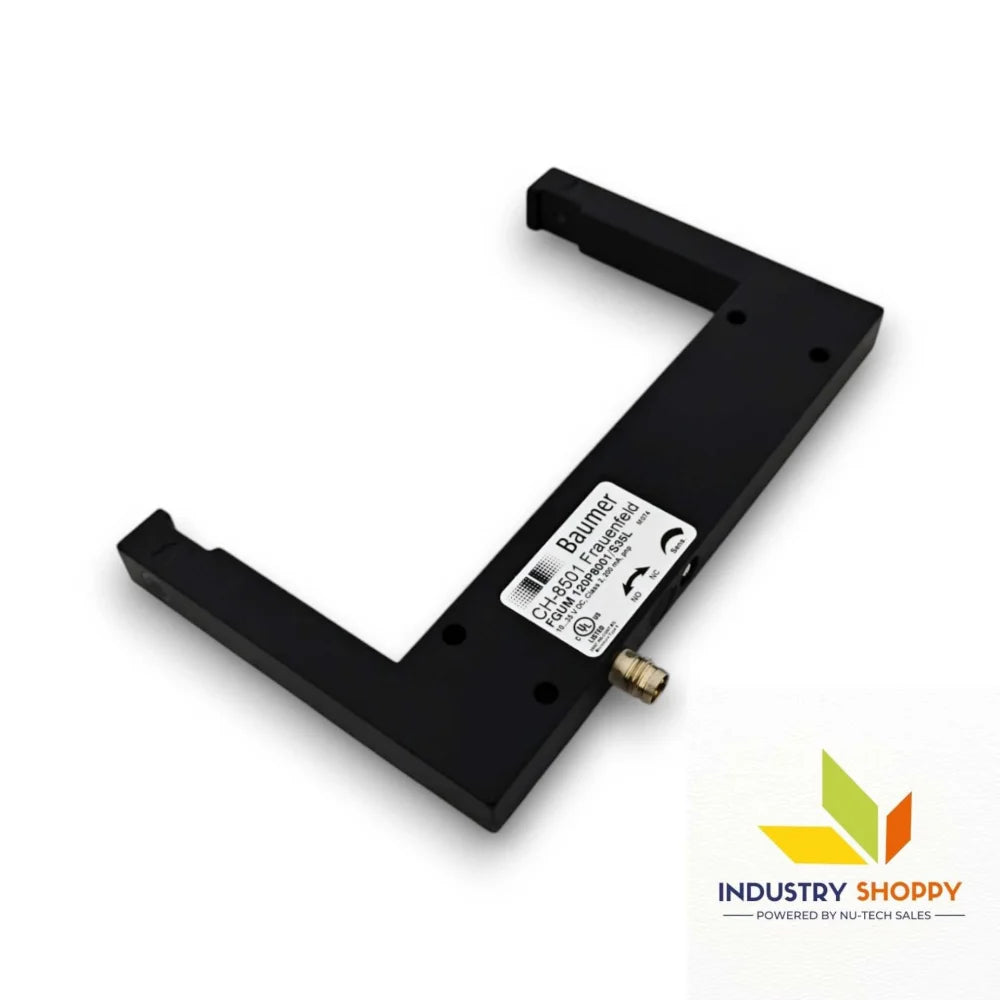

Baumer FGUM120P8001/S35L Fork Sensor

Baumer FGUM120P8001/S35L Fork Sensor – 120 mm Fork Width

Article No.: 10149153

The Baumer FGUM120P8001/S35L is a high-performance fork-type through-beam sensor engineered for precise object detection in fast-paced industrial environments. Featuring a 120 mm fork width and a response time of less than 0.25 ms, this sensor ensures accurate and rapid detection of objects as small as 0.8 mm. Its pulsed red LED light source (660 nm) enhances reliability in varying lighting conditions, and the PNP output with light/dark operate switchability offers versatile integration.

The robust die-cast zinc housing, IP67 protection, and wide operating temperature range from -10 to +60°C make it suitable for challenging industrial applications. The sensitivity is easily adjustable via a 270° potentiometer, allowing users to fine-tune performance to their specific needs.

Key Features:

Applications:

• Label and edge detection
• High-speed conveyor systems
• Packaging and automation lines
• Component counting and positioning

Technical Precautions:

• Use 10–35 VDC regulated power supply
• Avoid ambient light > 50 kLux
• Ensure polarity and wiring are correct
• Don’t exceed 200 mA output current
• Mount securely to prevent misalignment
• Protect from moisture and shock
• Maintain clean optical path
• Tighten M8 connector properly
