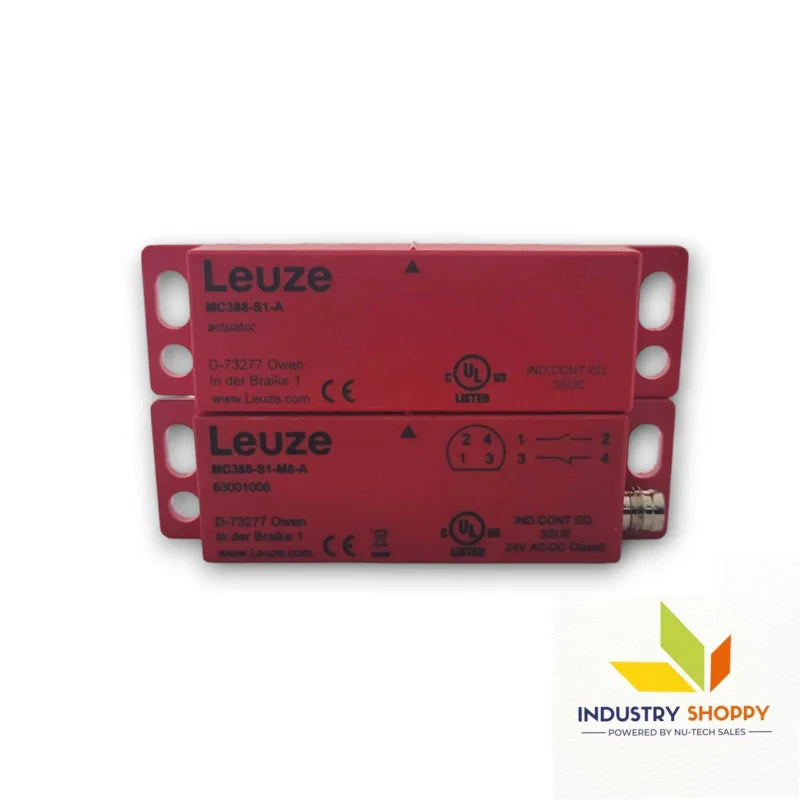

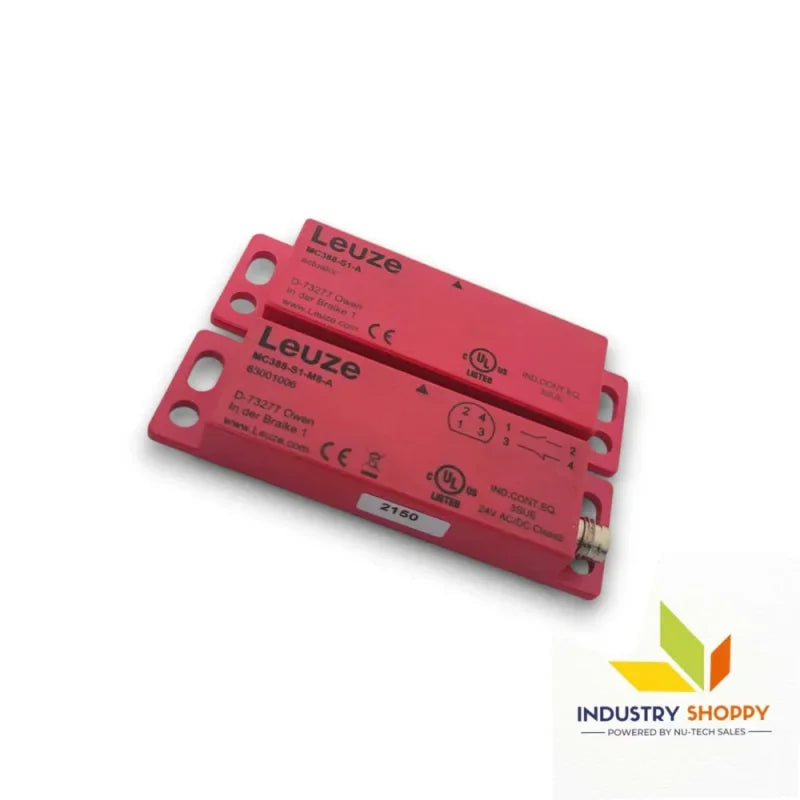

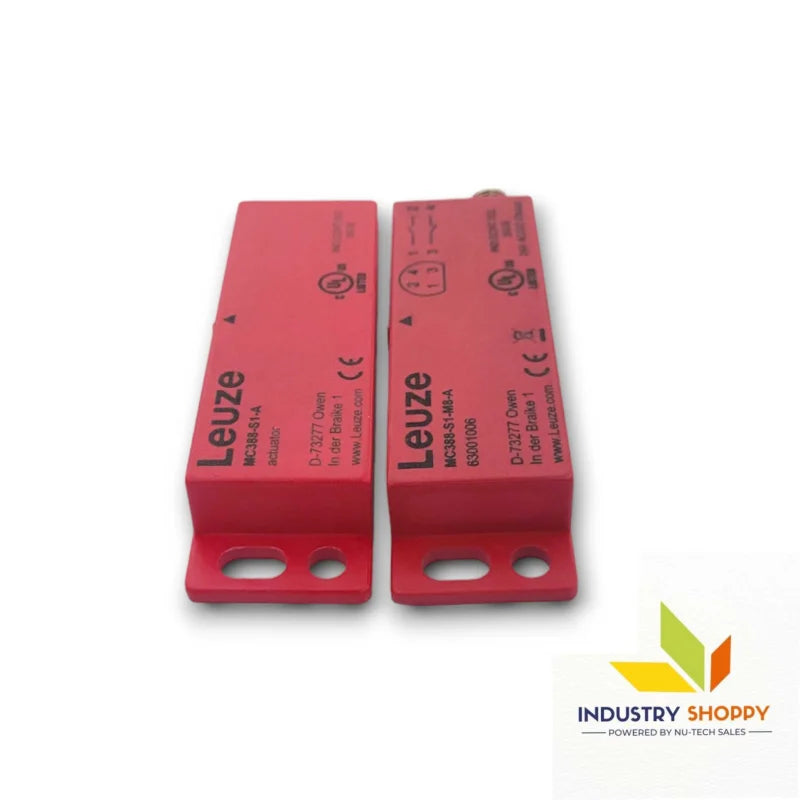

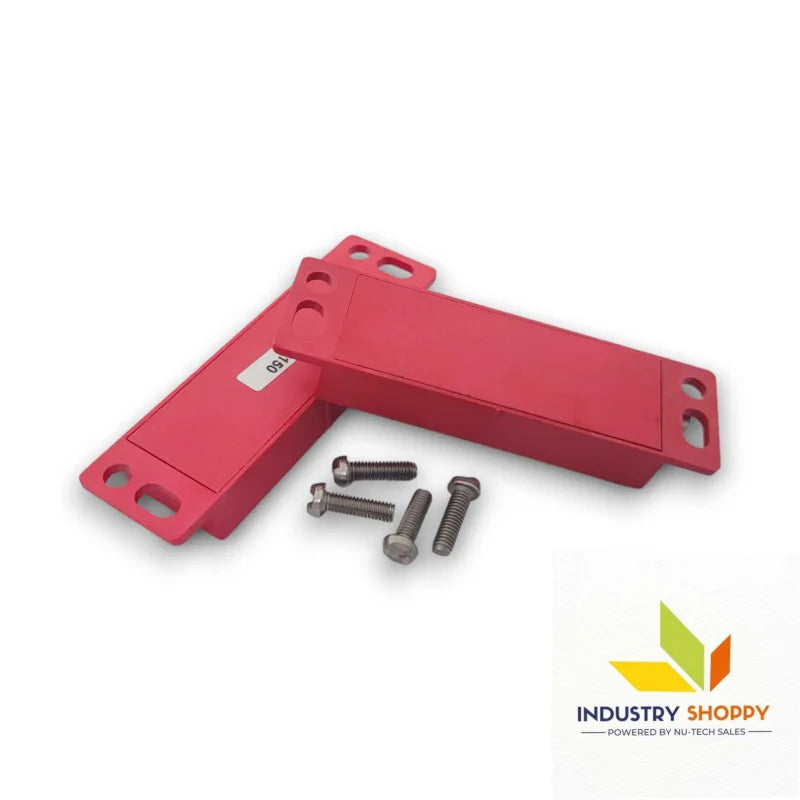

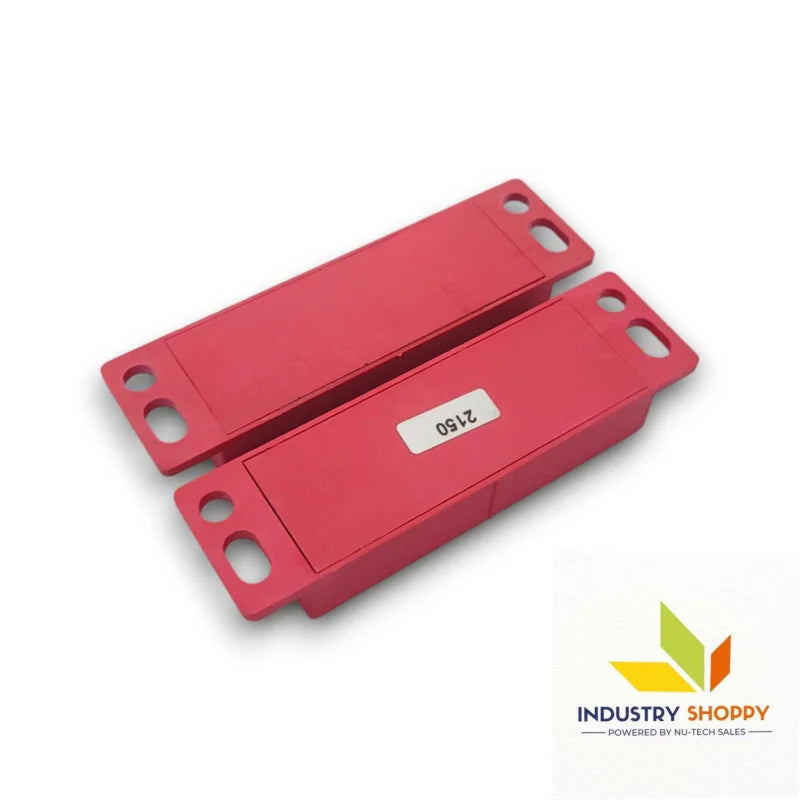

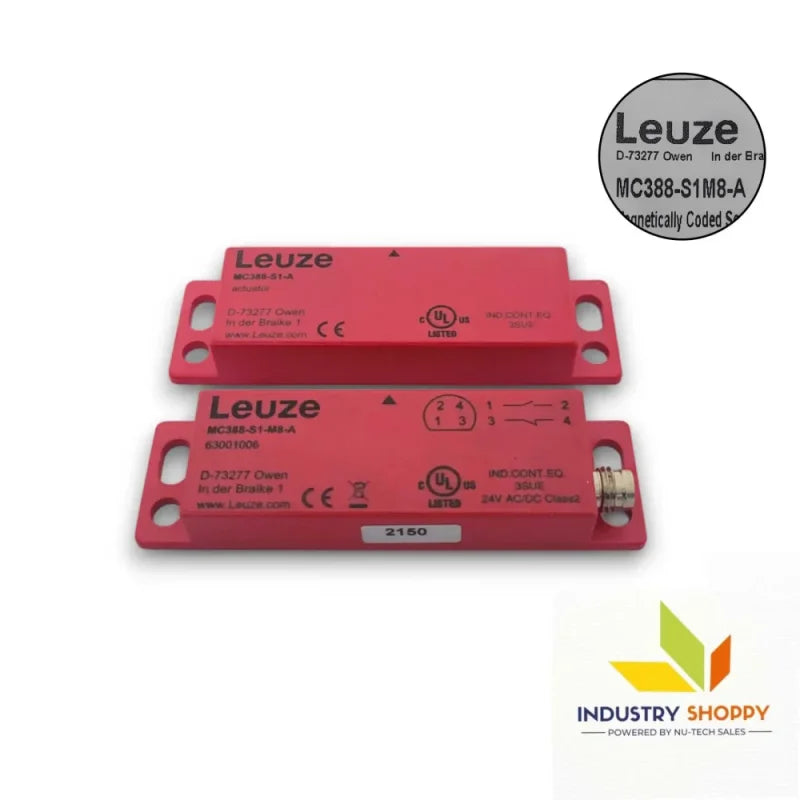

Leuze MC388-S1M8-A Magnetically Coded Sensor

Leuze MC388-S1M8-A Magnetically Coded Sensor

The Leuze MC388-S1M8-A Magnetically Coded Sensor (63001006) is a safety switch designed for integration into control circuits up to category 4, according to EN ISO 13849-1. It provides a reliable safety system when used in combination with evaluation units such as the MSI-MC310 safety relay or the MSI 400 safety controller. With a mission time of 20 years, the switch is built for long-lasting performance and a mechanical lifetime of 10,000,000 actuation cycles.

This safety switch features reed contacts (magnetically sensitive), providing a 1NC + 1NO contact allocation, with a maximum switching voltage of 27 V AC/DC and a switching current of up to 500 mA. It has a response time of 3 ms for quick and accurate performance, ensuring safety in applications requiring immediate shutoff or interlock functions.

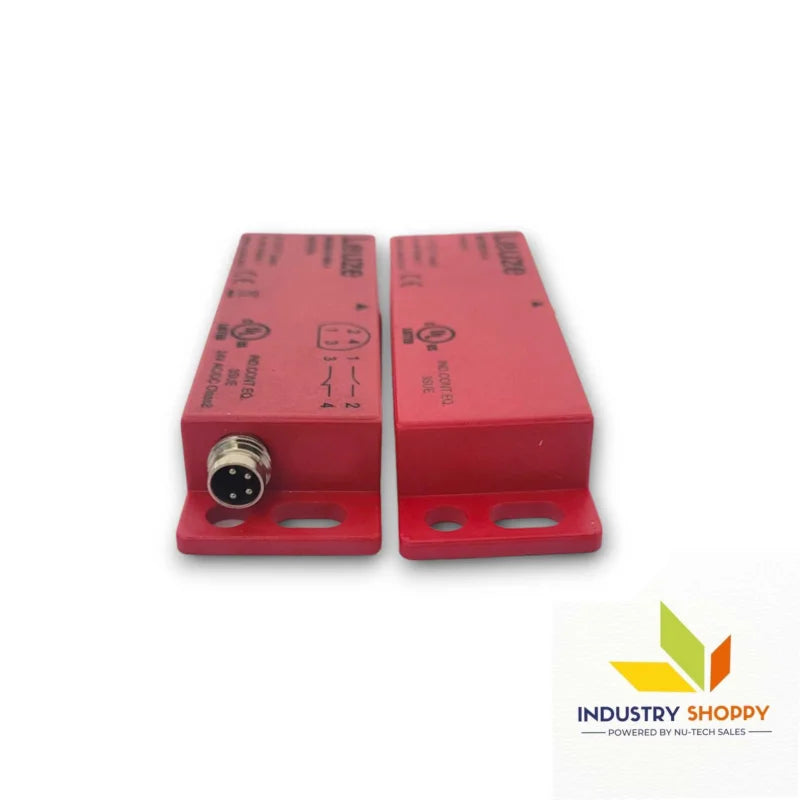

The plastic housing, made from glass fiber reinforced (PPS) material, is self-extinguishing and provides IP67 protection, making the switch suitable for challenging industrial environments. The M8 connector and 4-pin configuration allow for easy installation and integration into various systems.

The Leuze MC388-S1M8-A Magnetically Coded Sensor is also certified for safety by TÜV Süd, ensuring its reliability when paired with appropriate safety relays. Its magnetically coded external actuator ensures contactless actuation, providing a high level of operational safety. It operates in a wide range of ambient temperatures from -20°C to +70°C, offering durability across various industrial settings.

Applications

• Industrial Automation: Used for safety interlocks in machinery and automation systems.
• Safety Systems: Ideal for ensuring safe operation in hazardous environments.
• Control Systems: Perfect for use in circuits up to category 4 for high safety standards.
• Material Handling: Ensures safety in conveyors and industrial equipment.

Precautions

• Ensure Correct Wiring: Incorrect connections can cause sensor failure


• Avoid Overvoltage: Operating within 10-30V DC prevents damage


• Protect from Extreme Heat: Avoid installing near high-temperature sources


• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
