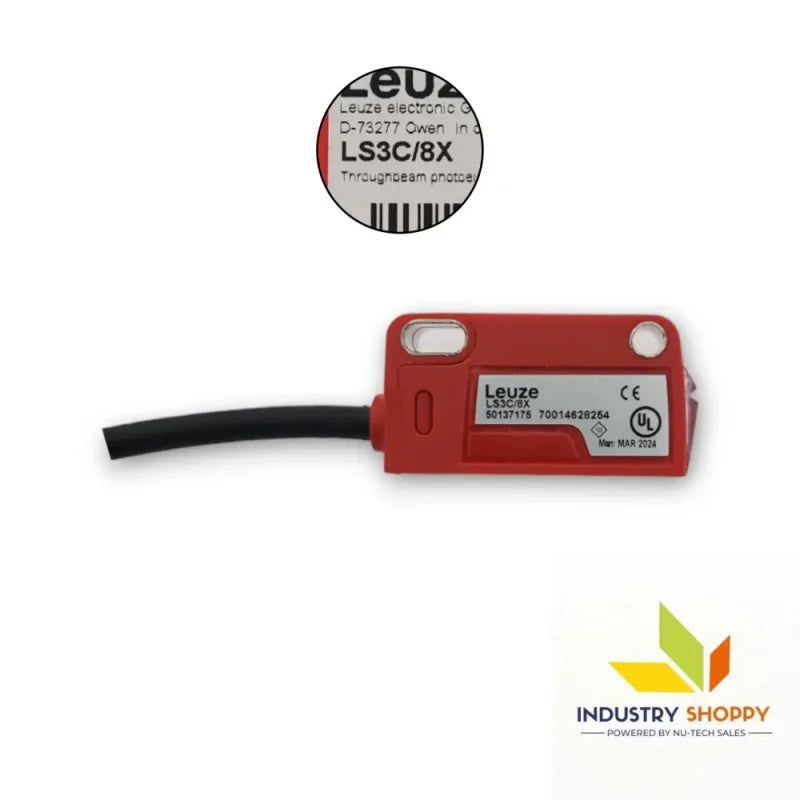

Leuze LS3C/8X Photoelectric Sensor Transmitter

Leuze LS3C/8X Photoelectric Sensor Transmitter

Leuze LS3C/8X Photoelectric Sensor Transmitter is a compact and high-performance sensor designed for reliable object detection over long distances. Operating on the through beam principle, it functions as a transmitter with a guaranteed operating range of up to 8.5 meters and a typical limit of 10 meters, making it ideal for precise long-range applications.

The sensor uses a red LED light source with a wavelength of 632 nm and produces a round, 4 mm light spot at 100 mm distance. The divergent beam path enhances detection consistency, while the LED is categorized in the exempt group for eye safety. It features polarity reversal and short circuit protection, ensuring stable operation across challenging environments.

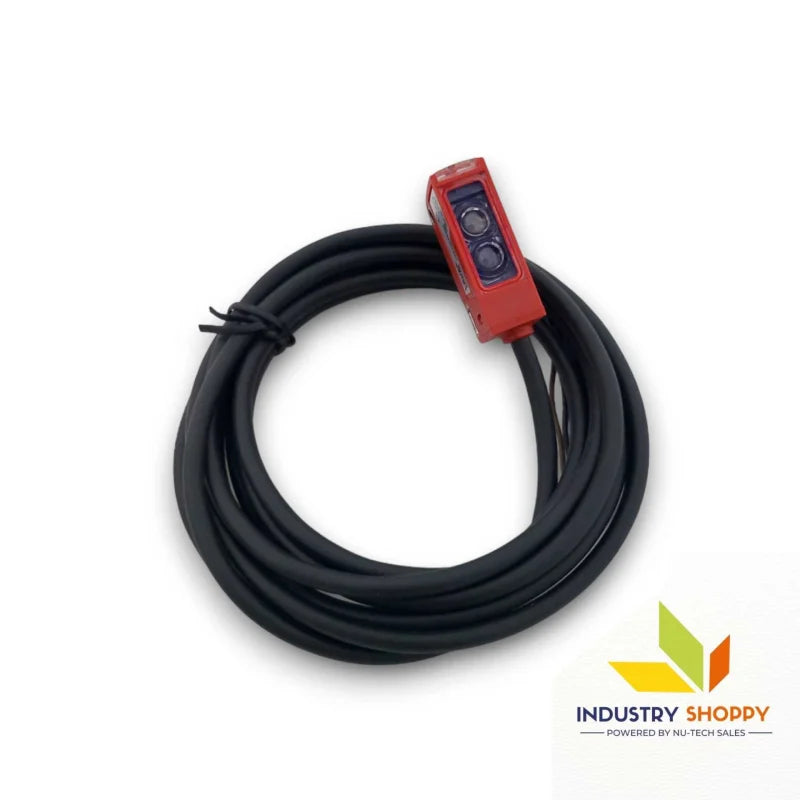

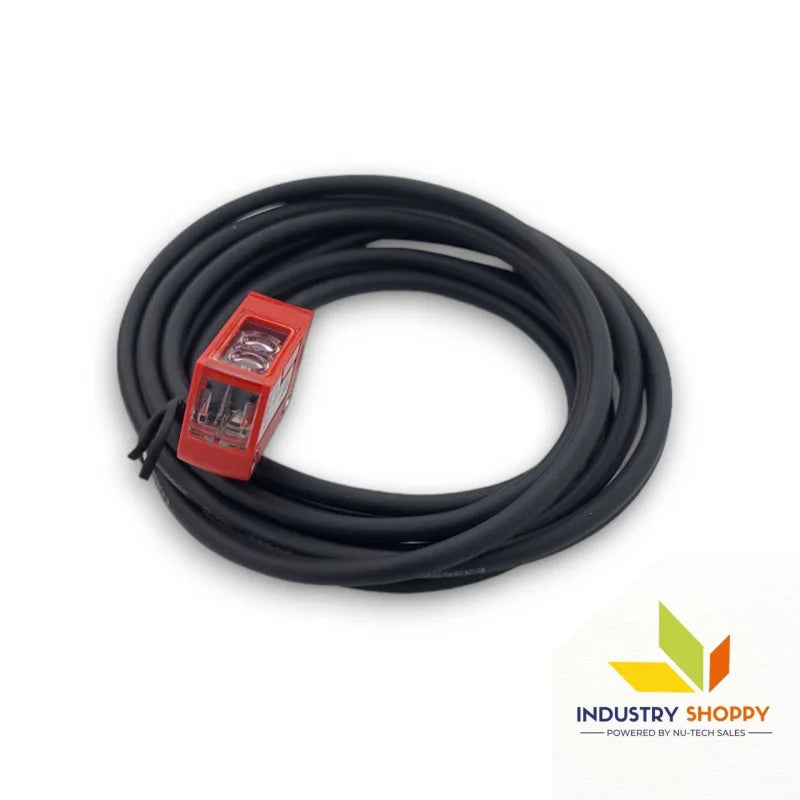

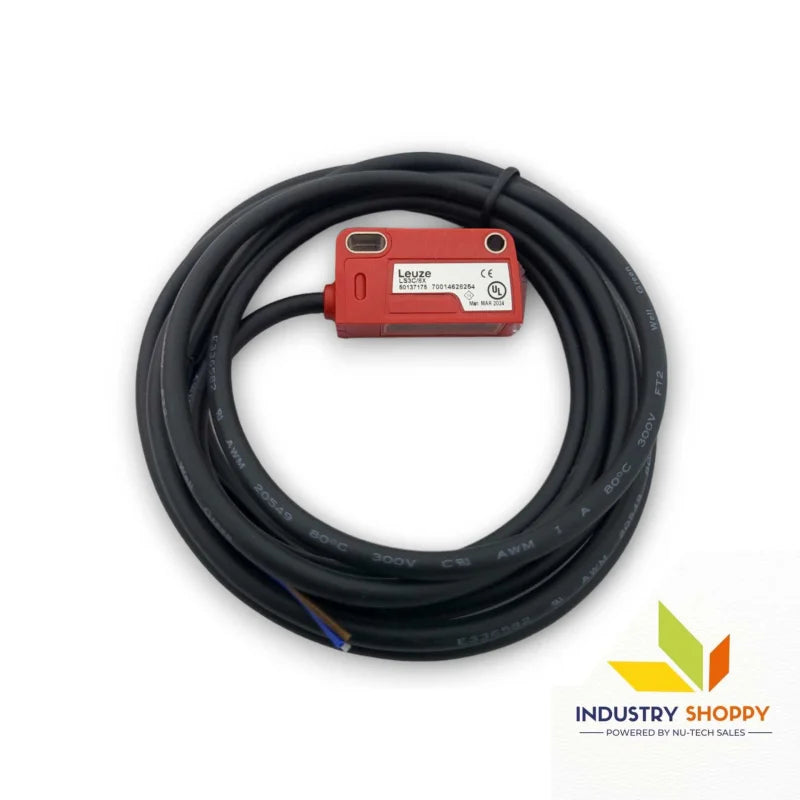

Designed with a rugged plastic housing (PC-ABS) and PMMA lens cover, the sensor is compact at 11.4 × 34.2 × 18.3 mm and weighs just 50 grams. It supports IP67 and IP69K protection, allowing usage in washdown areas and harsh conditions. The 4-wire PUR cable with 2-meter length ensures easy integration, and it meets ECOLAB compatibility and international safety standards.

Key features :-

Applications :-

• Packaging Line Control – Used to monitor object presence or absence across long conveyor spans, ensuring accurate packing and flow regulation.
• Material Positioning in Automation – Facilitates reliable long-distance alignment in automated assembly lines, even in dusty or humid environments.
• Bottling and Filling Systems – Detects the presence of containers or bottles on conveyors, enabling error-free filling or capping processes.
• Warehouse Sorting Systems – Helps verify item movement and positioning on high-speed belts, boosting reliability in logistics automation.
• Machine Guarding – Integrates into safety systems to detect obstructions or personnel at hazardous access points in industrial machinery setups.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
