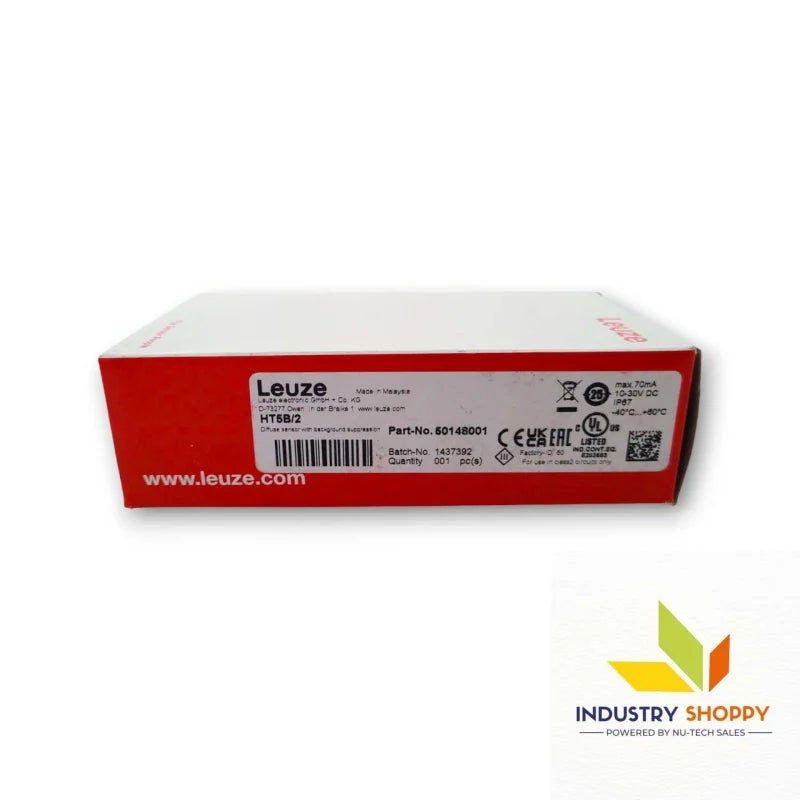

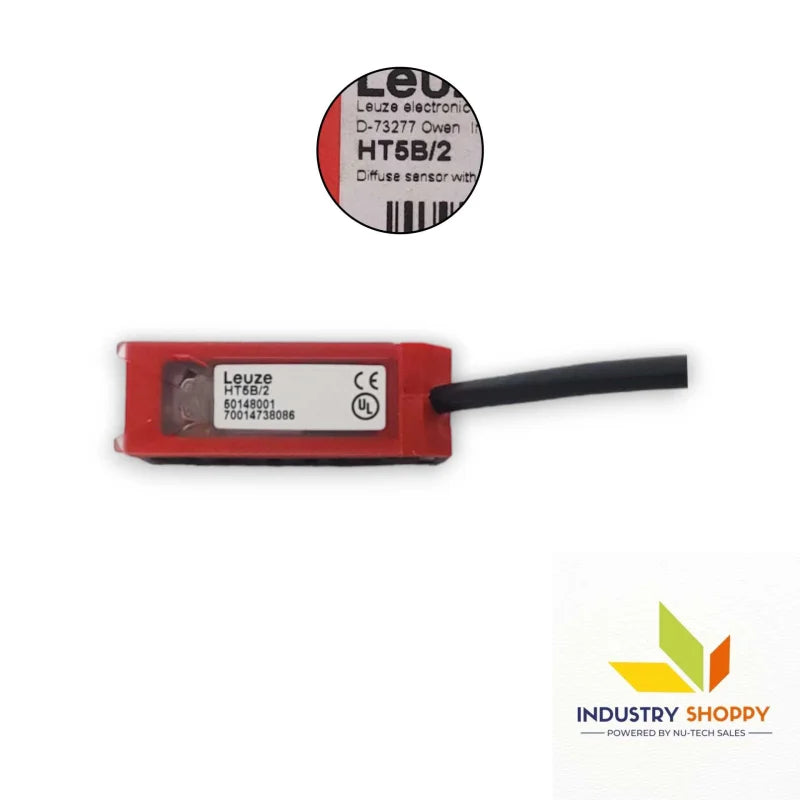

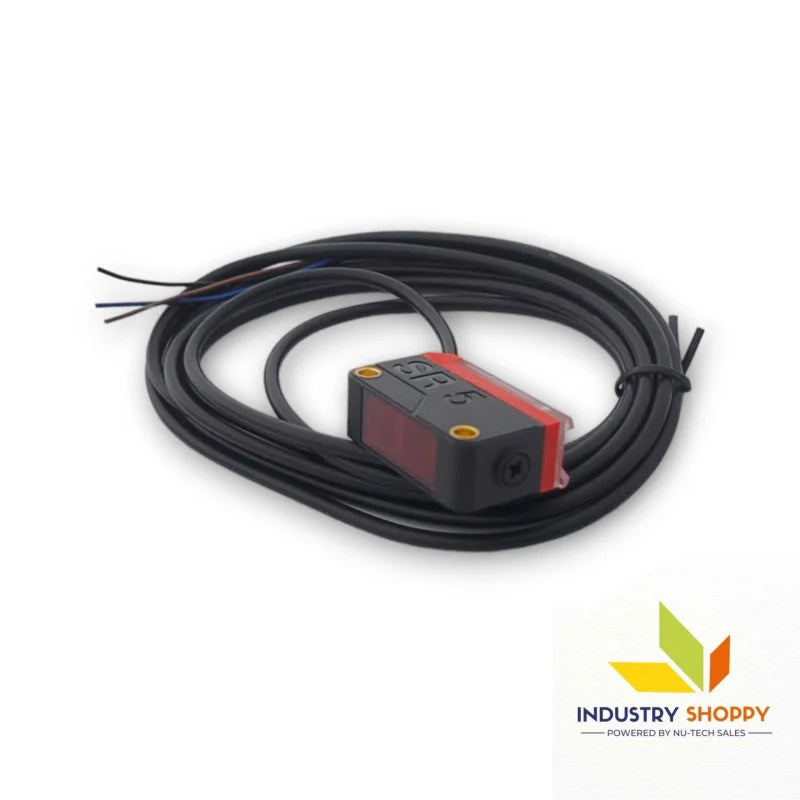

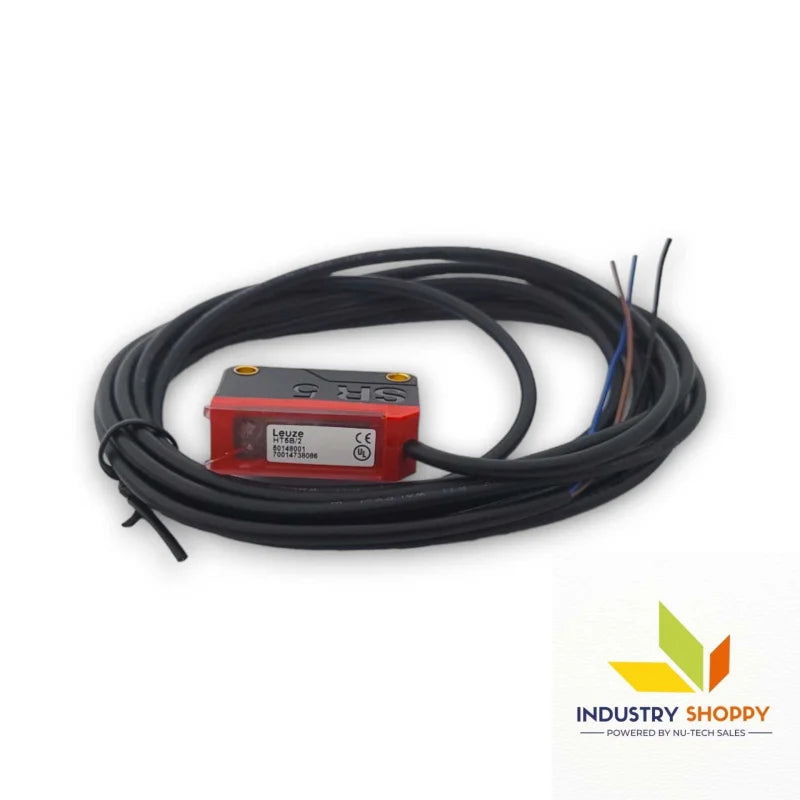

Leuze HT5B/2 Diffuse Sensor

Leuze HT5B/2 Diffuse Sensor

The Leuze HT5B/2 Diffuse Sensor is designed for reliable object detection using the diffuse reflection principle with background suppression. It offers a guaranteed operating range up to 0.4 meters for white targets, ensuring stable performance even with varying object colors and backgrounds.

This sensor uses a focused red LED light source at 645 nm to deliver accurate detection, with a fixed focal distance of 200 mm. The NPN transistor output supports both light and dark switching depending on polarity, offering versatility for seamless integration into control systems.

Built with an IP67-rated PC-ABS plastic housing, the HT5B/2 is resistant to dust, moisture, and harsh industrial conditions. Its compact size, LED indicators, and multiturn potentiometer for easy range adjustment simplify installation and maintenance.

Ideal for applications requiring quick response (0.5 ms), this sensor ensures reliable detection in automated material handling, sorting, and packaging processes — keeping your operations efficient and accurate.

Key features :-

Applications :-

• Material Handling: Ensures precise object detection in logistics and conveyor systems.
• Robotic Automation: Enables position sensing for robotic pick-and-place tasks.
• Packaging Lines: Verifies product presence for accurate packing and sealing.
• Assembly Lines: Detects parts to trigger automated process steps.
• Quality Control: Assists in monitoring object consistency and placement.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
