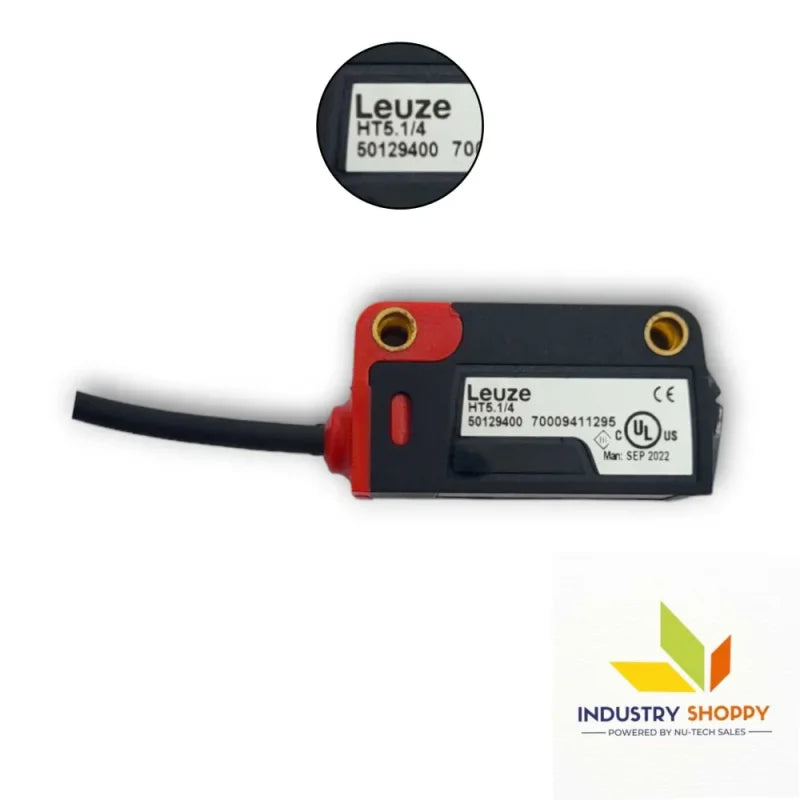

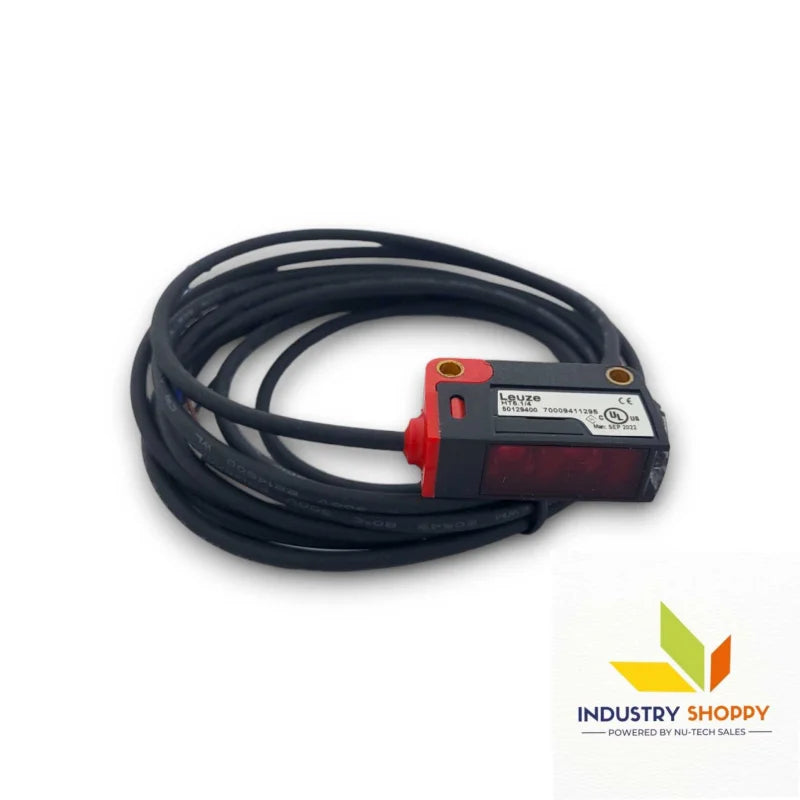

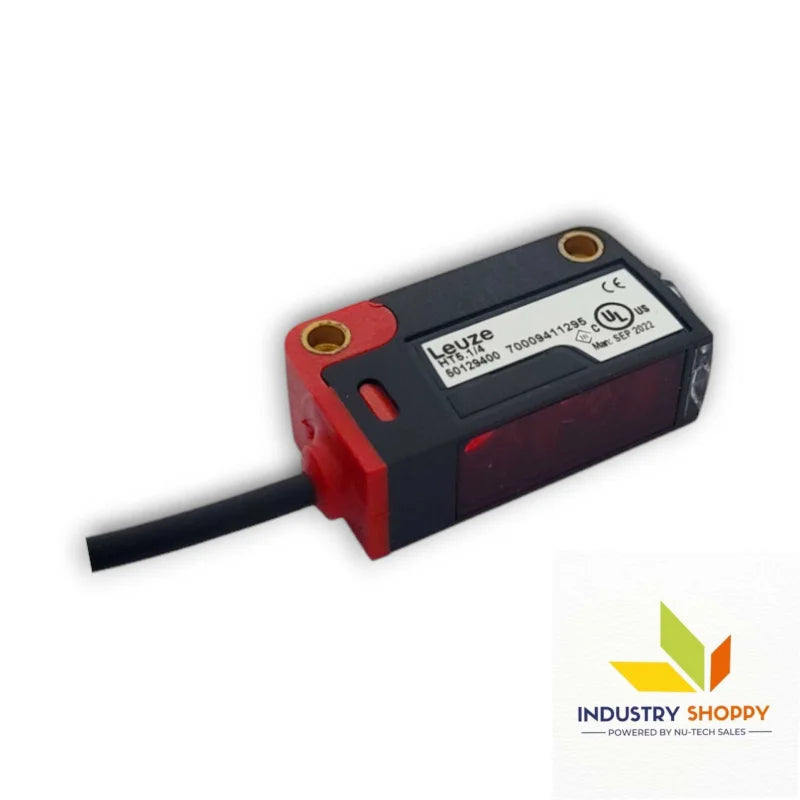

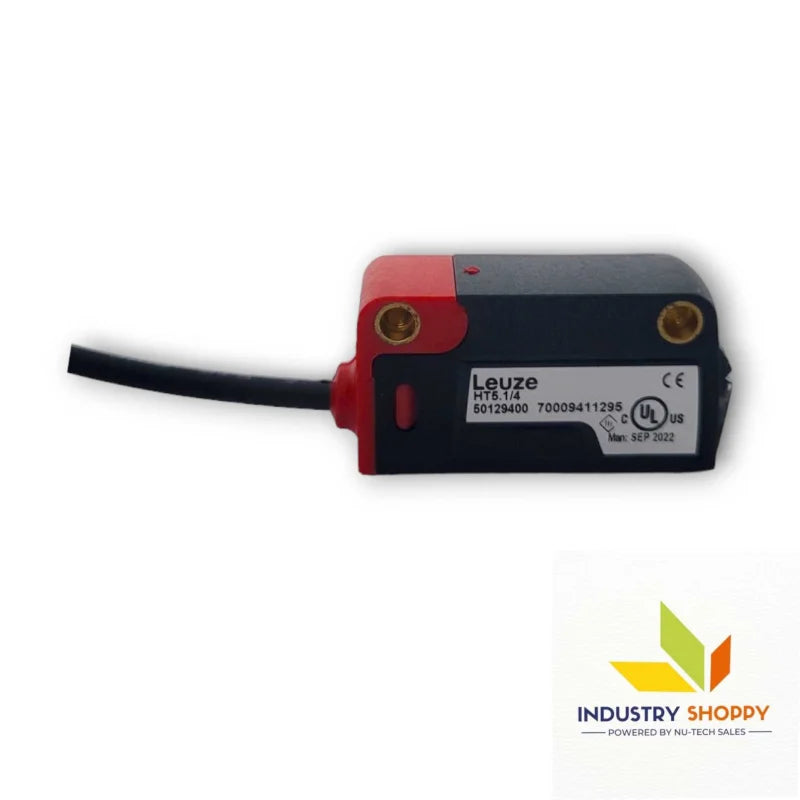

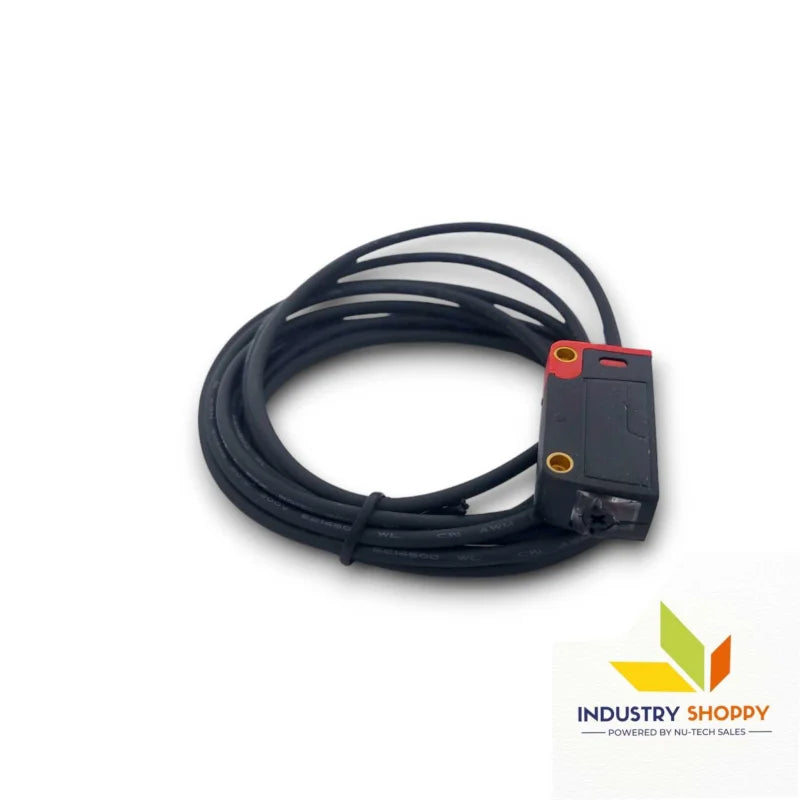

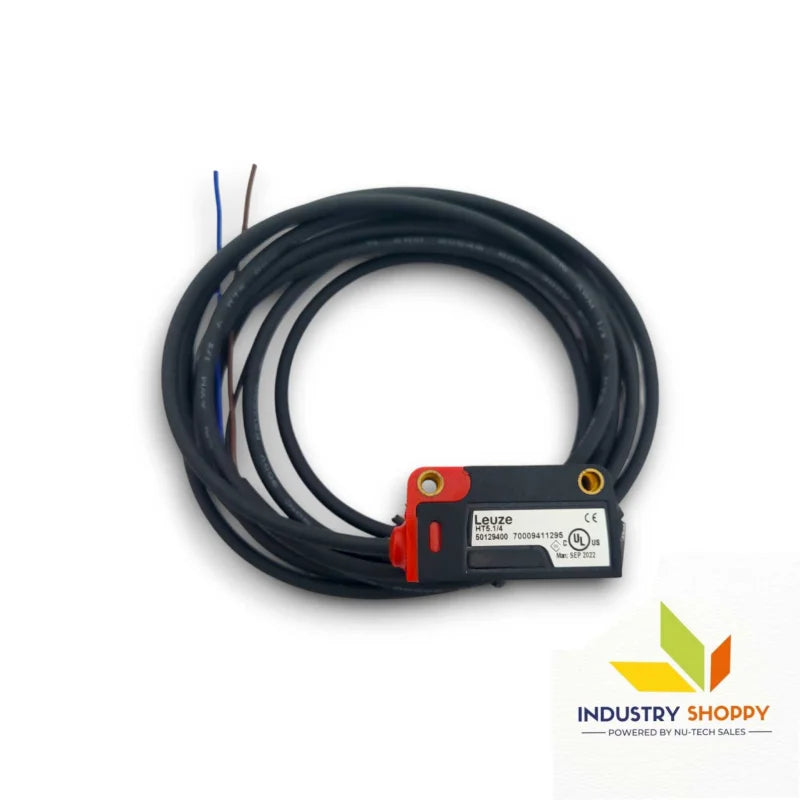

Leuze HT5.1/4 Diffuse Sensor

Leuze HT5.1/4 Diffuse Sensor

The Leuze HT5.1/4 Diffuse Sensor is a high-performance optical sensor designed for object detection in industrial automation systems. Operating on the diffuse reflection principle with background suppression, this sensor ensures reliable detection of objects in various environments. It offers a wide operating range from 0.005 to 0.4 meters, with specific ranges for different object colors, ensuring accurate and consistent detection even for varying surface types.

Equipped with a focused beam path and a LED red light source operating at a wavelength of 645 nm, the sensor provides precise object detection with a round light spot geometry. The PNP transistor output and light switching principle make it ideal for integration into industrial control systems. With a switching frequency of 1,000 Hz and a fast 0.5 ms response time, the sensor is suitable for high-speed applications requiring rapid detection.

The HT5.1/4 sensor features an adjustable detection range from 15 to 400 mm, providing flexibility to meet various operational needs. A multiturn potentiometer allows for precise range adjustment, while the IP67 protection rating ensures that the sensor can withstand harsh industrial environments, offering full protection against dust and water ingress.

With a 2,000 mm cable length and durable PUR sheathing, the sensor is designed for easy installation and long-term use. The PC-ABS plastic housing and PMMA lens cover provide robustness, ensuring the sensor maintains reliability even in tough conditions. The sensor operates in a wide temperature range from -40°C to 60°C, making it suitable for a variety of industrial applications.

Key features :-

Applications :-

• Automated Object Detection: Ideal for detecting objects in automated sorting and material handling systems.
• Packaging and Assembly Lines: Used for precise detection in packaging systems.
• Material Handling: Perfect for use in material handling systems requiring accurate detection of objects.
• Industrial Automation: Suitable for a range of industrial applications requiring dependable object detection.
• Quality Control Systems: Ensures accurate detection in quality inspection processes in manufacturing.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
