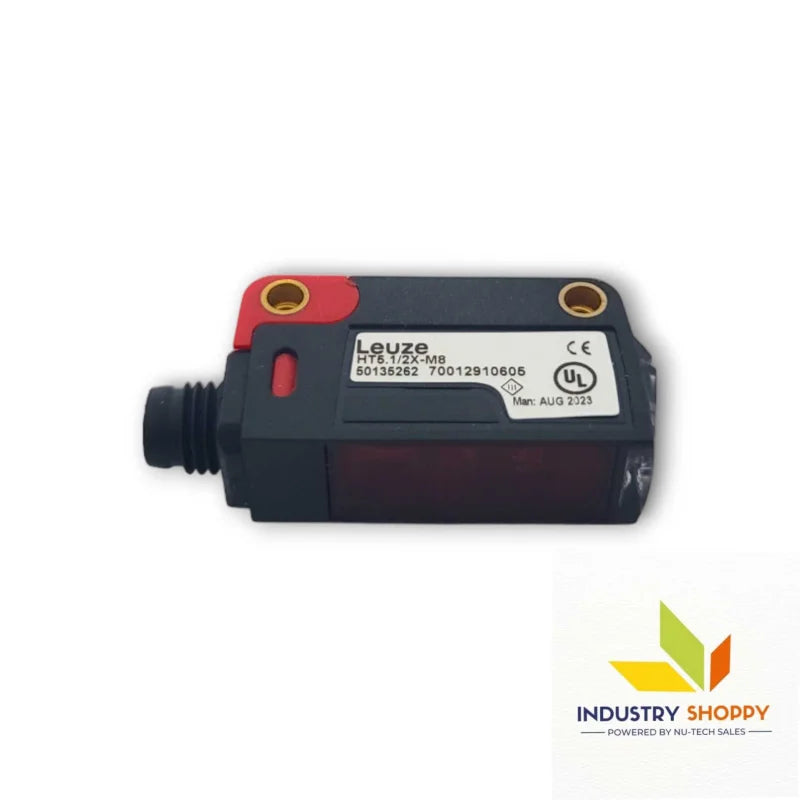

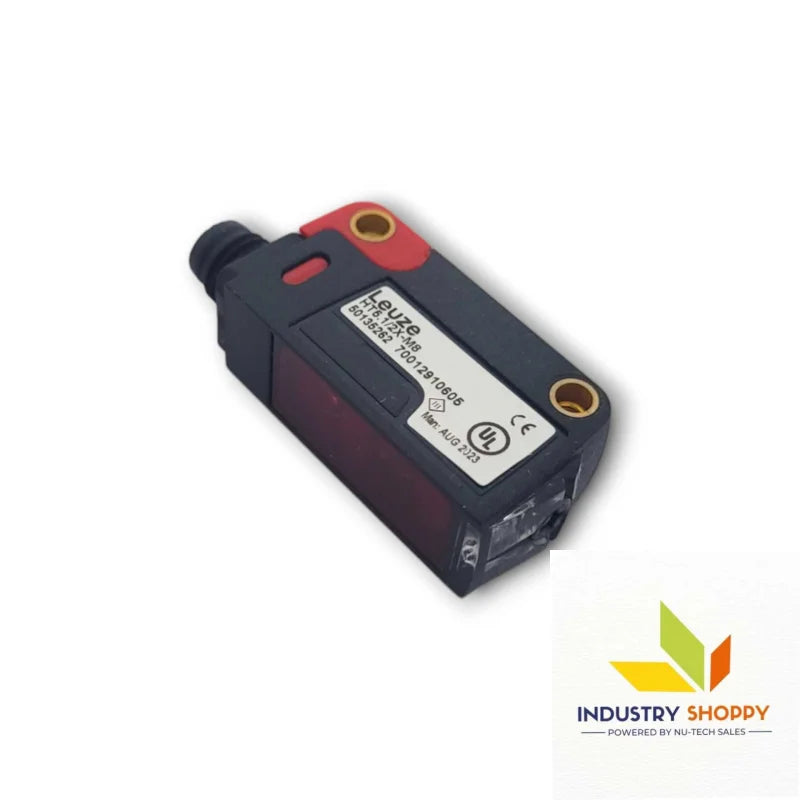

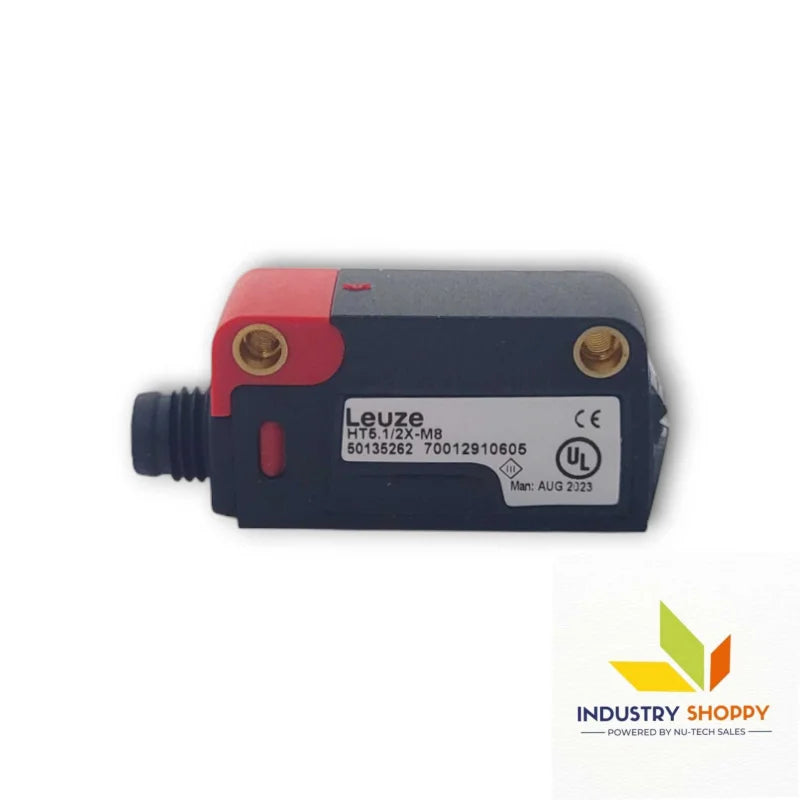

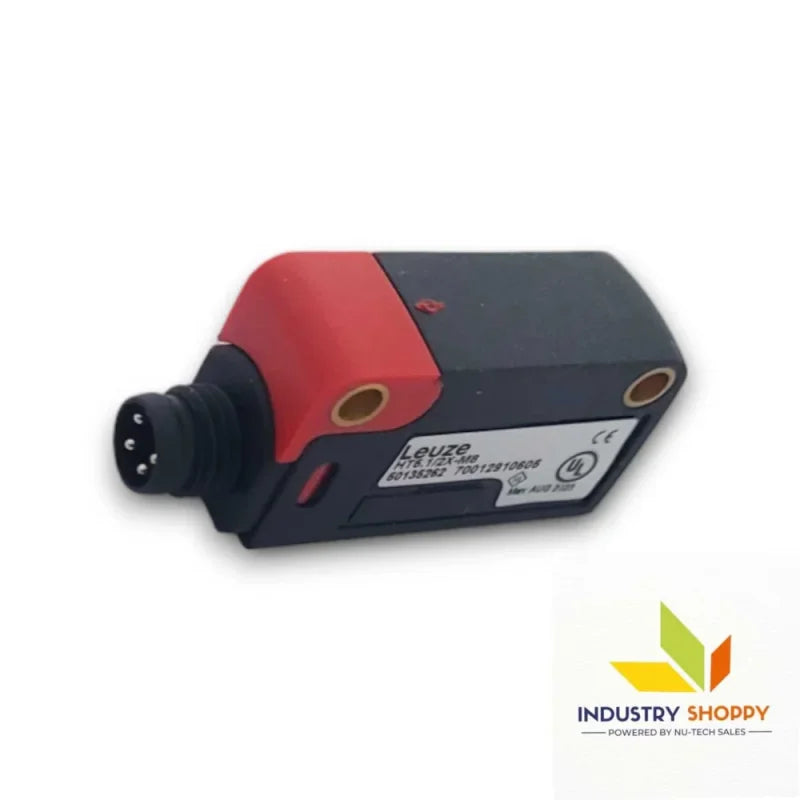

Leuze HT5.1/2X-M8 Diffuse Sensor

Leuze HT5.1/2X-M8 Diffuse Sensor

The Leuze HT5.1/2X-M8 Diffuse Sensor is a high-performance optical sensor that utilizes the diffuse reflection principle with background suppression to ensure precise object detection in industrial applications. This sensor offers an operating range from 0.005 to 0.4 meters, with varying ranges for different object colors (white, gray, black), ensuring reliable and accurate detection across a wide range of materials and surfaces.

With a focused beam path and a red LED light source emitting at a wavelength of 645 nm, the sensor provides a round light spot geometry for targeted detection. The sensor operates with a PNP transistor output and a light switching principle, ensuring reliable signal output for automation systems. Featuring a 1,000 Hz switching frequency and a 0.5 ms response time, the sensor can handle high-speed detection requirements in dynamic environments.

The HT5.1/2X-M8 sensor is equipped with a multiturn potentiometer for precise range adjustment within the 15 to 400 mm range, giving flexibility for a wide range of industrial applications. The IP67 protection rating makes the sensor resistant to dust and water ingress, ensuring durability even in harsh conditions. The PC-ABS plastic housing and PMMA lens cover provide strength and longevity, while the sensor operates in a broad temperature range from -40°C to 60°C, making it suitable for diverse environments.

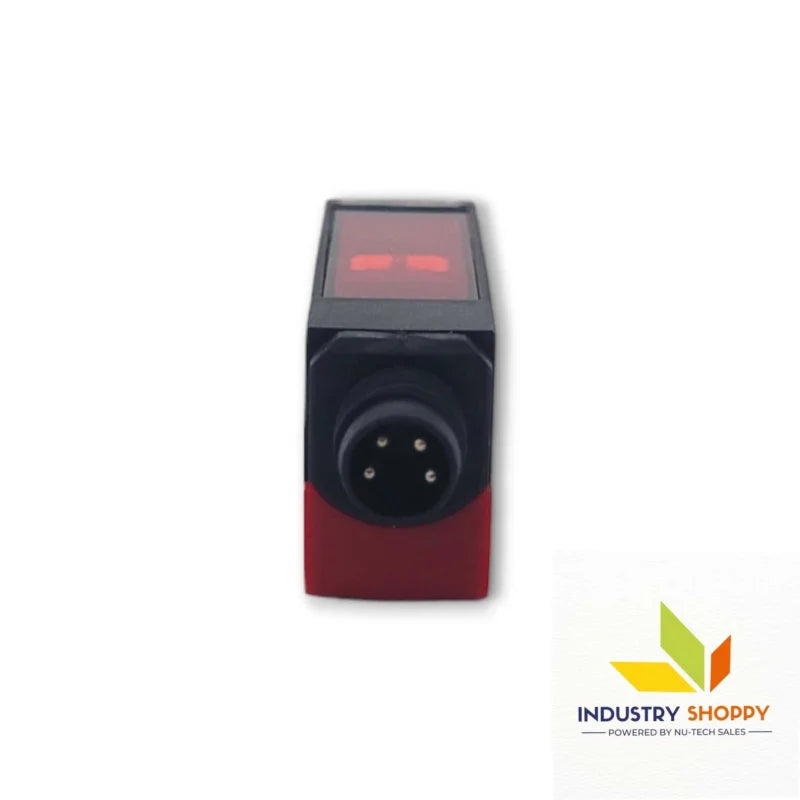

With a 4-pin M8 male connector and easy-to-use installation options, the HT5.1/2X-M8 is versatile and can be integrated seamlessly into a variety of systems.

Key features :-

Applications :-

• Automated Object Detection: Ideal for detecting objects in automated sorting and handling systems.
• Material Handling Systems: Perfect for use in material handling applications where precision is essential.
• Packaging Systems: Ensures accurate detection in packaging and labeling applications.
• Assembly Lines: Reliable for detection tasks in high-speed assembly processes.
• Industrial Automation: Suitable for a range of industrial applications requiring consistent and accurate object detection.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
