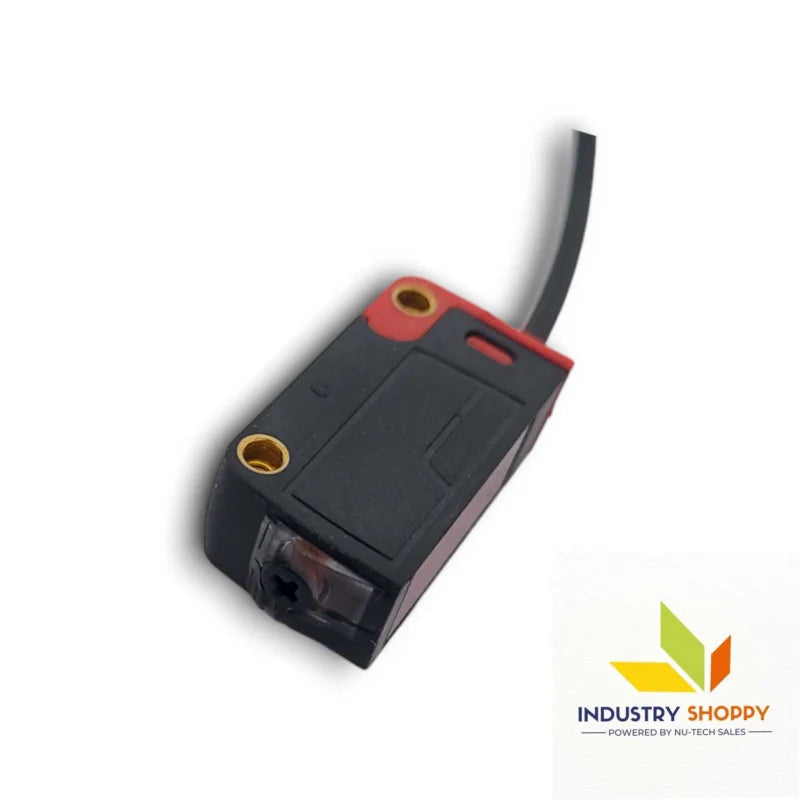

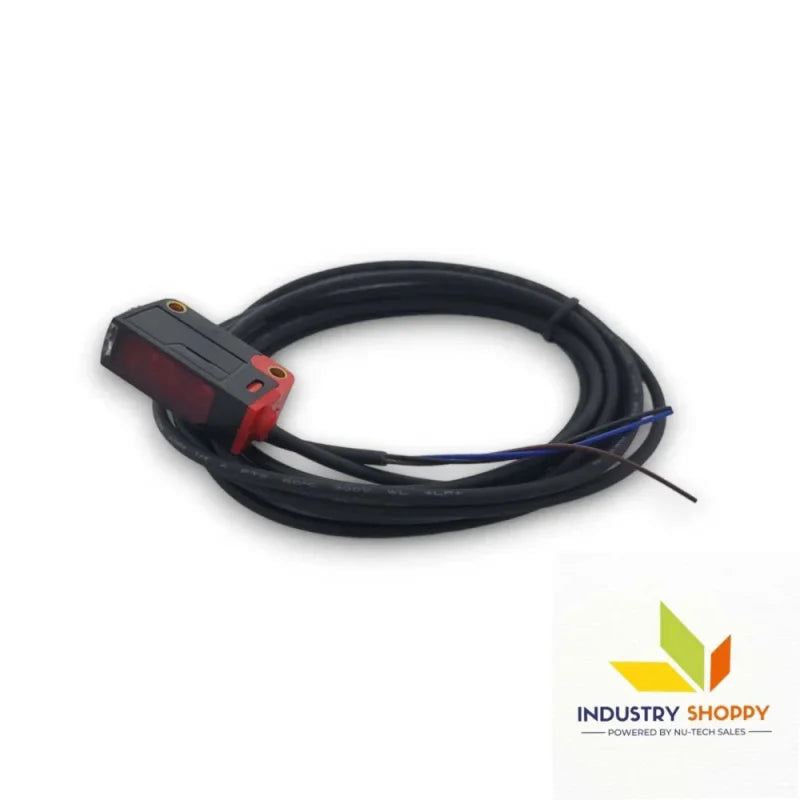

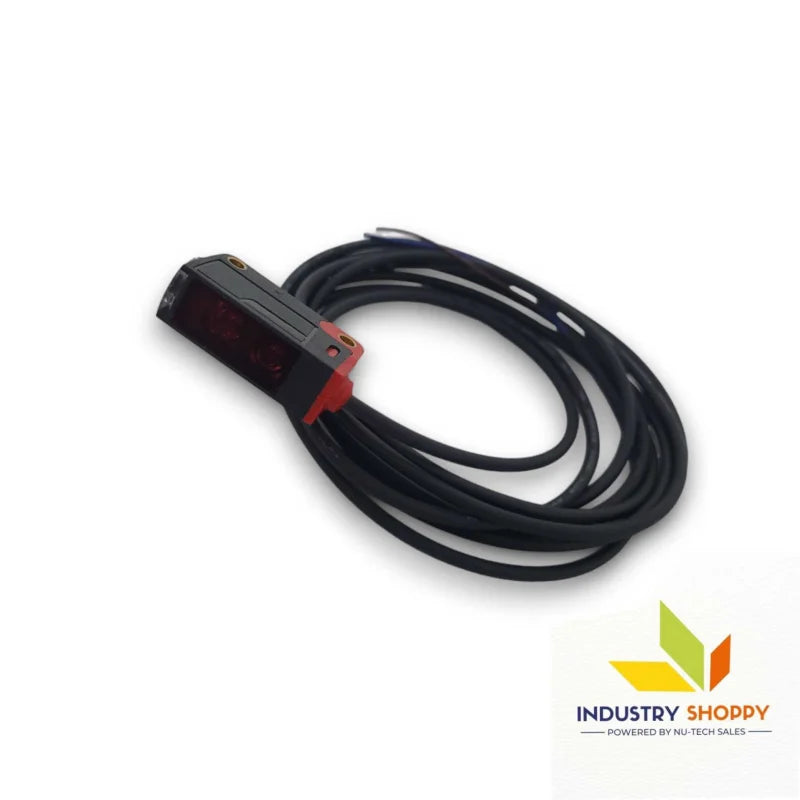

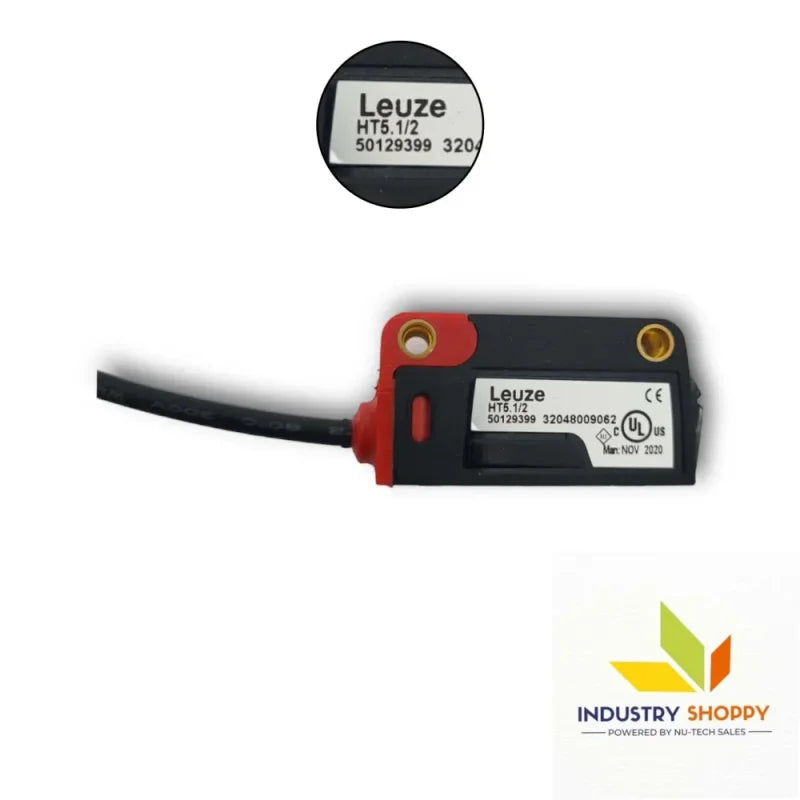

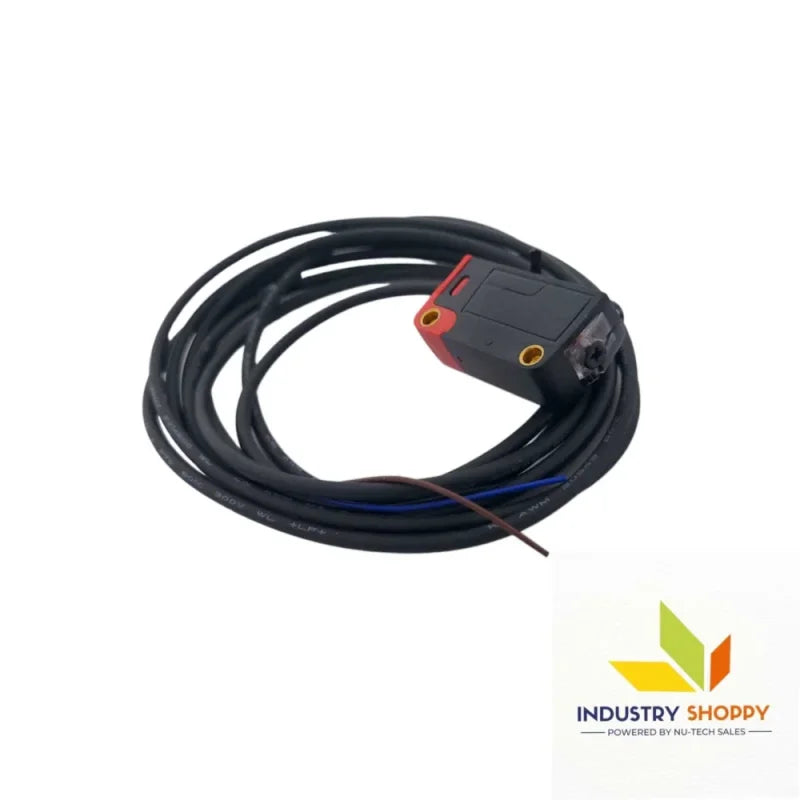

Leuze HT5.1/2 Diffuse Sensor

Leuze HT5.1/2 Diffuse Sensor

The Leuze HT5.1/2 Diffuse Sensor is a highly reliable optical sensor that uses the diffuse reflection principle with background suppression for accurate and precise object detection. The sensor operates within a guaranteed range from 0.005 to 0.4 meters, with specific ranges for white, gray, and black objects, making it suitable for various material types and surfaces.

Equipped with a focused beam path and a red LED light source emitting at a wavelength of 645 nm, the sensor provides a round light spot geometry for reliable detection. The sensor operates with an NPN transistor output and utilizes a light switching principle, ensuring a stable output signal for automation and control applications. It has a 1,000 Hz switching frequency and a 0.5 ms response time, providing fast and accurate responses for high-speed operations.

The HT5.1/2 sensor features an adjustable multiturn potentiometer that allows users to fine-tune the detection range from 15 mm to 400 mm, providing flexibility for diverse industrial needs. The IP67 protection rating guarantees full dust and water protection, ensuring optimal performance in harsh environments. Constructed from PC-ABS plastic with a PMMA lens cover, the sensor is built for durability and longevity, even under demanding conditions. Additionally, it operates within a broad temperature range of -40°C to 60°C, making it suitable for a wide variety of industrial environments.

With a 3-wire PUR cable and a 2,000 mm cable length, the sensor can be easily integrated into existing systems for quick installation and setup.

Key features :-

Applications :-

• Automation Systems: Ideal for detecting objects in automated systems for sorting, positioning, or counting.
• Material Handling: Perfect for use in material handling systems where precise object detection is critical.
• Packaging: Ensures reliable detection in packaging lines for product sorting and quality control.
• Assembly Lines: Well-suited for high-speed assembly processes requiring accurate object detection.
• Industrial Automation: Suitable for a wide range of industrial automation applications requiring robust and reliable detection solutions.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
