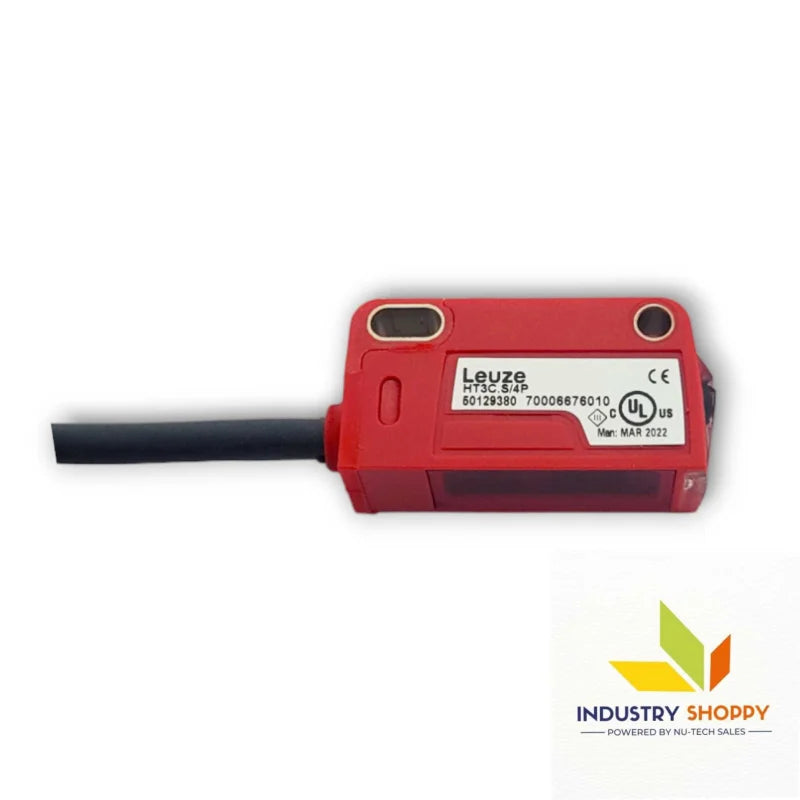

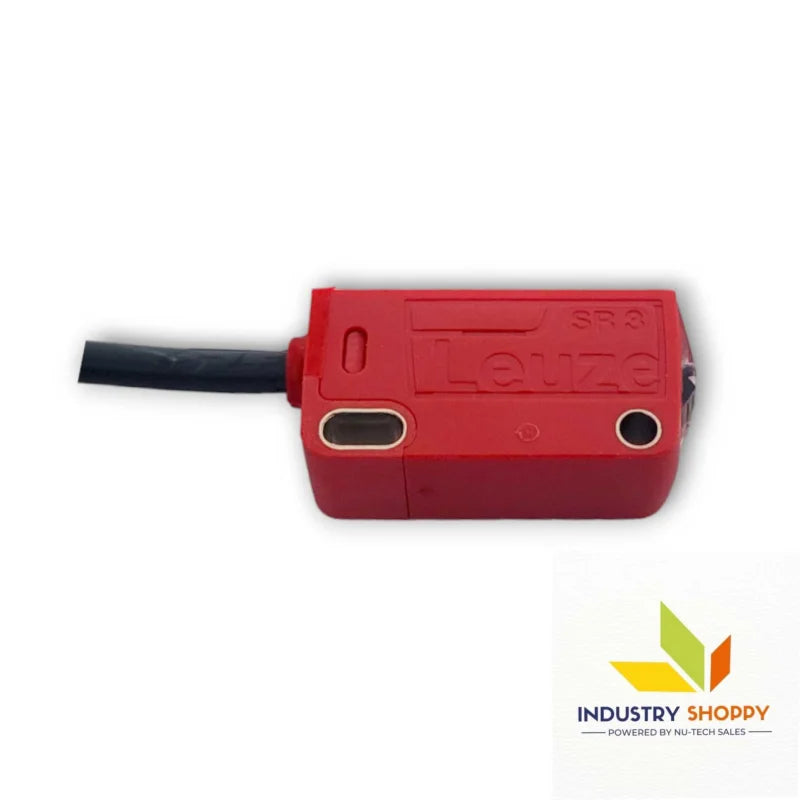

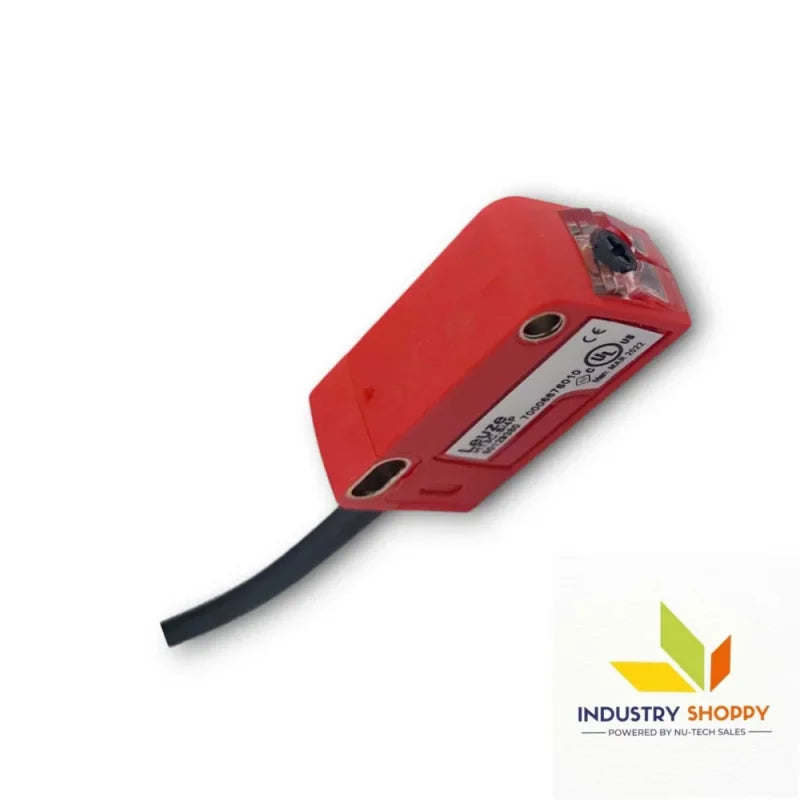

Leuze HT3C.S/4P Diffuse Sensor

Leuze HT3C.S/4P Diffuse Sensor with Background Suppression

The Leuze HT3C.S/4P is a diffuse photoelectric sensor with background suppression designed for detecting small parts with high precision. Utilizing a diffuse reflection principle, this sensor ensures reliable operation even in challenging conditions by minimizing interference from background objects. The small light spot version (S) enhances its ability to detect small objects effectively. It features an LED light source with a wavelength of 650 nm, offering high accuracy and a minimal black-white error up to 100 mm.

Key Features:

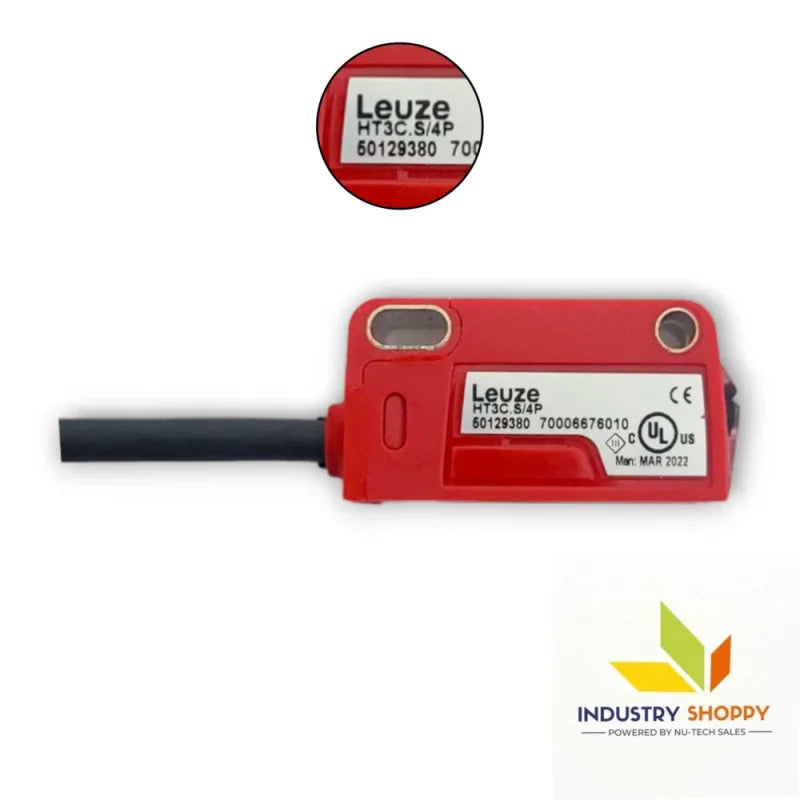

• Part Number: 50129380
• Model Number: HT3C.S/4P
• Series: 3C
• Operating Principle: Diffuse reflection principle with background suppression
• Special Version: Small light spot (S)
• Black-White Error: < 10% up to 100 mm
• Adjustment Range: 15 to 200 mm
• Light Source: LED, Red (Wavelength: 650 nm)
• Protective Circuits: Polarity reversal protection, short circuit protection
• Number of Digital Switching Outputs: 2 (Transistor, PNP)
• Switching Principle: Light and dark switching
• Switching Frequency: 1,000 Hz
• Response Time: 0.5 ms
• Readiness Delay: 300 ms

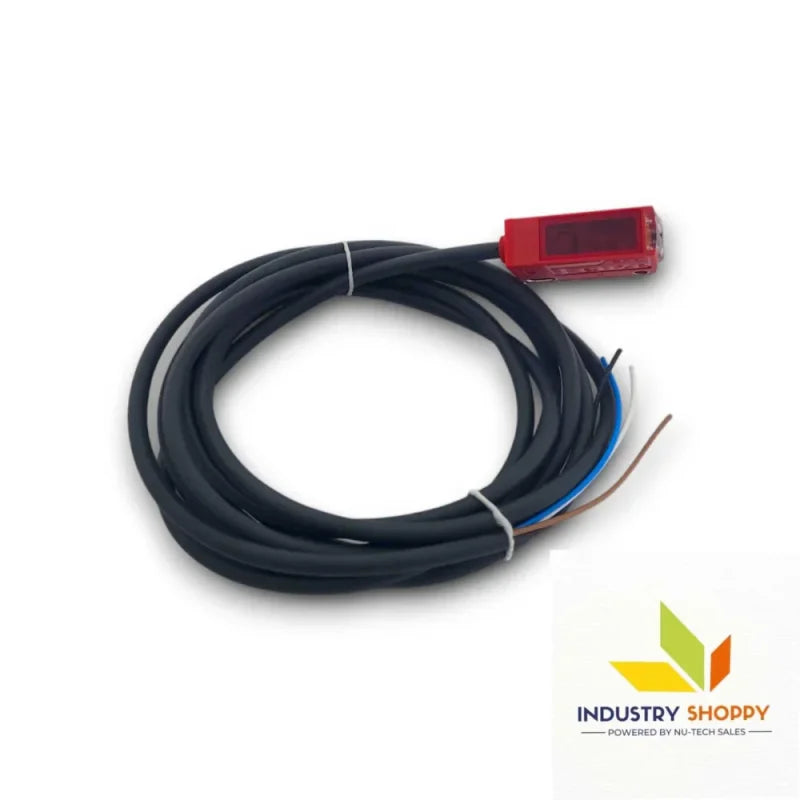

• Type of Connection: Cable
• Cable Length: 2,000 mm
• Sheathing Material: PUR
• Cable Color: Black
• Number of Conductors: 4-wire
• Wire Cross Section: 0.2 mm²
• Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
• Housing Material: Plastic (PC-ABS)
• Lens Cover Material: Plastic / PMMA
• Net Weight: 50 g
• Housing Color: Red
• Type of Fastening: Through-hole mounting or via optional mounting device
• Ambient Temperature (Operation): -40 to 60 °C
• Ambient Temperature (Storage): -40 to 70 °C
• Degree of Protection: IP 67, IP 69K
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2

Applications: The HT3C.S/4P sensor is ideal for precise detection of small parts in automated systems, making it perfect for industrial automation, quality control, and packaging applications. It effectively identifies and counts small components on assembly lines, ensures the accuracy of part presence or absence in manufacturing processes, and manages small item detection in packaging operations, all while minimizing interference from background objects.

Technical Precautions:

• Ensure correct polarity when connecting the sensor to prevent damage.
• Protect the sensor from short circuits to maintain its longevity.
• Maintain the operating temperature within the specified range for optimal performance.
• Handle the sensor with care during installation to avoid physical damage.
• Follow the manufacturer's guidelines for mounting and connection to ensure accurate detection and operation.
