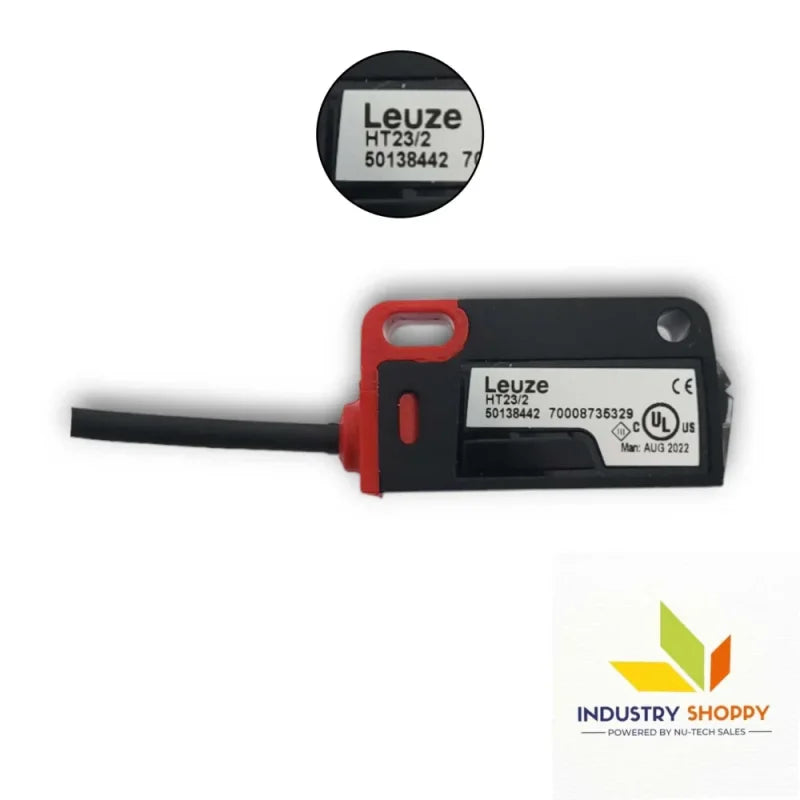

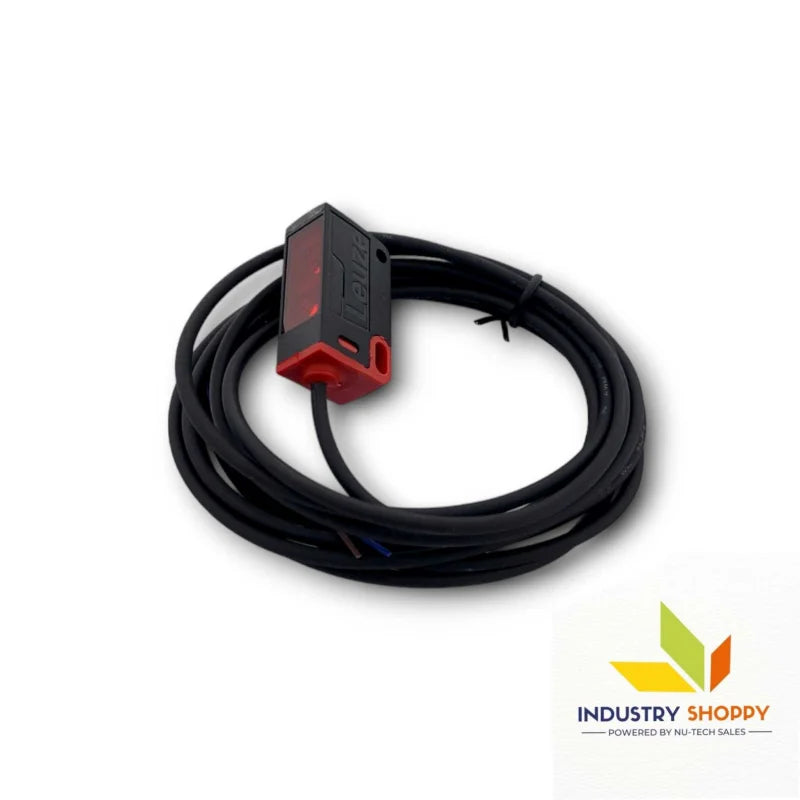

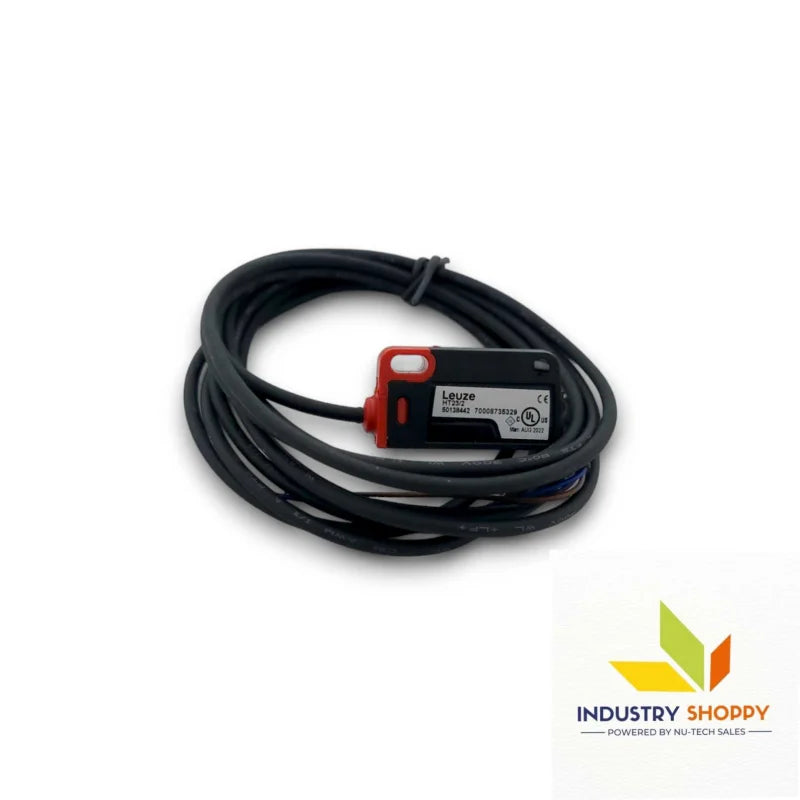

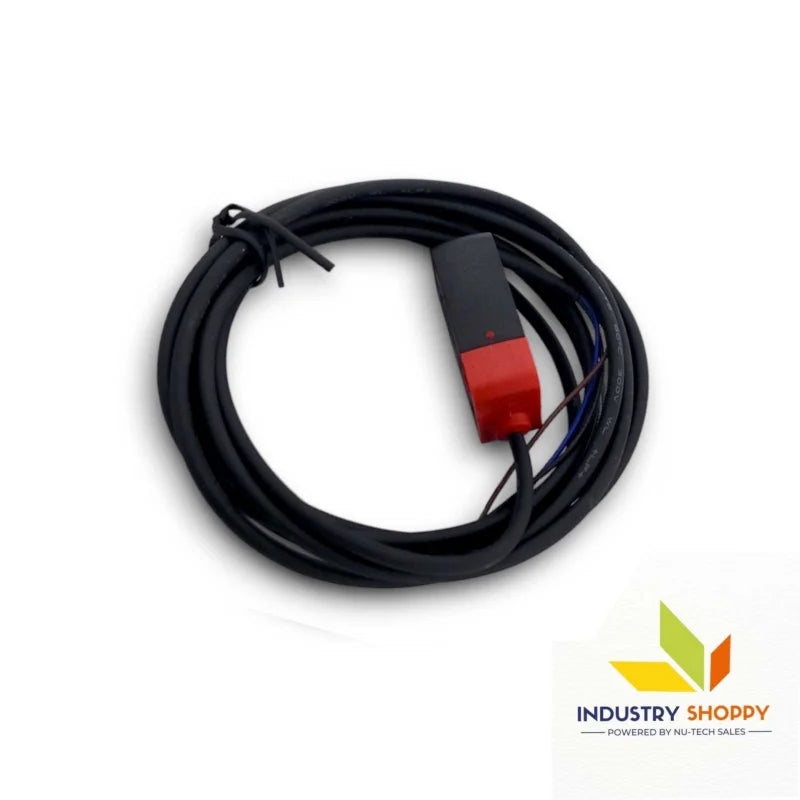

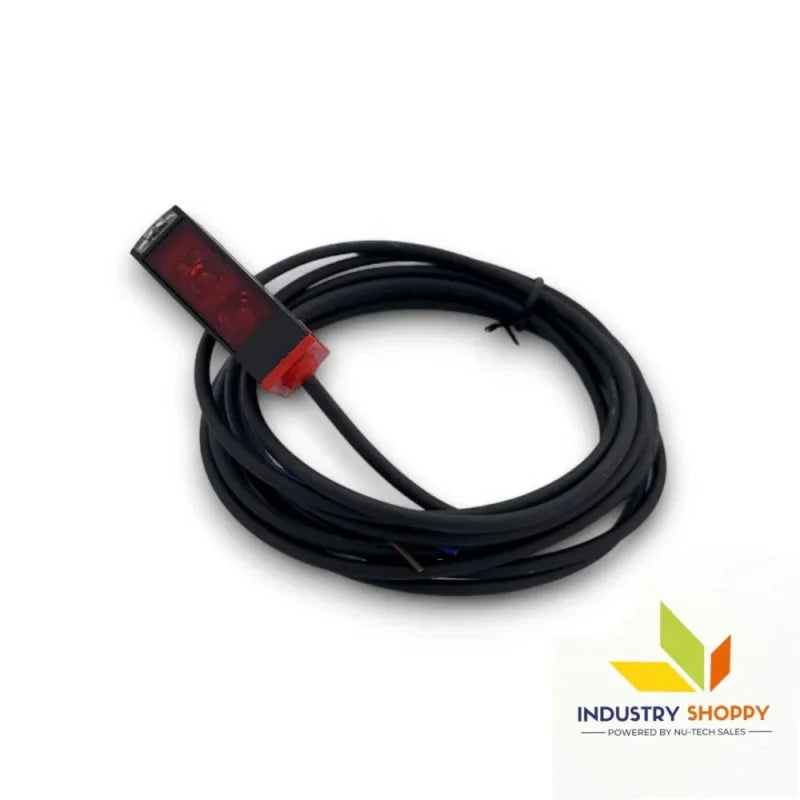

Leuze HT23/2 Diffuse Sensor

Leuze HT23/2 Diffuse Sensor

Part No. 50138442

The Leuze HT23/2 Diffuse Sensor utilizes the diffuse reflection principle with background suppression to provide reliable and precise object detection in a variety of industrial applications. Offering a guaranteed operating range from 5 mm to 400 mm, this sensor excels in medium-range detection tasks, making it suitable for manufacturing, assembly, and material handling processes.

It features a red LED light source (645 nm), with a fixed focus and a round light spot geometry for optimized detection performance. The sensor is equipped with a NPN transistor output, supporting light switching with a switching frequency of 1,000 Hz and a response time of 0.5 ms, ensuring fast and efficient detection in automated systems. The IP67 protection rating makes it highly resistant to dust, water, and harsh environments, ensuring long-lasting durability in a wide range of industrial settings. The multiturn potentiometer allows for fine adjustments to the range, providing optimal performance in dynamic environments.

Key features :-

Applications :-

• Medium-Range Object Detection
  The sensor is ideal for detecting medium-sized objects in manufacturing lines, especially where a range of up to 400 mm is required.
• Packaging and Sorting
  Its precise sensing range makes it ideal for use in automated packaging and sorting applications, ensuring smooth operations in material handling.
• Assembly Line Applications
  Detects small parts and components in assembly lines, enhancing accuracy and efficiency during production processes.
• Object Detection in Harsh Environments
  With an IP67 rating, the sensor is well-suited for use in environments exposed to dust and moisture, ensuring reliable operation in industrial settings.
• Detection of Black and White Objects
  Capable of distinguishing between black and white objects with a black-white error of < 15%, making it suitable for quality control applications.
• Automation in Harsh Conditions
  The robust housing and high switching frequency make it suitable for highly automated environments, including material handling systems and robotic processes.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
