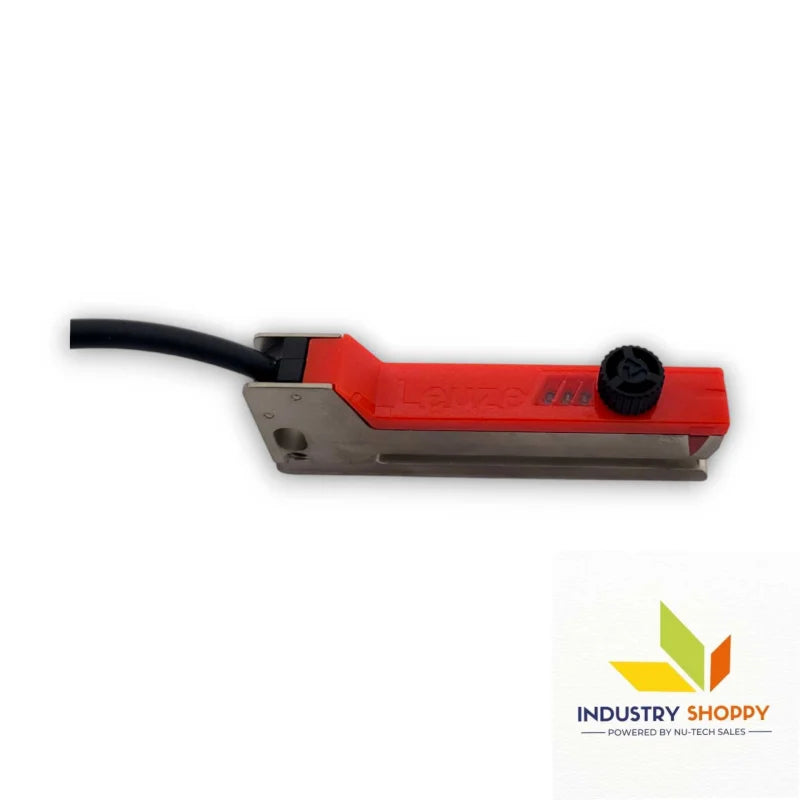

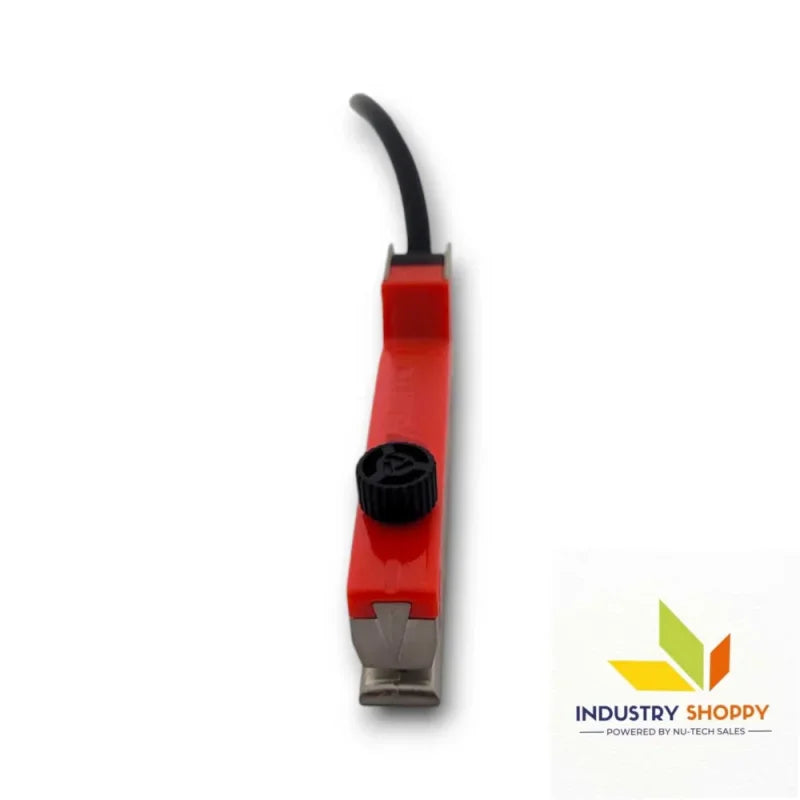

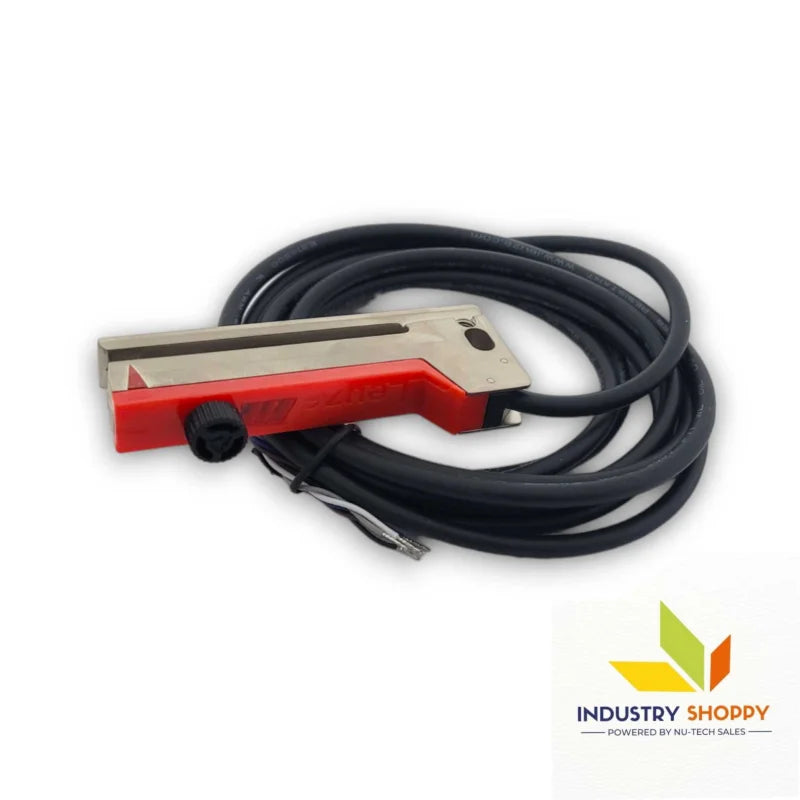

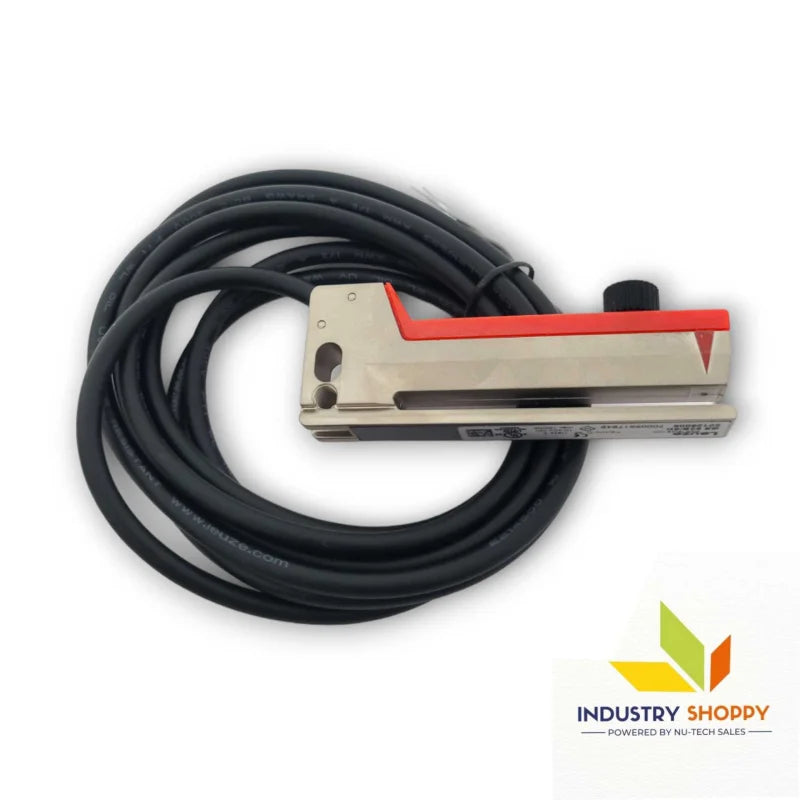

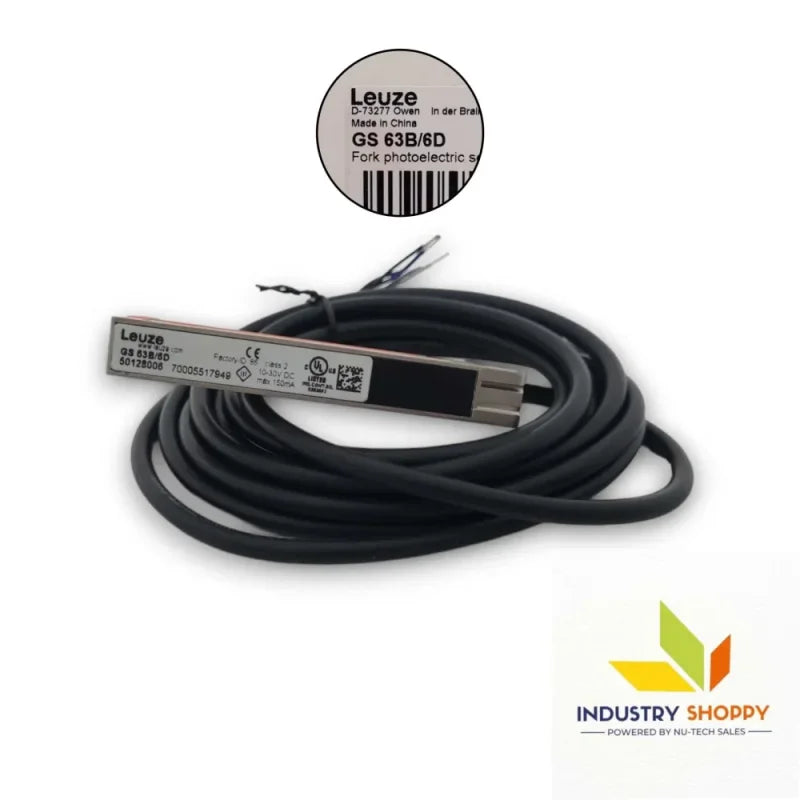

Leuze GS63B/6D Fork Photoelectric Sensor

Leuze GS 63B/6D Fork Photoelectric Sensor

The Leuze GS 63B/6D Fork Photoelectric Sensor is an advanced optical sensor designed for precise detection of non-transparent labels. It features a compact and robust design, making it ideal for integration into various industrial automation applications. The sensor operates using an infrared LED light source with a wavelength of 940 nm, ensuring reliable performance even in challenging environments. With a high switching frequency of 10,000 Hz and a fast response time of 0.05 ms, the GS 63B/6D ensures accurate and efficient label detection.

Key Features:

• Part Number: 50128006
• Model Nunber: GS63B/6D
• Series: 63
• Principle of Physics: Optical
• Application: Detection of non-transparent labels
• Label Width, Min.: 2 mm
• Label Gap, Min.: 2 mm
• Medium: Not transparent
• Light Source: LED, Infrared
• Wavelength: 940 nm
• Transmitted-Signal Shape: Pulsed
• Protective Circuit: Polarity reversal protection, Short circuit protected
• Supply Voltage UB: 10 ... 30 V, DC
• Residual Ripple: 0 ... 15 %, From UB
• Open-Circuit Current: 0 ... 30 mA
• Number of Digital Switching Outputs: 1 Piece(s)
• Type: Digital switching output
• Voltage Type: DC
• Switching Current, Max.: 100 mA
• Switching Voltage: High: ≥(UB-2V), Low: ≤ 2 V
• Switching Element: Transistor, Push-pull
• Switching Principle: Switching signal on label
• Switching Frequency: 10,000 Hz
• Response Time: 0.05 ms
• Readiness Delay: 300 ms
• Max. Conveyor Speed During Teach-In: 20 m/min
• Number of Connections: 1 Piece(s)
• Function: Signal OUT
• Type of Connection: Cable
• Cable Length: 2,000 mm
• Number of Conductors: 5-wire
• Design: Fork
• Mouth Width: 3 mm
• Mouth Depth: 61 mm
• Dimension (W x H x L): 11 mm x 30 mm x 80 mm
• Housing Material: Metal, Plastic
• Metal Housing: Diecast zinc, chemically nickel-plated
• Plastic Housing: PC
• Lens Cover Material: Plastic/PC
• Net Weight: 100 g
• Housing Color: Red, Silver
• Type of Fastening: Through-hole mounting, Via optional mounting device
• Type of Display: LED
• Number of LEDs: 2 Piece(s)
• Operational Controls: Multiturn potentiometer
• Ambient Temperature, Operation: -20 ... 60 °C
• Ambient Temperature, Storage: -30 ... 70 °C
• Degree of Protection: IP 67
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2

Application: This sensor is specifically designed for the detection of non-transparent labels, making it suitable for use in packaging, printing, and labeling industries. Its ability to detect label gaps and labels with a minimum width of 2 mm enhances the precision of automated systems, ensuring seamless operation and reduced errors.

Technical Precautions:

• Ensure correct polarity when connecting the sensor to prevent damage.
• Protect the sensor from short circuits to maintain its longevity.
• Maintain the operating temperature within the specified range for optimal performance.
• Handle the sensor with care during installation to avoid physical damage.
• Follow the manufacturer's guidelines for mounting and connection to ensure accurate detection and operation.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Our engineers carefully entered all the details of this module based on the datasheet. However, mistakes can happen even with our best efforts. Please double-check all specifications before use.
