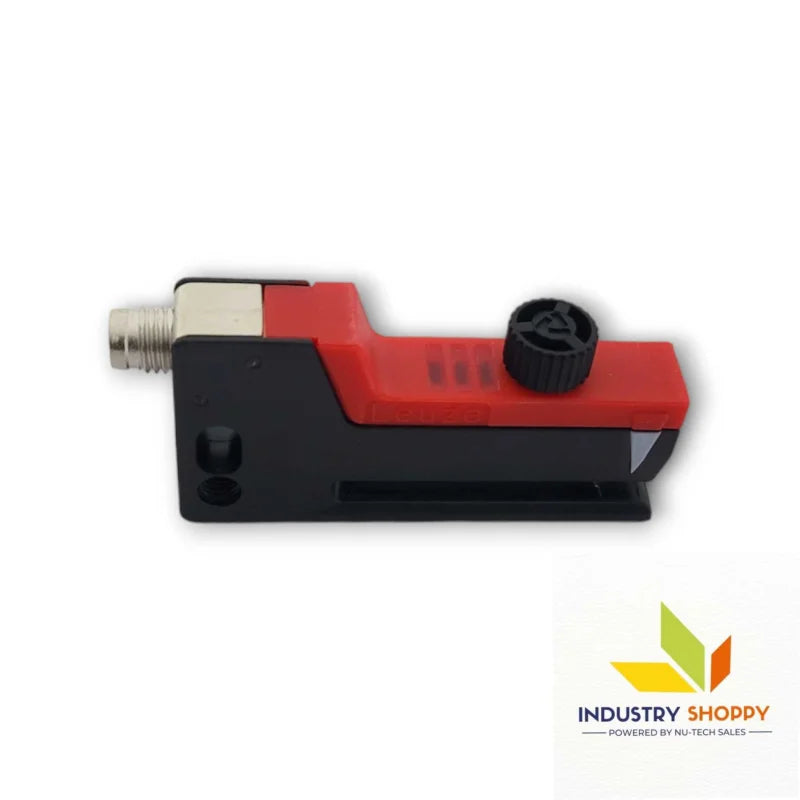

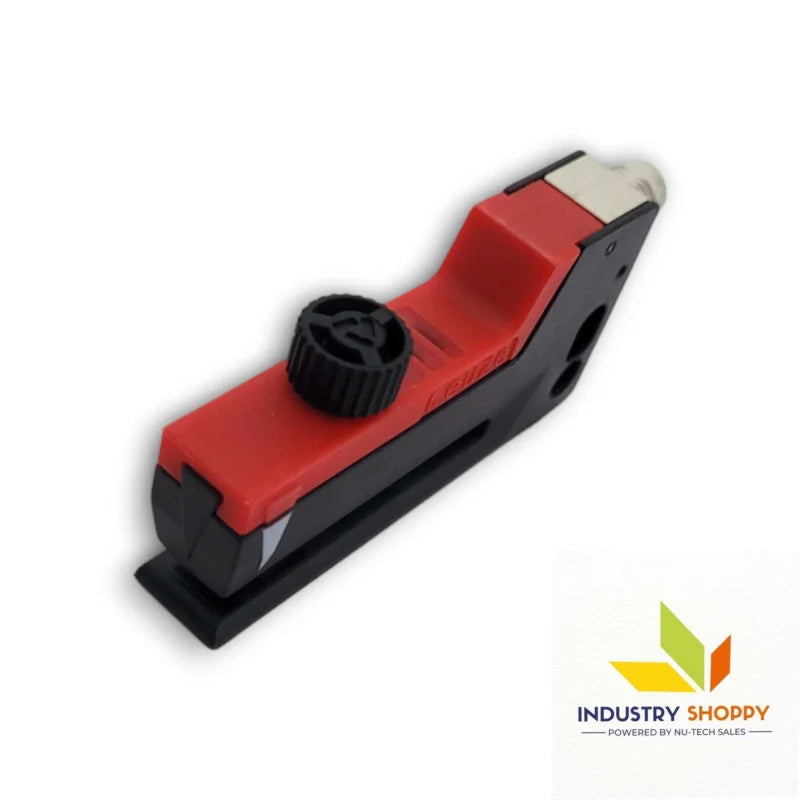

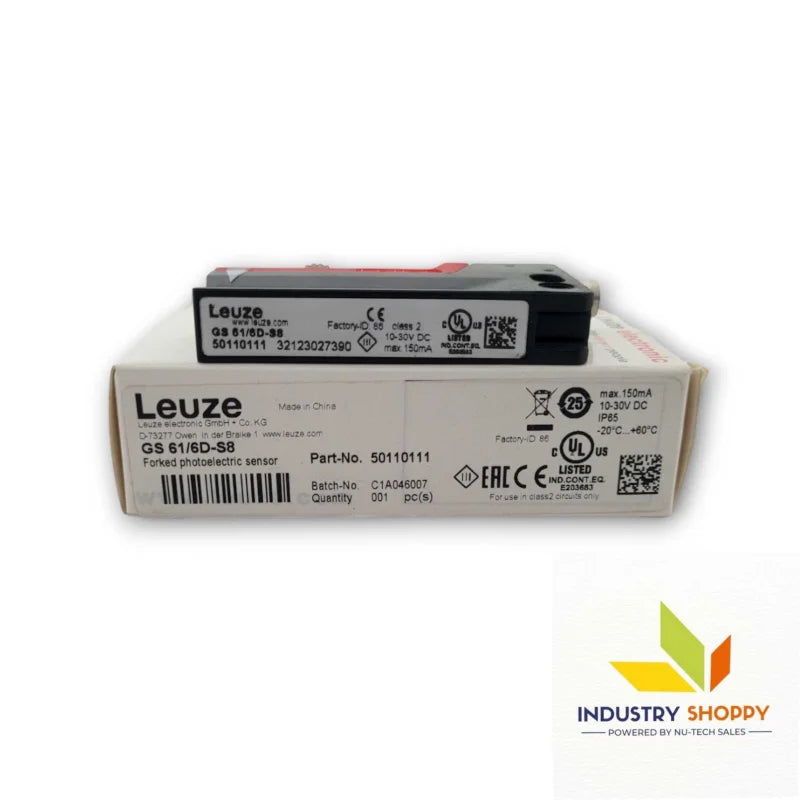

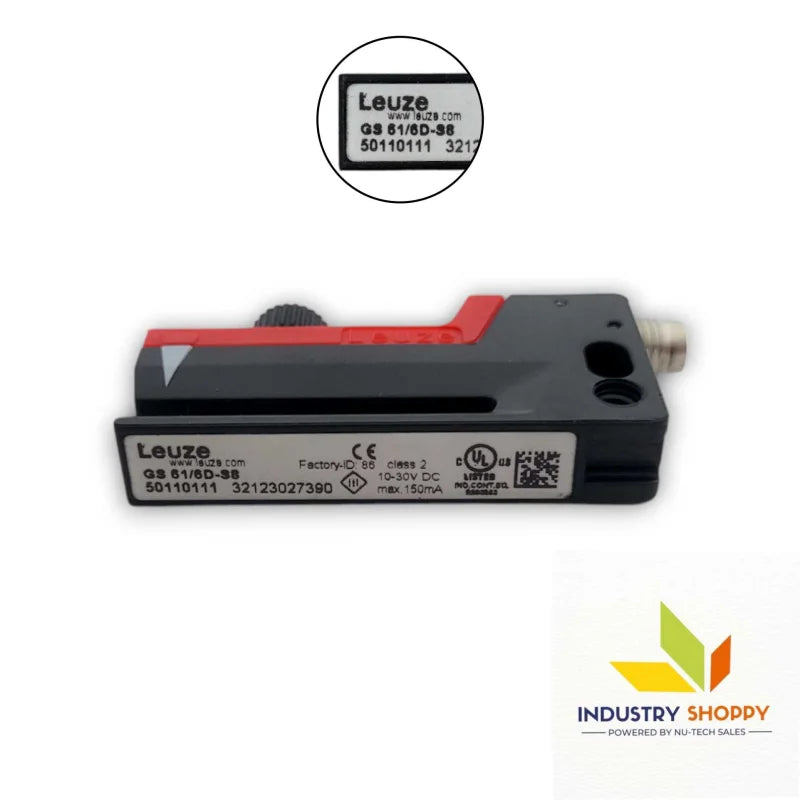

Leuze GS61/6D-S8 Fork Photoelectric Sensor

Leuze GS61/6D-S8 Fork Photoelectric Sensor

Part No. 50110111

The Leuze GS61/6D-S8 Fork Photoelectric Sensor is designed for the detection of non-transparent labels in automated packaging and labeling systems. This sensor employs infrared LED technology with a wavelength of 940 nm, providing precise and reliable detection for a variety of materials. The sensor is optimized for high-speed applications with a 10,000 Hz switching frequency and a fast 0.05 ms response time, ensuring minimal delay in operations.

The fork design features a 3 mm mouth width and 41 mm depth, ideal for detecting small or closely spaced labels. The sensor is built with a plastic housing (PC), ensuring lightweight yet durable performance. With IP 65 protection, the sensor is well-suited for environments that require resistance to dust and water.

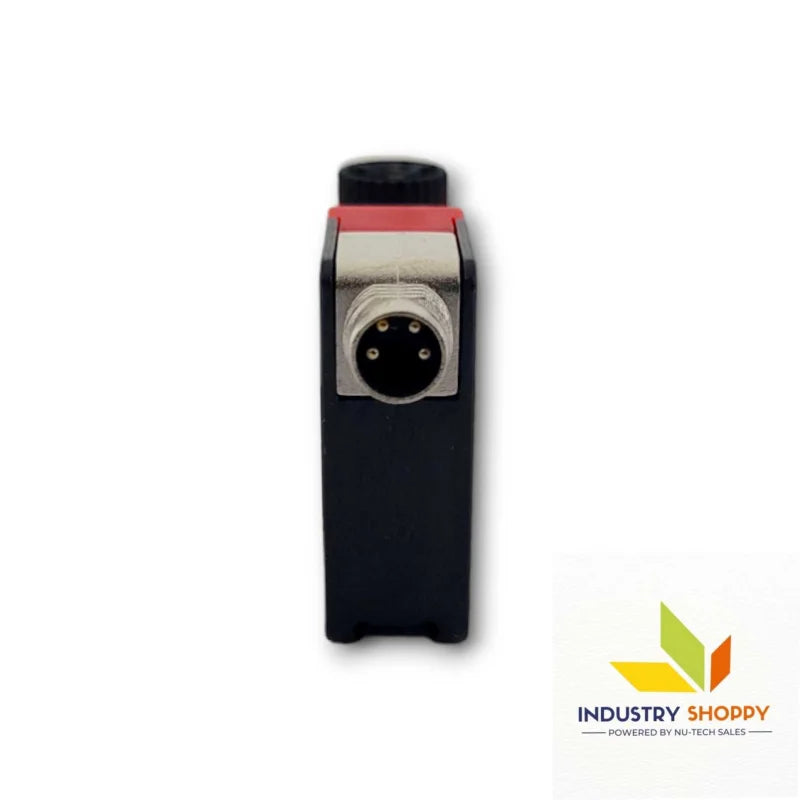

With a multiturn potentiometer for precise adjustments and easy integration via its M8 connector, this sensor is an excellent choice for demanding applications, ensuring reliable operation in dynamic labeling systems.

Key features :-

Applications :-

• Label Detection in Automated Packaging
  Ideal for detecting non-transparent labels in high-speed labeling machines, ensuring correct labeling during production.
• Conveyor Systems with High-Speed Operations
  Optimized for high-speed conveyors, with a fast 10,000 Hz switching frequency and 0.05 ms response time.
• Sorting and Material Handling
  Perfect for sorting non-transparent labels in various material handling systems, supporting efficient processing.
• Flexible Label Gap Detection
  The sensor detects labels in the gap between materials, enhancing accuracy in labeling systems where labels must be spaced correctly.
• Durable and Versatile
  With IP 65 protection and a PC plastic housing, the sensor is built for tough industrial environments and can handle water and dust exposure.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
