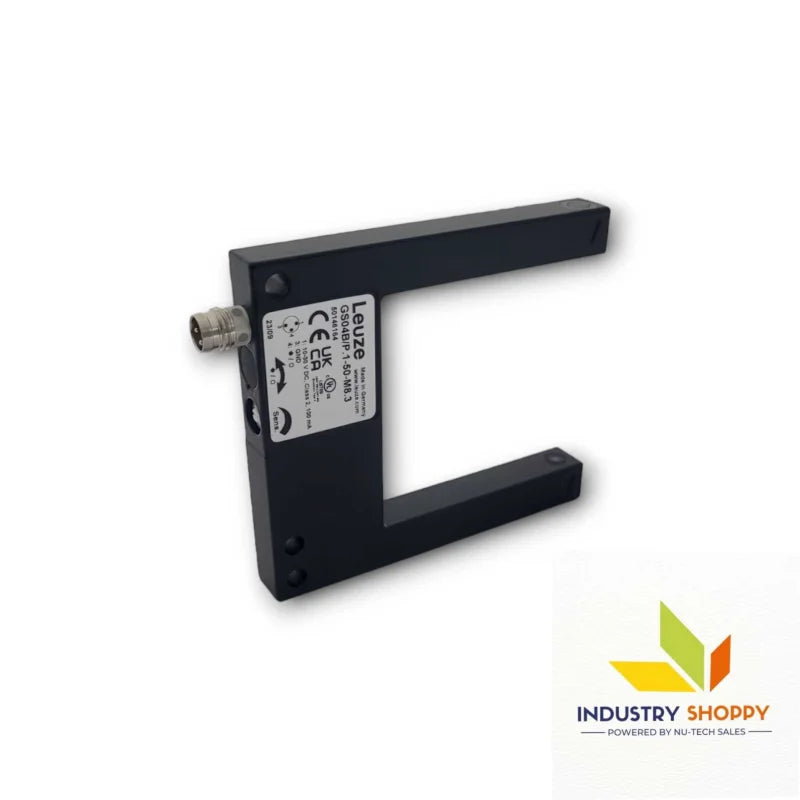

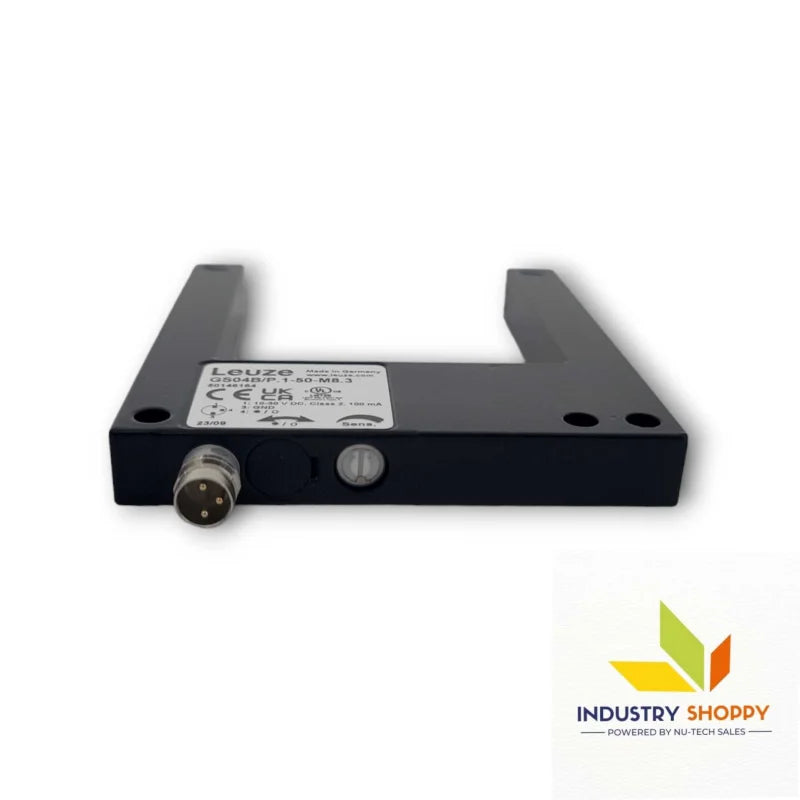

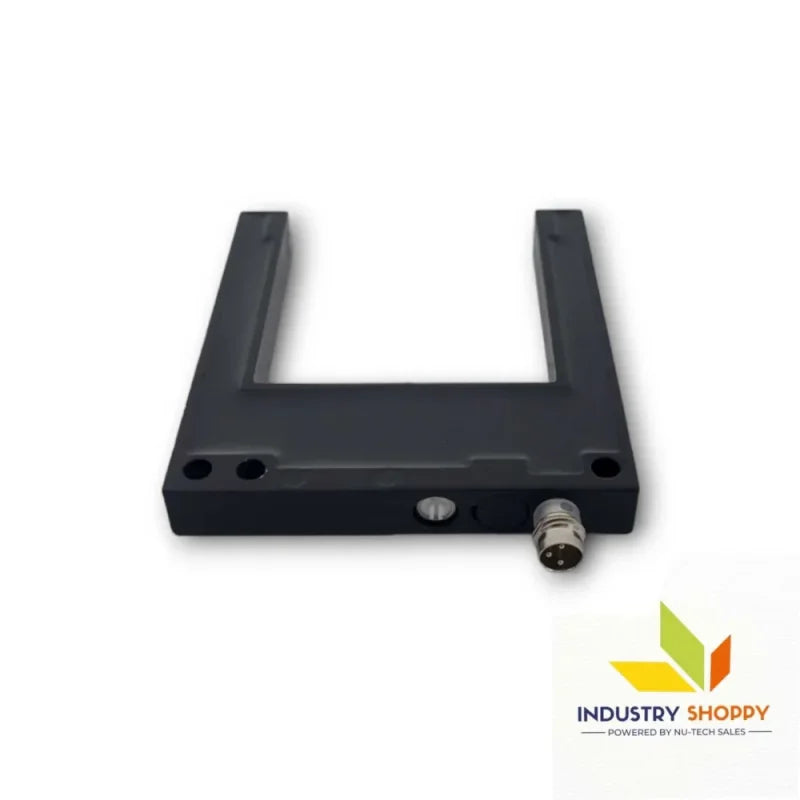

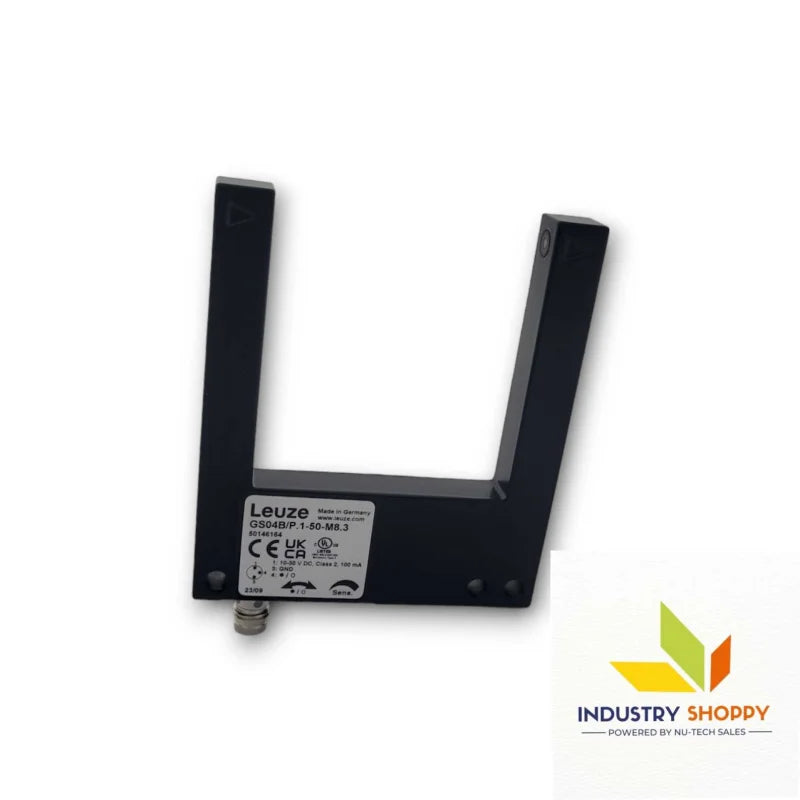

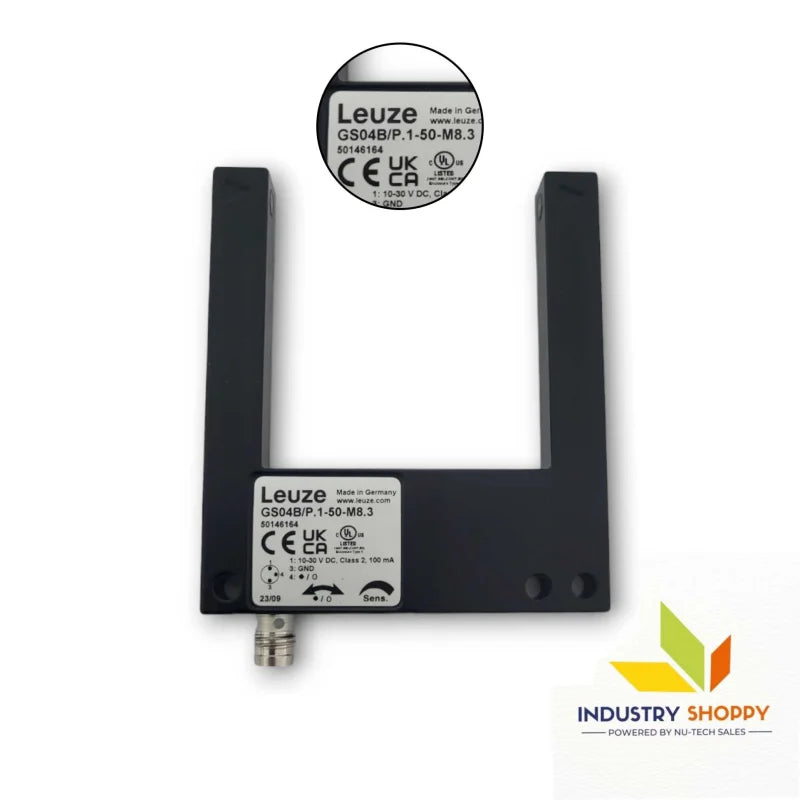

Leuze GS04B/P.1-50-M8.3 Fork Photoelectric Sensor

Leuze GS04B/P.1-50-M8.3 Fork Photoelectric Sensor

The Leuze GS04B/P.1-50-M8.3 Fork Photoelectric Sensor is a compact, high-performance sensor specifically engineered for precise detection of small parts. Operating on optical principles with a 660 nm red LED, this sensor delivers exceptional accuracy, detecting objects as small as 0.3 mm with repeatability of 0.02 mm and a switching hysteresis of just 100 µm.

Its robust design includes a metal diecast zinc housing and a glass lens cover, providing excellent durability in demanding industrial environments. With a 50 mm mouth width and 55 mm depth, it offers a balanced sensing area, ideal for applications like parts counting, presence checks, and edge detection in automation.

The sensor features light/dark switching capability and sensitivity adjustment via a 270° potentiometer, allowing flexible operation in diverse scenarios. It supports a 5,000 Hz switching frequency and 0.1 ms response time, making it suitable for high-speed production lines.

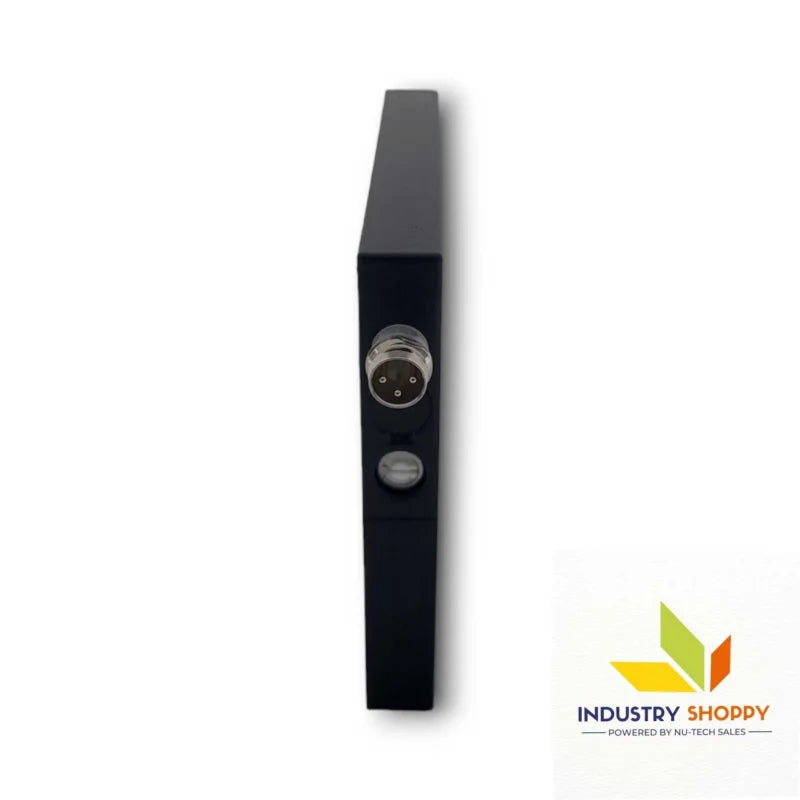

The M8 3-pin connector ensures easy integration, while the IP67 protection rating guarantees reliability in dusty or moist conditions. Certified according to IEC 60947-5-2 and DIN EN ISO 1389-1, it meets global industry standards.

Key features :-

Applications :-

• Precision Small Part Detection
  Accurately detects objects as small as 0.3 mm, ideal for quality assurance and automation tasks in electronics, packaging, and assembly lines.
• Light/Dark Switching Modes
  Easily configurable for light or dark switching, providing flexibility depending on detection requirements.
• High-Speed Sorting and Counting
  With a 5,000 Hz switching frequency and 0.1 ms response time, it's optimized for fast-moving conveyor systems or robotic pick-and-place setups.
• Tight Space Installations
  Its compact fork design (10 x 70 x 80 mm) allows it to fit into constrained machine spaces without sacrificing performance.
• Harsh Industrial Environments
  The IP67-rated housing and glass lens provide robust protection against dust, dirt, and water spray.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
