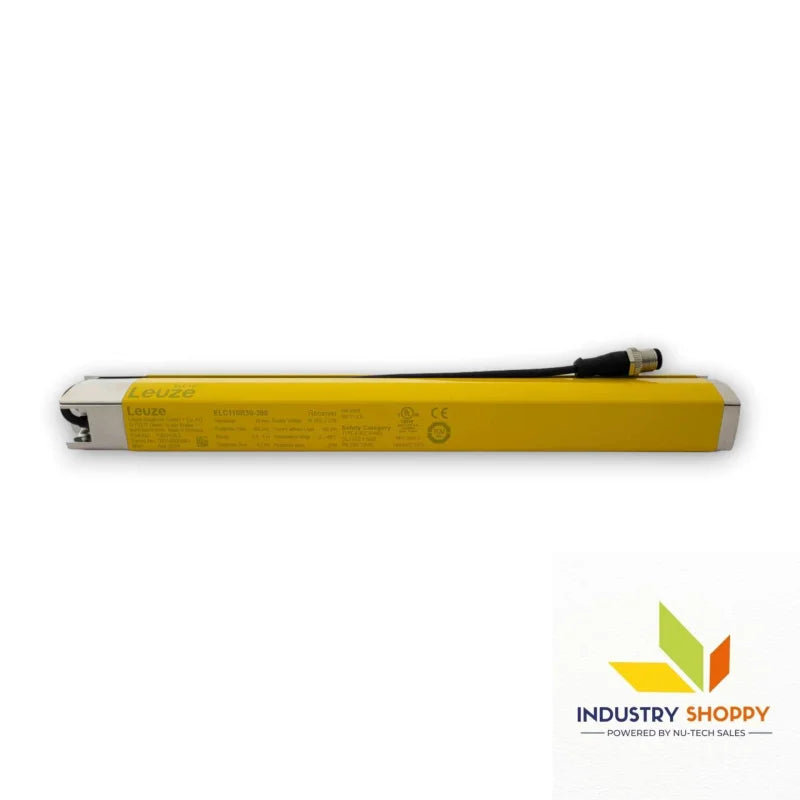

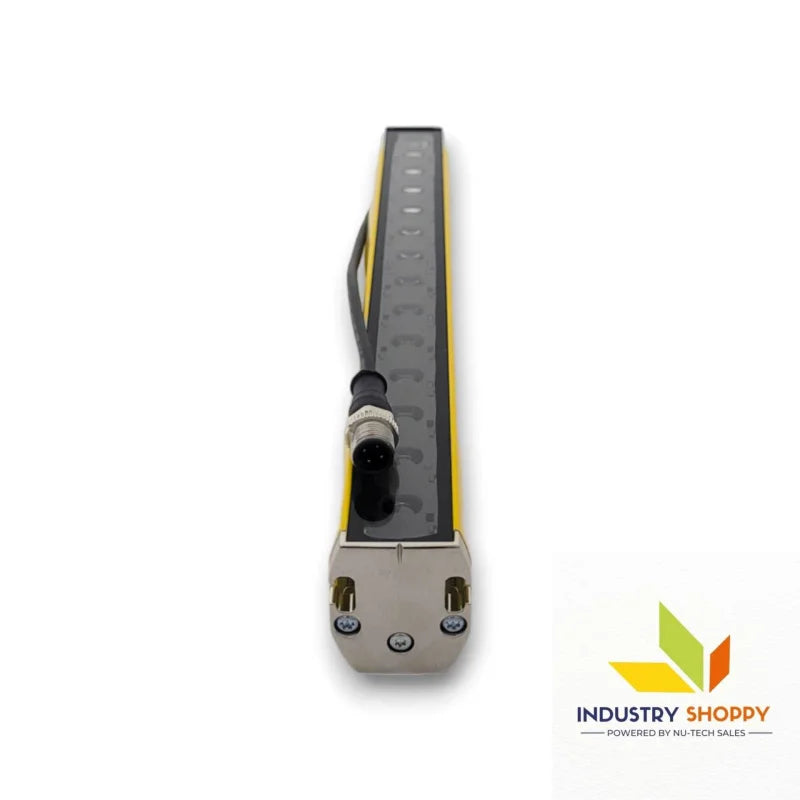

Leuze ELC110R30-300 Safety Light Curtain Receiver

Leuze ELC110R30-300 Safety Light Curtain Receiver

Part No. 72001303

The Leuze ELC110R30-300 Safety Light Curtain Receiver is engineered for robust hand protection in demanding industrial environments. With its Type 4 safety rating according to IEC/EN 61496, this receiver guarantees top-level performance in hazardous machine zones. The 30mm resolution ensures precise detection of hands or objects, while its 300mm protective field height covers a wide area effectively.

Its optical synchronization between transmitter and receiver reduces wiring complexity, simplifying installation. The device offers reliable OSSD outputs and quick response times of 4.7ms, enhancing both safety and productivity. Designed for endurance, it holds a 20-year mission time under EN ISO 13849-1 standards.

Built with a durable aluminum housing and sealed to IP65 protection, the ELC110R30-300 withstands harsh conditions. It also meets SIL 3 and PL e safety requirements, ensuring peace of mind in critical applications. Whether you're safeguarding personnel at conveyors, robot cells, or press lines, this light curtain delivers reliable, efficient machine guarding.

Key features :-

Applications :-

• Hand Protection: Ensures operator safety by detecting hand intrusions in hazardous machine areas.
• Access Protection: Prevents unauthorized or unsafe access to restricted zones on industrial equipment.
• Point of Operation Guarding: Provides reliable protection at machinery danger points during active operation.
• Automated Equipment Safety: Safeguards personnel in robot cells, conveyor systems, and automated production lines.
• Packaging Machine Safety: Secures openings and ensures compliance in packaging, sealing, and filling stations.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
