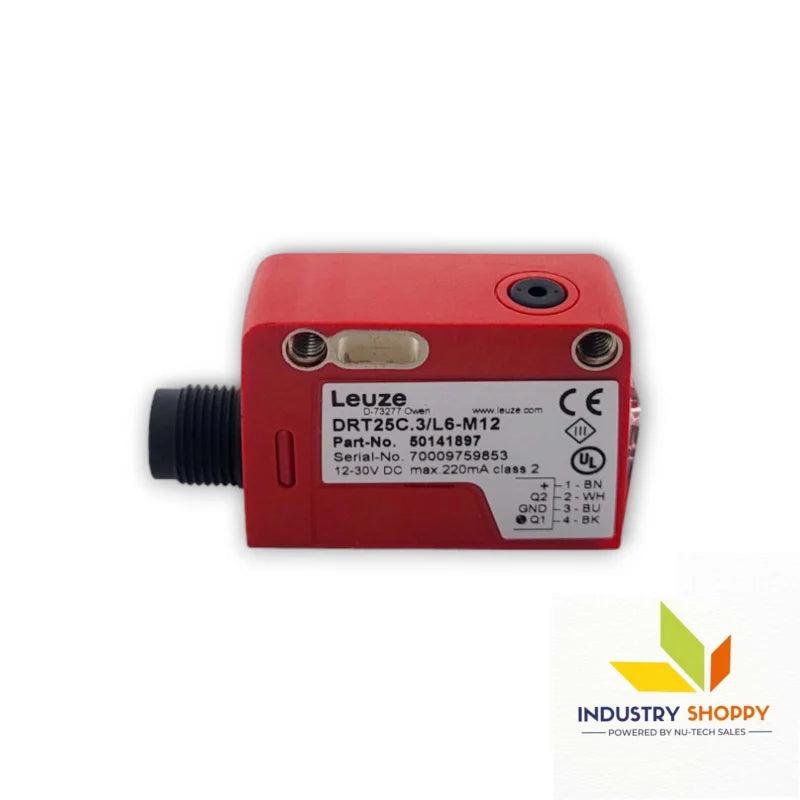

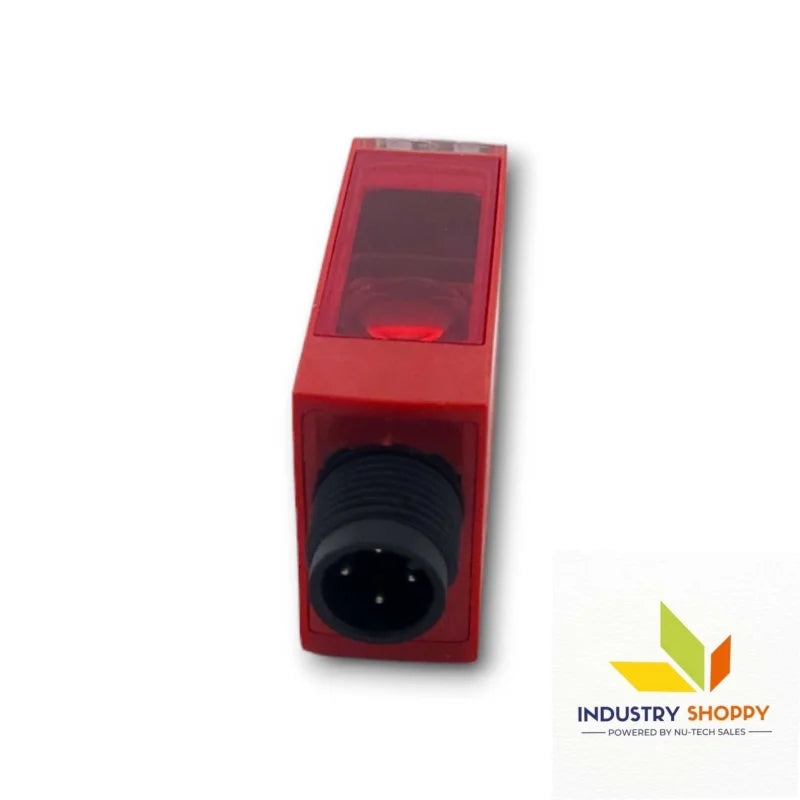

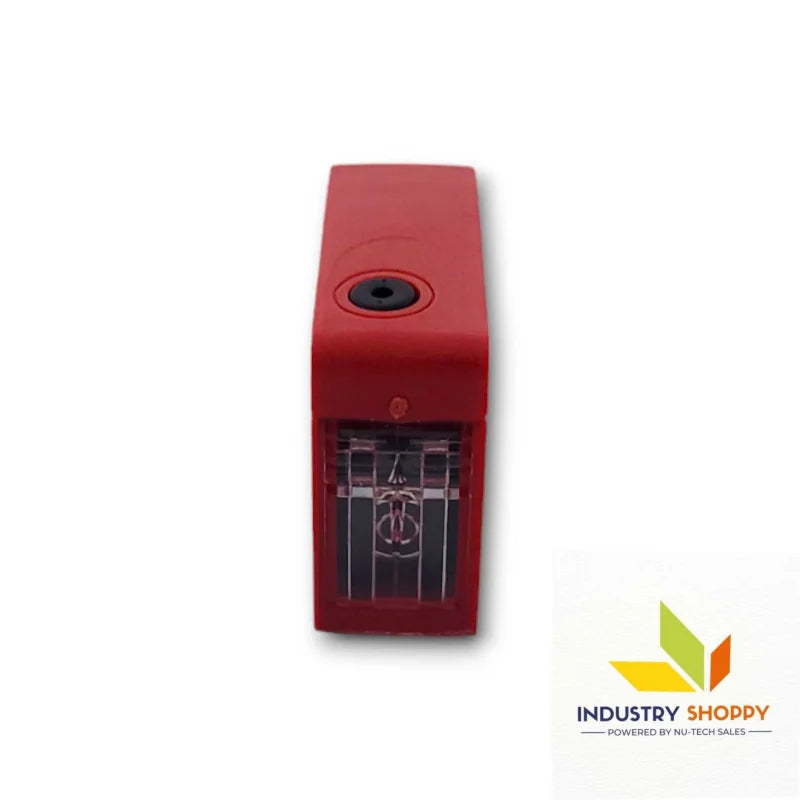

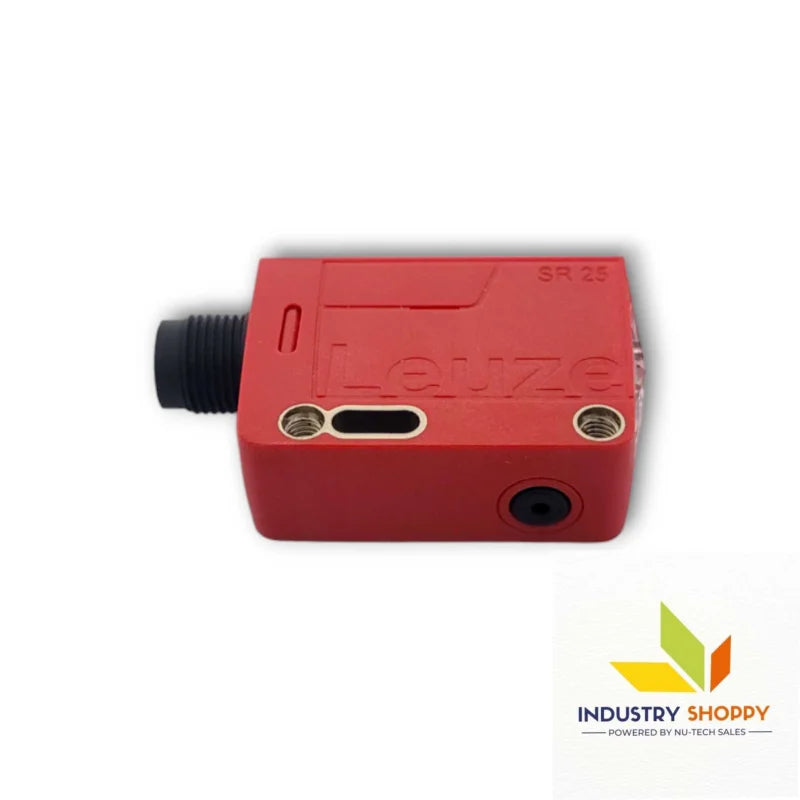

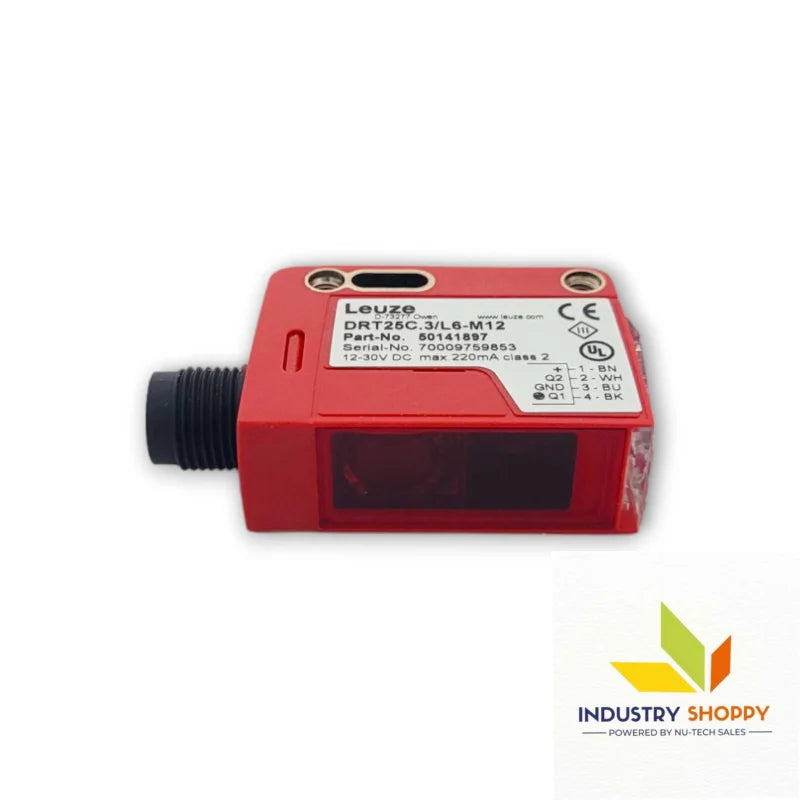

Leuze DRT25C.3/L6-M12 Photoelectric Sensor

Leuze DRT25C.3/L6-M12 Photoelectric Sensor

The Leuze DRT25C.3/L6-M12 sensor, part number 50141897, is a high-performance sensor from the advanced DRT25C series. It operates on the reference teach on background principle, ensuring precise and reliable detection for a variety of industrial applications.

Key Features:

• Part Number: 50141897
• Model Number: DRT25C.3/L6-M12
• Series: DRT25C
• Operating Principle: Reference teach on background
• Operating Range: 0.05 to 0.2 meters (max. distance to reference surface)
• Adjustment Range: 50 to 200 mm
• Light Source: Red LED with a wavelength of 645 nm
• LED Group: Exempt group (in accordance with EN 62471)
• Protective Circuit: Polarity reversal protection, short circuit protected
• Supply Voltage: 12 to 30 V DC, including residual ripple
• Residual Ripple: 0 to 15% from UB
• Open-Circuit Current: 0 to 40 mA
• Number of Digital Switching Outputs: 2
• Switching Element: Transistor, push-pull
• Switching Principles: IO-Link, light switching (PNP), dark switching (NPN)
• Switching Frequency: 750 Hz (500 Hz at Teach level 1)
• Response Time: 0.66 ms
• Readiness Delay: 300 ms
• Type: IO-Link
• COM Mode: COM3
• Minimum Cycle Time: COM3 = 0.4 ms
• Specification: V1.1
• Device ID: 2140
• SIO-Mode Support: Yes
• Function: Signal OUT, voltage supply

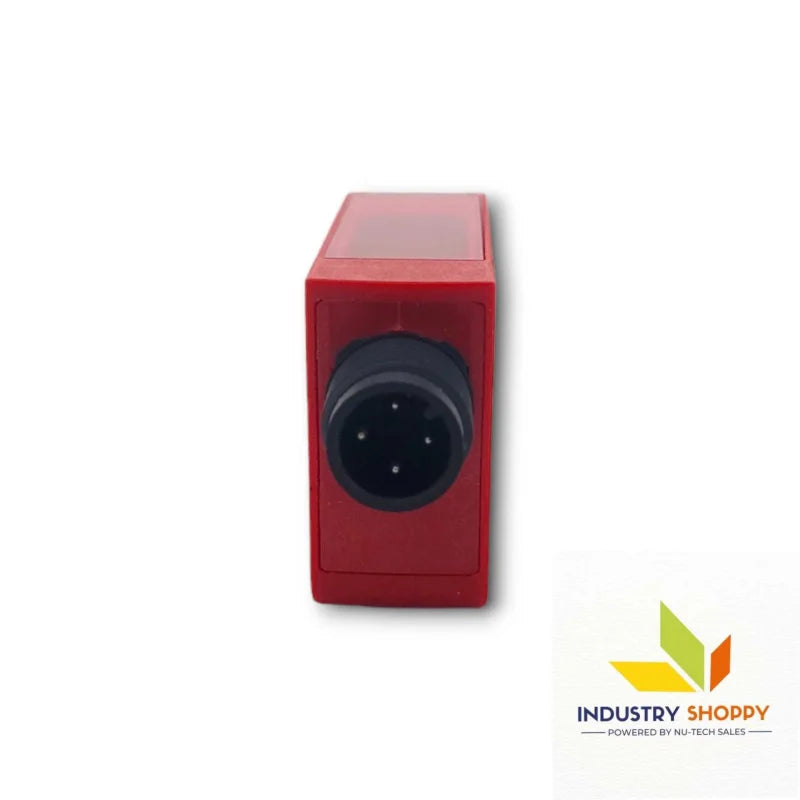

• Type of Connection: Connector, M12 male with 4 pins, A-coded
• Material: PUR
• Dimensions (W x H x L): 15 mm x 42.7 mm x 30 mm
• Housing Material: ABS plastic with a plastic lens cover
• Housing Color: Red
• Type of Fastening: Through-hole mounting with M4 thread, via optional mounting device
• Compatibility of Materials: ECOLAB
• Type of Display: LED
• Operational Controls: Teach button for teach-in on reference surface
• Ambient Temperature (Operation): -10 to 50 °C, temperature compensation ±15°C
• Ambient Temperature (Storage): -40 to 70 °C
• Degree of Protection: IP67, IP69K
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2

Application: The Leuze DRT25C.3/L6-M12 sensor is designed for demanding industrial environments, providing reliable performance and versatile connectivity options. Its robust design, coupled with advanced detection capabilities, makes it ideal for a wide range of applications.

Technical Precautions:

• Ensure proper installation and secure connection to avoid any operational issues.
• Always handle the sensor carefully to prevent damage to the cable and sensor body.
• Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
• Maintain the sensor within the specified operating temperature range for optimal performance.
• Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.
